Varenr. DRI0042

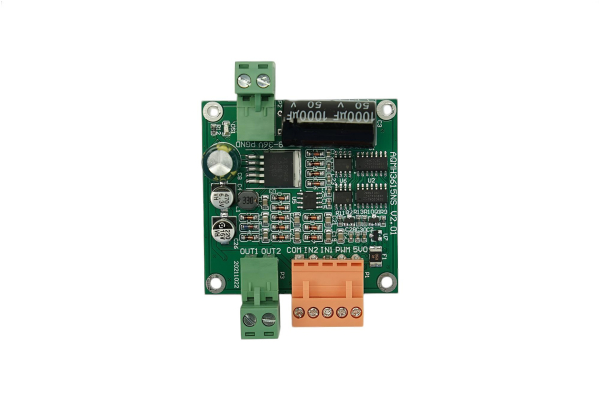

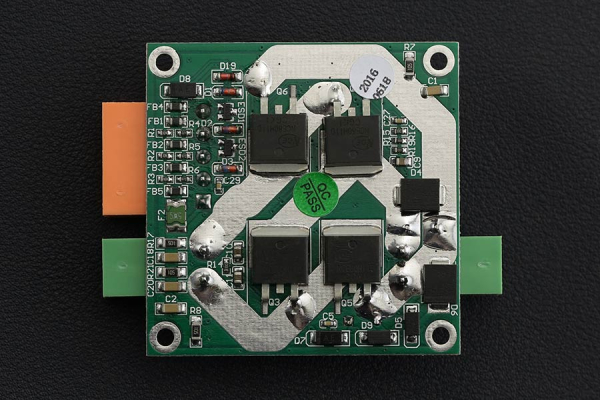

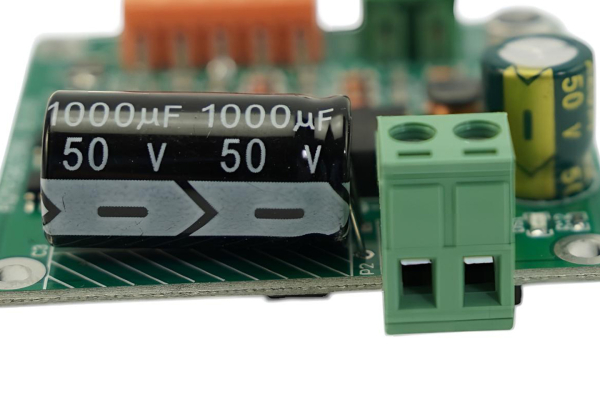

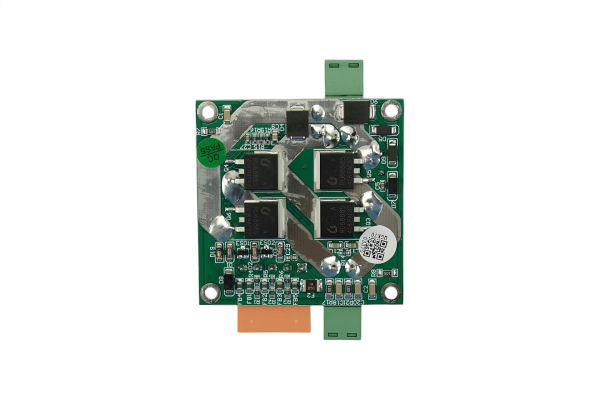

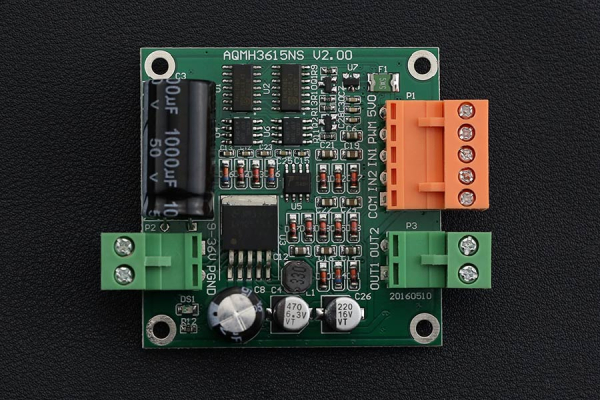

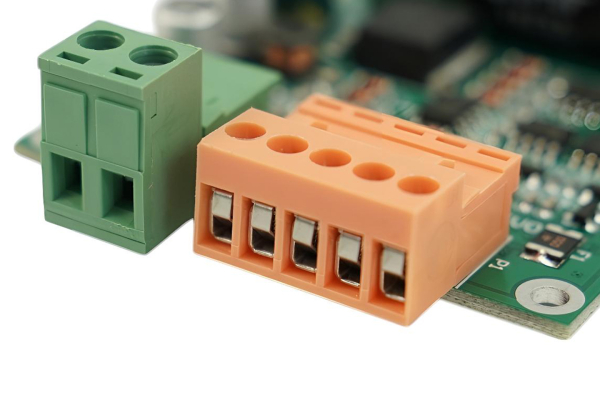

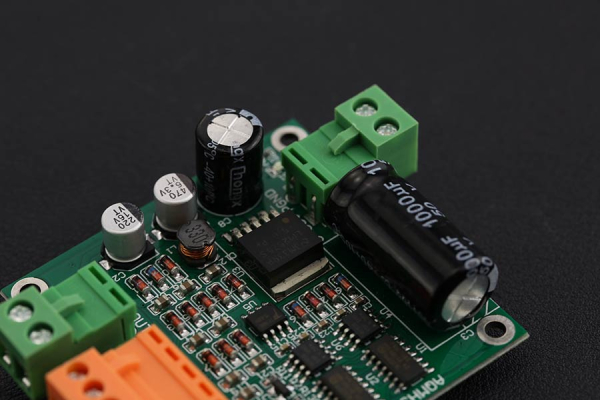

15A Single DC Motor Driver

287,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

287,50 DKK pr. stk. -
261,00 DKK pr. stk.
Spar 9%
235,00 DKK pr. stk.
Spar 18%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.


Specification

  • Voltage supply: DC 12 ~ 36 V
  • Voltage supply limit: 6.5 ~ 40 V
  • Control signal Level (Compatible 3.3V/5V)
    • High: DC 2.0 ~ 5.5 V
    • Low: DC0 ~ 0.8 V
  • Maximum continuous operating current:
    • 12A (no heat sink)
    • 15A (with simple heat sink)
    • 20A (with Thick Heat Sink/ Cooling System)
  • Peak current: 110 A
  • Speed control: PWM
  • Minimum valid Pulse Width: 200 ns
  • Maximum Output Current @5V: 500 mA
  • Working Temperature: -25 ~ 85 °C
  • Mounting Hole: M3
  • Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
  • Weight: 42g

Shipping List

  • 15A Single DC Motor Driver x1
