Varenr. SEN0313

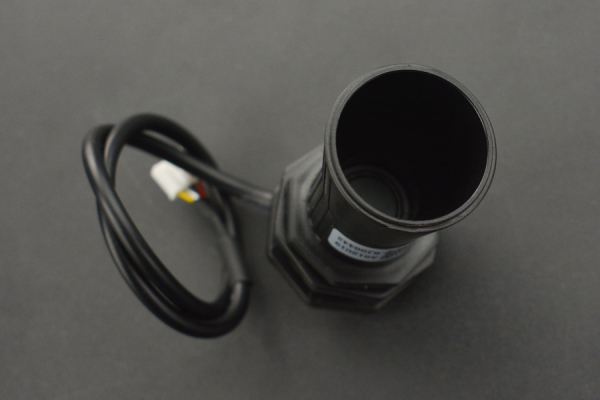

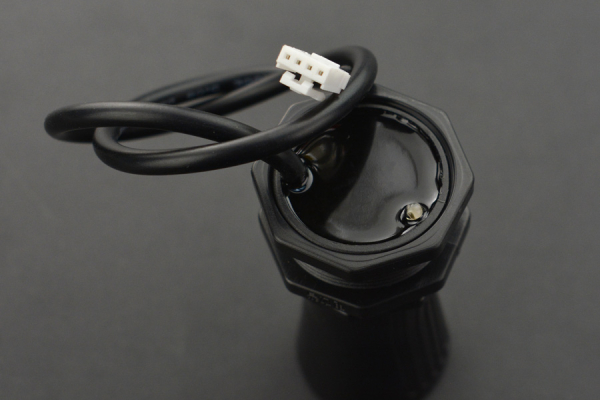

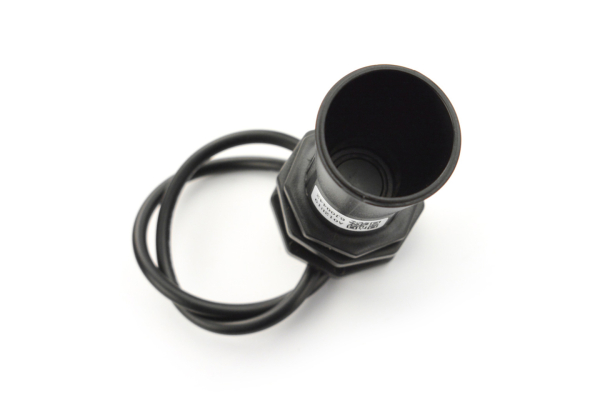

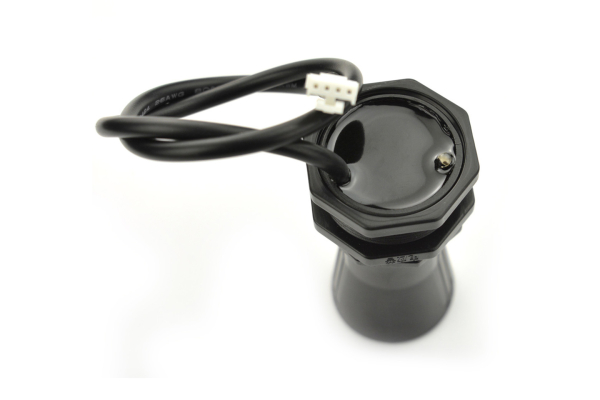

A01NYUB Waterproof Ultrasonic Sensor

391,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

391,25 DKK pr. stk. -
364,00 DKK pr. stk.
Spar 7%
336,00 DKK pr. stk.
Spar 14%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This A01NYUB Waterproof Ultrasonic Sensor features farther monitoring distance, wider detection range and a certain penetration power(smog, dust). The product comes with a removable bell-mouth and the effective measuring distance is 7.5m when the bell-mouth installed.

    Connection with Arduino

    The ultrasonic sensor adopts closed probe of transmitter & receiver, waterproof and dustproof. All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With 9600bit/s band rate, the sensor can easily communicate with upper-host or other MCU, which greatly shortens the developing cycle for users.

    Connection with Raspberry Pi

    Use the sensor with Arduino controller to build up your projects, such as backing car annunciator, obstacle avoidance robot, object approaching detection etc.

    Beam Directionalities Diagram

    Dimension Diagram

    Specification

    • Operating Voltage: 3.3~5V
    • Average Current: <15mA
    • Blind Zone: 28cm
    • Detection Range (Flat Object): 28-750cm
    • Output: UART
    • Response Time: 100ms
    • Probe Center Frequency: 40K±1.0KHZ
    • Operating Temperature: -15~60℃
    • Storage Temperature: -25~80℃
    • Sensing Angle: with bell-mouth: 55º
    • without bell-mouth: 40º
    • Waterproof Grade: IP67
    • Resolution: 1mm

    Shipping List

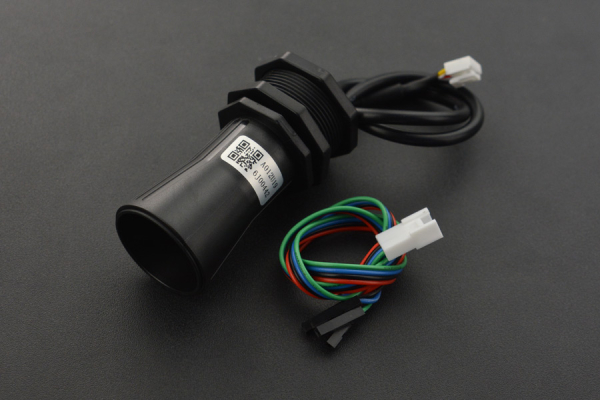

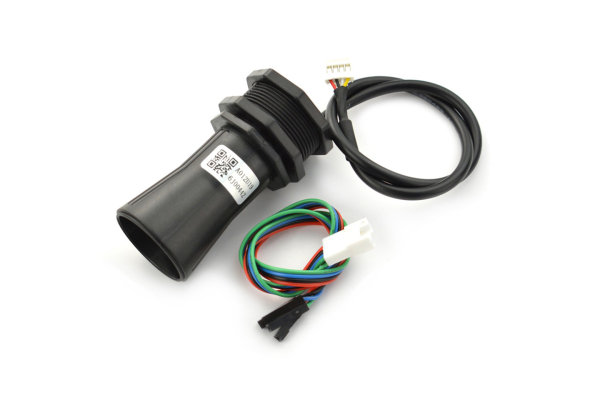

    • A01NYUB Waterproof Ultrasonic Sensor x1
    • PH2.0-4P Connector x1
