DFRobot

Varenr. DFR0126

Audio Analyzer Module

276,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

276,25 DKK pr. stk. -
250,00 DKK pr. stk.
Spar 10%
225,00 DKK pr. stk.
Spar 19%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

Project 1: How to Make Music IQ Led Lights with arduino board?

This Music IQ Led Lights with arduino board is an application based on an individually addressable LED strip.

The things you need to do this project:

Audio Analyzer*1

Analog sound sensor*2

RGB individually addressable LED strip *1

Beetle - The Smallest Arduino Microcontroller *1


Project 2: How to Make a Portable Toy Speaker?

This 3D printing portable toy speaker is made for fun on Valentine’s day. Now let’s share with you the making method.

The things you need to do this project:

Audio Analyzer*1
Analog sound sensor*1
3d printer*1

Documents

Introduction

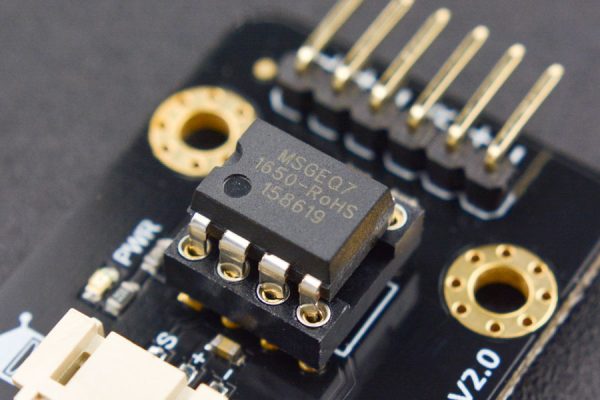

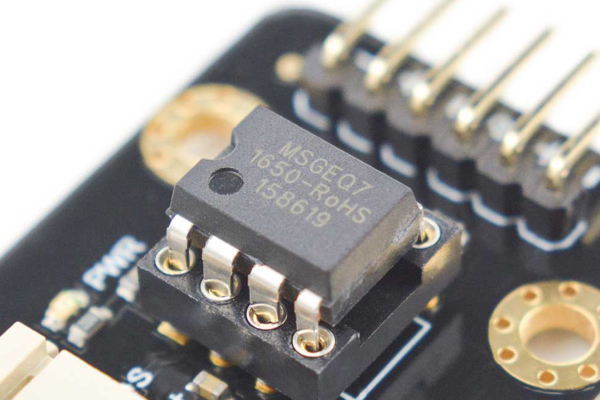

This Audio Analyzer module features the MSGEQ7 graphic equalizer display filter. It will give your Arduino ears. Sound is broken down into seven frequency bands and the peak level for each band can be read. The seven frequencies measured are as follows: 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.25kHz, and 16kHz.  This Audio Analyzer module can be used to create sound visualizers, detect patterns in music, or add sound activation to your microcontroller.

Audio Analyzer Module, Connection Diagram Connection Diagram

Specification

  • Voltage:5V

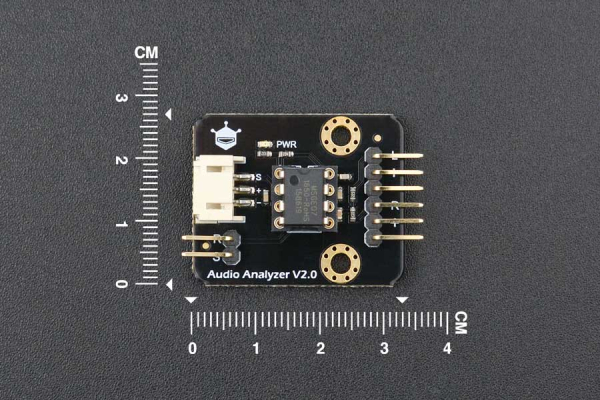

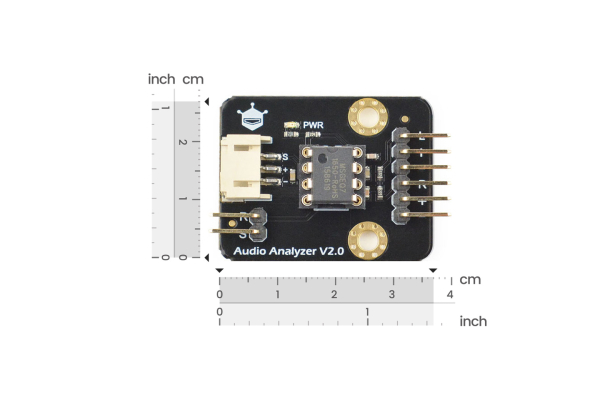

  • Size:30x20mm(1.18x0.79")
  • Weight: 5 grams

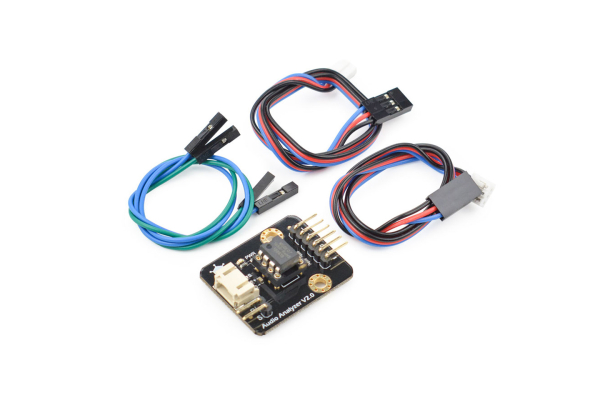

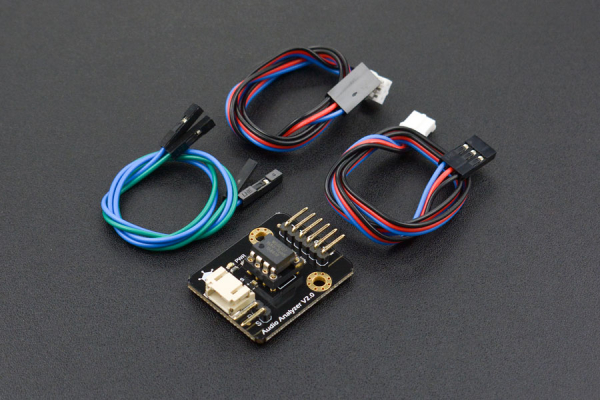

Shipping List

  • Audio Analyzer Module x1
  • Analog Cable x2
  • Digital Cable x1
