DFRobot

Varenr. TEL0002

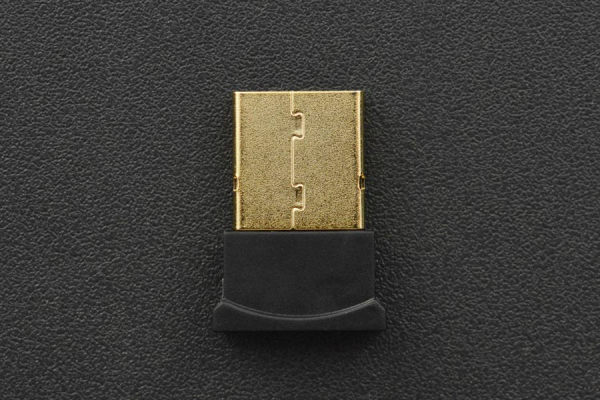

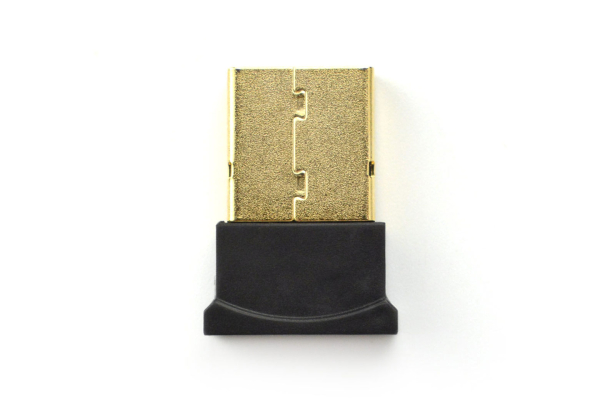

Bluetooth Adapter Mini

65,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

65,00 DKK pr. stk. -
57,00 DKK pr. stk.
Spar 12%
49,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    Bluetooth (Bluetooth) is a kind of wireless network transmission technology originally used to replace the infrared. Compared with infrared technology, Bluetooth can transmit data without targeting, transmission distance is less than 10 meters (infrared transmission distance of a few meters). In the signal amplifier with the help of communication distance and even up to 100 meters. Bluetooth technology is ideal for low power consumption of digital devices to share data with each other, such as mobile phones, handheld computers. Moreover, Bluetooth devices can transmit sound, such as Bluetooth headsets. Widely used Bluetooth specification version 2.0, mature, bandwidth is about 3Mbps very suitable for small file transfer (10MB below pictures, ring tones, e-books, manuscripts, etc.) to facilitate and speed have both.



    This device does not include any drivers or software, however, you shouldn't need any as it supports the native Windows Bluetooth stack (Windows XP, Vista, 7). Plug it in and Windows should handle the rest.



    Please note: Many of these modules have been found to have the same Bluetooth address. If you're simply trying to connect from your computer to a cell phone or headset, these will work great. If you're attempting to attach multiple modules to a computer, the computer will not be able to address both modules at the same time.

    JavaScript display

    Product Name Bluno Bee - Turn Arduino to a Bluetooth 4.0 (BLE) Ready Board
    Bluetooth 2.0 Module V3 For Arduino
    Bluetooth 2.0 Bee Module For Arduino
    Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle
    Bluetooth Adapter Mini
    SKU TEL0073
    TEL0026
    TEL0023
    TEL0087
    TEL0002
    BLE Chip
     TI CC2540
    CSR BC417143
    CSR BC417143
     TI CC2540

    Frequency
    2.4GHz
    2.4 ~ 2.48GHz unlicensed ISM band
    2.4 ~ 2.48GHz unlicensed ISM band
    2.4GHz
    2.4 ~ 2.48GHz FHSS
    Transfer rate
    1Mbps GFSK
    Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps
    Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps
    1Mbps GFSK
    3Mbps
    BLE protocol
    V4.0
    V2.0 + EDR
    V2.0 + EDR
    V4.0
    V4.0
    Modulation
    GFSK
    GFSK
    GFSK
    GFSK
    FHSS
    Power consumption
    10.6mA average, ready mode: 8.7mA


    10.6mA average, ready mode: 8.7mA

    Sensitivity
    -93dBm
    ≤-84dBm
    ≤-84dBm
    -93dBm
    ≤-84dBm
    Working Voltage 3.3V
    +3.5 V ~ +8 V DC and 3.3V DC/50mA
    3.3V
    3.3V

    Operating temperature
     -40 ℃ ~ +85 ℃
    -20 ℃ ~ +55 ℃
    -20 ℃ ~ +55 ℃
    -10 ℃ ~ +85 ℃
    -20℃ ~ +55℃
    Transmission distance
    30m
    20 ~ 30m
    20 ~ 30m
    10 ~ 20m
    <10m
    Dimension
    32*22mm
    40*20*13mm
    32*24*9mm
    32mm * 16mm
    20*16*8mm
    Weight (g)
    10
    10
    12
    10
    10
    AT command to debug the BLE





    master-salve machine switch





    Transparent transmission





    Wireless programming
    √ (Available for Bluno series)




    iBeacons





    BLE HID





    Mobile App Control





    Key Featuressupport Android and IOS applications,open source code,suitable for secondary development by the user
    Compatible with APC220 communication interface, can be directly used in I/O Expansion Shield, Romeo, XBoard and etc,.
    It can be plugged into the Arduino controller using the XBEE base for Bluetooth wireless control.
    Standard USB interface. Support for firmware update via USB. Install Arduino UNO USB driver, default host mode.
    USB2.0 standard interface. supports the native Windows Bluetooth stack.

    Specification

    • Bluetooth standard 4.0 * USB Interface: USB2.0 standard
    • In the 2.4GHz to 2.483GHz frequency band operation between the use FHSS (Frequency Hopping Spread Spectrum) technology
    • Effective coverage: Support for 20m ultra-long transmission distance
    • Intuitive software user interface, without complicated settings
    • For Win7, Win8, Win10, WinXP, Mac OS X operating system.
    • Sensitivity <-85 dBM
    • Data transfer rate up to 3M bps Features
    • PC / Mac: Bluetooth dial-up Internet access (subject to mobile phones and other devices with Bluetooth)
    • PC: Bluetooth wireless local area network, which can make eight sets with small self-contained Bluetooth wireless computer network, this feature can also be Bluetooth wireless base station through a Bluetooth connector or plug the computer to the Internet (to be linked base station or computer must have been connected to the Internet)
    • PC: Bluetooth wireless fax (computer be equipped with fax software)
    • PC / Mac: Bluetooth File Transfer
    • PC / Mac: Bluetooth wireless data synchronization
    • PC: Bluetooth Virtual Serial Port
    • PC: Bluetooth wireless printing
    • PC / Mac: Bluetooth Human Interface (Bluetooth mouse and Bluetooth keyboard) * Bluetooth serial port with the computer, microcontroller, Basic Stamp 2, DF-Bluetooth Bluetooth module, Roboduino or Arduino controller connection, to achieve Bluetooth wireless remote control.

    Shipping List

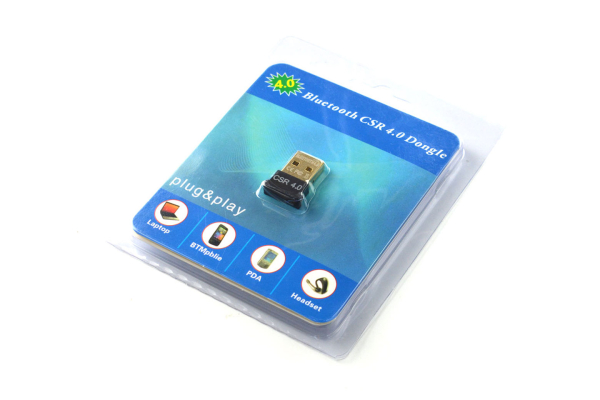

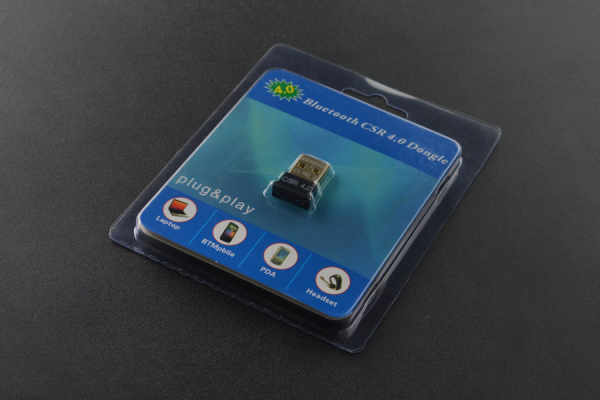

  • Bluetooth Adapter Mini x1
