DFRobot

Varenr. DFR0370

CAN BUS Shield for Arduino

328,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

328,75 DKK pr. stk. -
301,00 DKK pr. stk.
Spar 8%
274,00 DKK pr. stk.
Spar 17%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

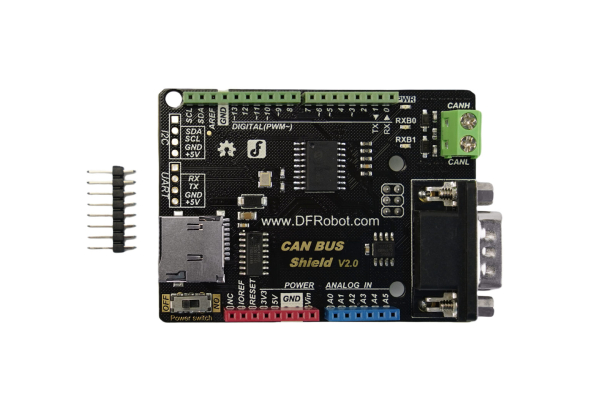

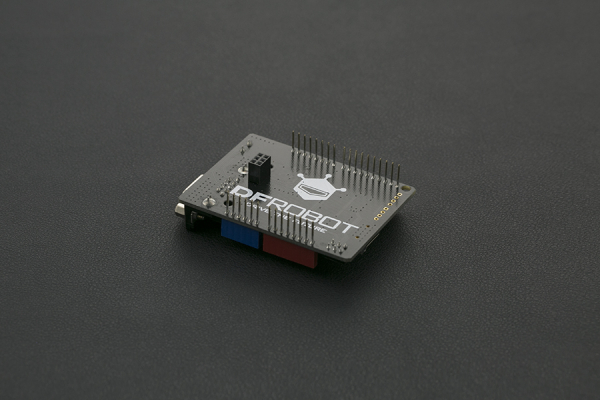

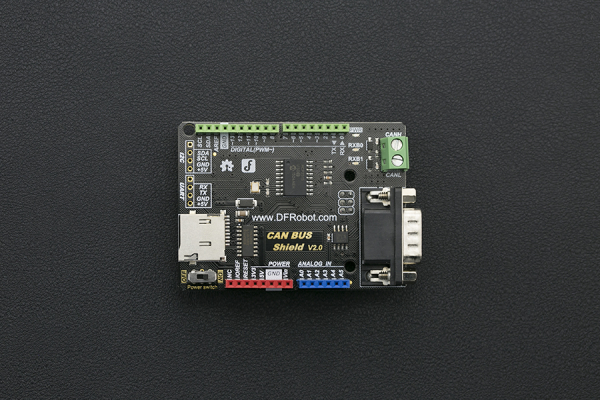

This is an Arduino Can Bus shield.  It is compatible with the Arduino standard interface and can be stacked on an Arduino UNO, Leonardo or MEGA board.

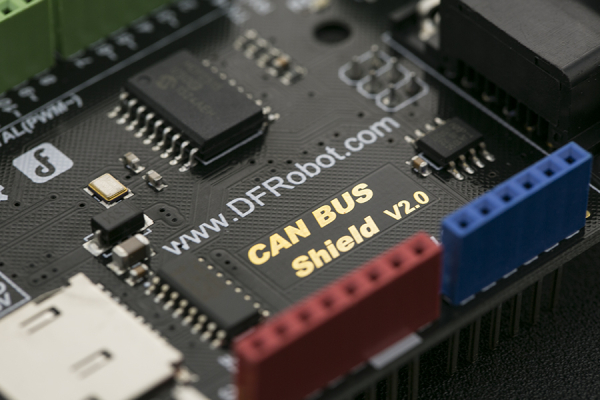

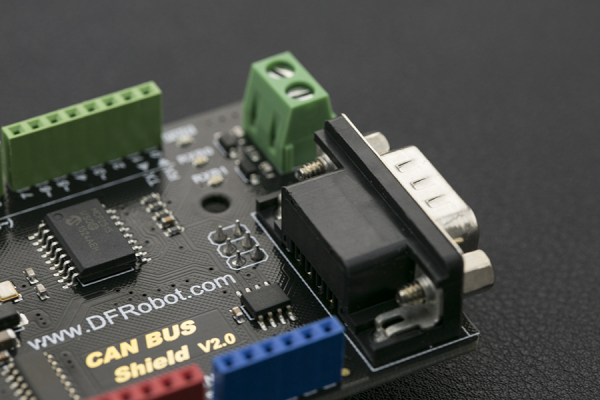

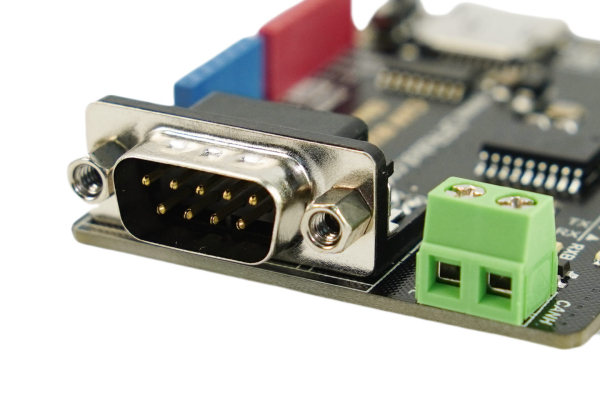

The shield integrates an MCP2515 CANBUS chip on the shield and has a CAN-BUS transceiver function. With an on-board DB9 and CAN-BUS connector you can choose a suitable port according to your host device.

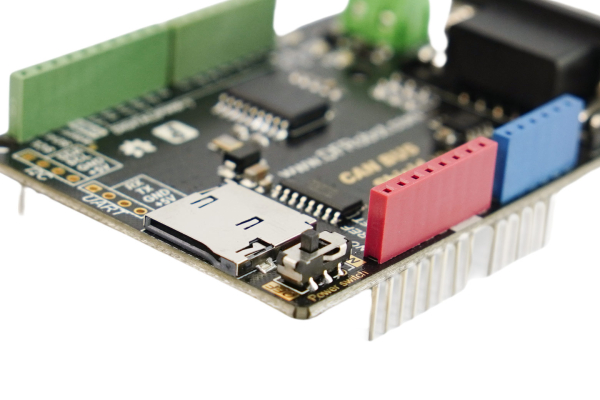

There is also an integrated MicroSD socket for data storage - a perfect solution for data logging applications.

What is Canbus?  Controller Area Network (CAN bus) is a vehicle bus standard designed to allow microcontrollers and devices to communicate with each other in applications without a host computer. It is a message-based protocol, designed originally for multiplex electrical wiring within automobiles, but is also used in many other contexts.

Features

  • Supports standard frame, extended frame transmitting and receiving
  • Supports two reception methods: Rotational and interrupt detection
  • Supports UART, i2C and DB9 terminal interfaces
  • Supports SD card data storage
  • Supports Arduino mainboard power supply or DB9 power supply (Switch)

Specification

  • Chip: MCP2515
  • Power supply: 3.3 ~ 5V Arduino board power supply or DB9 interface power supply
  • Dimension: 76x54x19 (mm)/ 2.99x2.12x0.75 inches
  • Weight: 40g

Shipping List

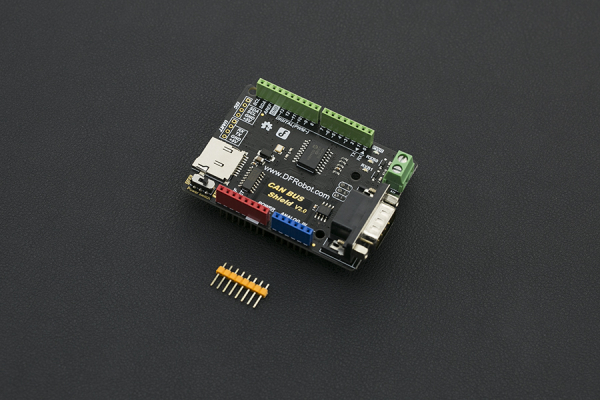

  • CAN-BUS Shield V2.0 x1
  • 8-Pin header x1
