Varenr. SEN0238

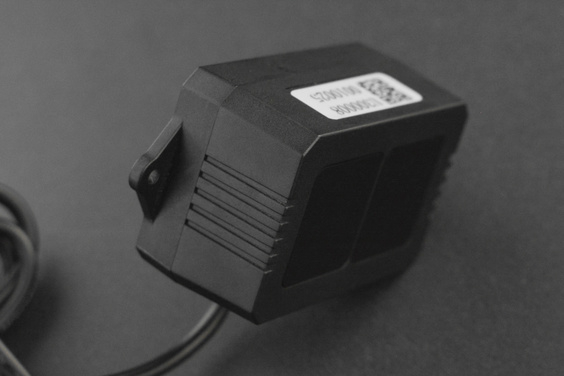

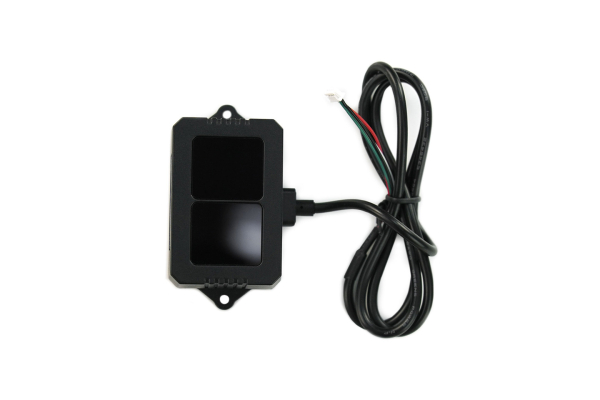

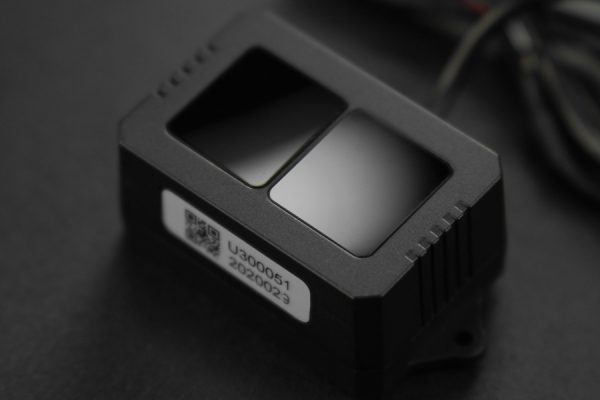

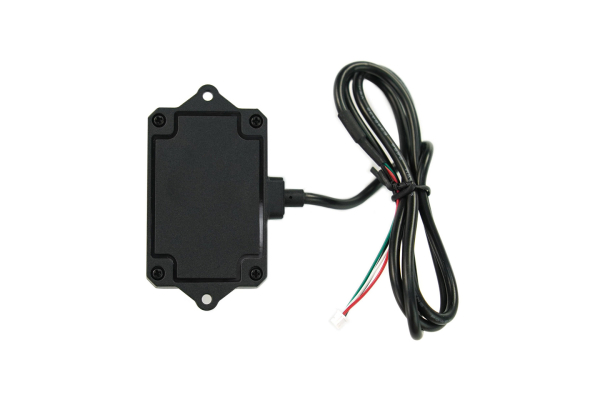

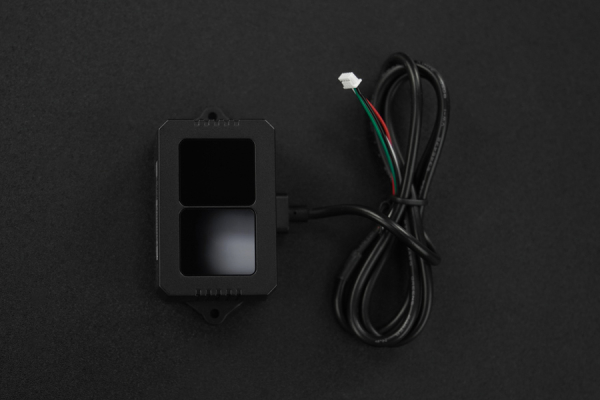

DE-LIDAR TF02-Pro (ToF) Laser Rangefinder (40m)


På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1.077,50 DKK pr. stk. -
1.038,00 DKK pr. stk.
Spar 4%
999,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.



  • Laser Radar Selection Guide (Part 2)
    2020-03-13 16:43:43


  • Product Manual
  • Datasheet
  • Display Program
  • Arduino Developer Guide
  • FAQ List
  • Introduction

    DE-LIDAR TF02-Pro is a newly developed product based on the widespread application experience of TF01. It is a unidirectional laser rangefinder, which is based on ToF (Time of Flight) technology. It is comprised of particular optical and electrical devices that make it stable, high sensitivity, and high precision.  ToF is the abbreviation for Time of Flight. This is a distance measurement method that measures the time that it takes for an object. The distance value between object and sensor is easy to get by calculating the time difference or phase difference between emission and reflection, and so does the in-depth information.

    Figure 1: TF02-Pro Optical Stimulation Light Path

    The protection design of the TF 02 is based on the IP 65 level, which prevents it from dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without interference from the temperature, humidity, light, electronics, and airflow. High sensitivity, measuring distance up to 40 meters, accuracy in cm level. Scanning frequency up to 1000Hz, real-time detection of distance with a 100 Hz/second refresh rate for more accurate data. TF02-Pro has a complete system, containing a protective shell made of materials with a high transmittance of infrared, which doesn't affect the optical performance.

    Table 3: Optical Properties

    Figure 2: Application Illustration

    Note: the side length of detecting range is not equal to the object resolution at the corresponding distance.


  • High sensitivity, and able to measure as far as 40 meters
  • High-speed measurement with a maximum sampling frequency of 100Hz
  • Excellent anti-ambient light usability (operable under 100kLux ambient light)
  • Protection Grade reaches IP65
  • Anti-corrosive against pesticide
  • Small in size and light
  • Specification

  • Detection Range: 0.1-40m
  • Accuracy: ±5cm(0.1~5m),±1%(5~40m)
  • Measuring Speed: 1-1000Hz Adjustable
  • Protection level: IP65
  • Light Resistance: Operate under ambient light of 100 Klux
  • Power: DC 5V~12V
  • Power: <1 W
  • Interface: UART
  • Weight: 50g
  • Shipping List

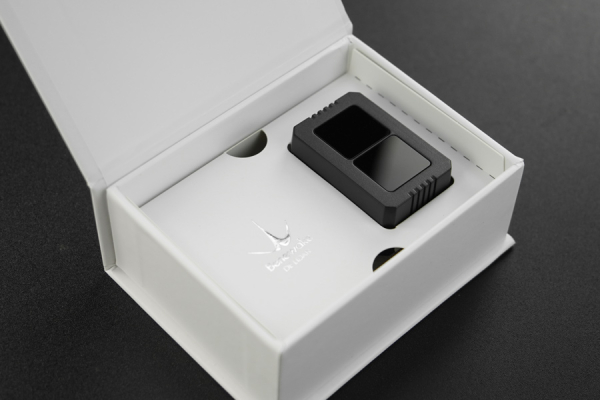

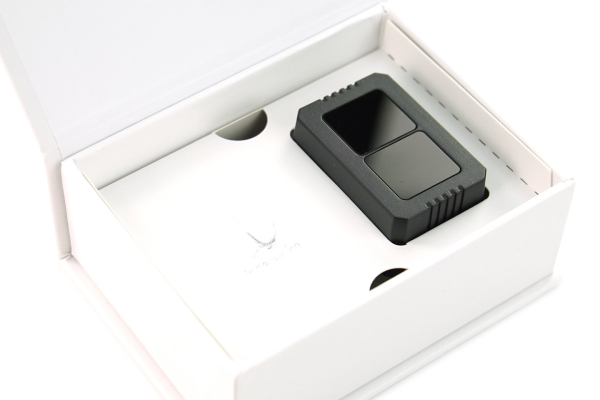

    DE-LIDAR TF02-Pro (ToF) Laser Rangefinder (40m) x1
