Name: ECell: Breadboard-Plugin Components Pack
Brand: DFRobot
SKU: KIT0098
Price: 301.25 DKK
Availability: OutOfStock

Mængderabat

ECell: Breadboard-Plugin Components Pack

DFRobot

Varenr. KIT0098

ECell: Breadboard-Plugin Components Pack

301,25

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	301,25 DKK pr. stk.	-
5 stk.	274,00 DKK pr. stk.	Spar 9%
10 stk.	248,00 DKK pr. stk.	Spar 18%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Documents

Wiki Doc

Introduction

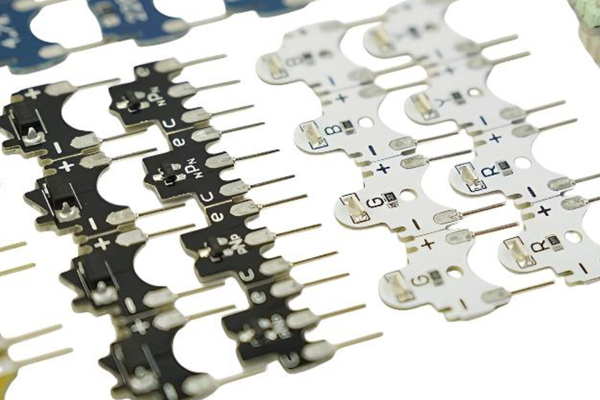

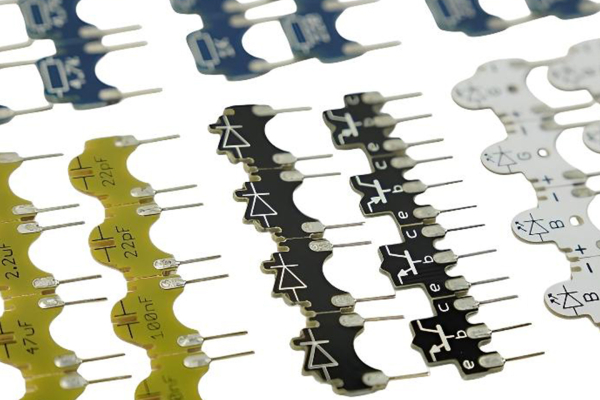

Breadboard-Plugin Components Pack is a new kit designed for breadboard experiment. It provides many kinds of components, such as resistors, capacitors, diodes, transistor .etc. The module pins are using gold-plating technology, solid and durable. It could be plugged on the breadboard directly. easy, reliable and reusable.

This innovative approach will solve the following issues caused by using DIP type of components:

Hard to read the value (Resistor color codes)
Severe deformations of the pin after used, non-reusable, not environment-friendly
The pin diameter is too thin or too thick, poor match with the breadboard hole
Confused the order of transistor “e”, “b”, “c” pins
Usage problem: Most of sensors and actuators require 3 interfaces: Signal/VCC/GND, you have to use the jumper wire for the connection, messy and unreliable.

Breadboard-Plugin is designed by Maker LeoYan, produced and sold by DFRobot.
Note: Breadboard is not included in the pack.

Features

Easy to Recognize : Resistance value, capacitance values, positive/negative polaron and pin functions are marked clearly.
Easy to Learn : The circuit symbol is clearly visible, directly match the circuit diagram
Easy to Use : Direct-plug pin
Easy to Plug/unplug : The 0.64mm diametral pin matches the breadboard hole perfectly
High-Reliability : ENIG technology, the circuit connection is reliable and durable
Environment-Friendly : Reusable and Environment-friendly

Specification

Resistor: 220R，1K，4.7K，10K
Capacitor: 22pF@50V，100nF(0.1uF)@50V，47uF@10V
LED: Red, Yellow, Blue, Green
Diode: If=1A, Vfm=0.7V, Vr=40V
Transistor-NPN: Vceo=45V, Ic=500mA, hFE=400
Transistor-PNP: Vceo=-45V, Ic=-500mA, hFE=400

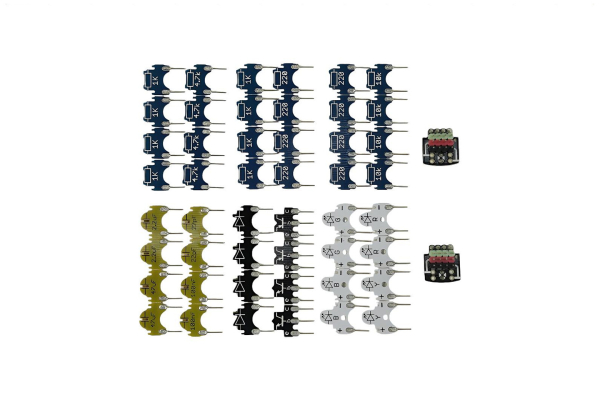

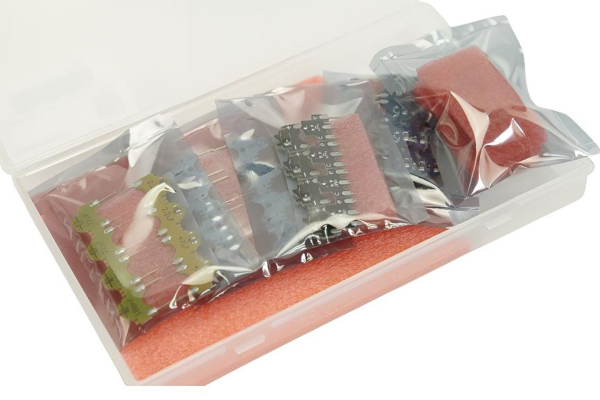

Shipping List

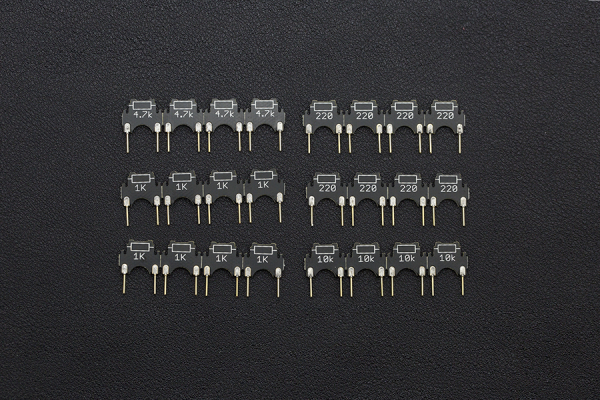

Resistor 220R x4
Resistor 1K x4
Resistor 4.7K x4
Resistor 10K x4

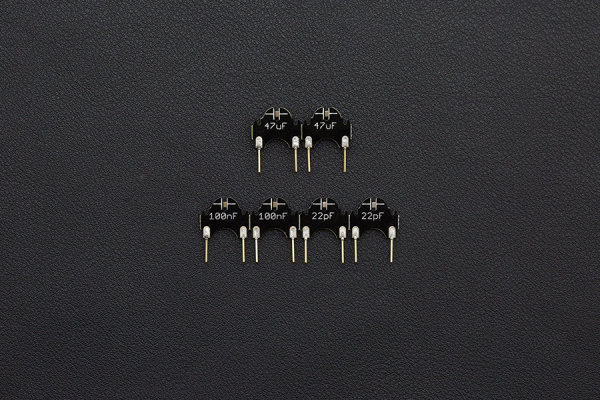

Capacitor 22pF x2
Capacitor 100nF x2
Capacitor 47uF x2

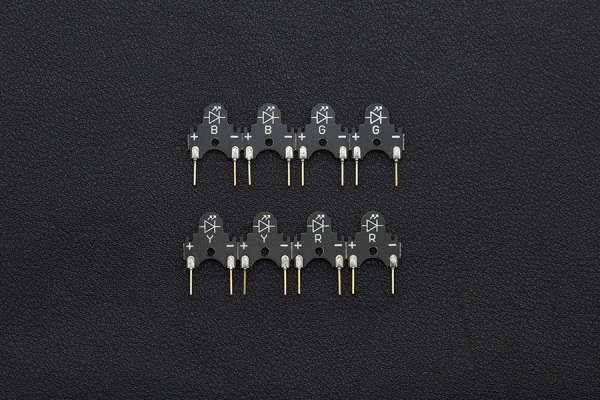

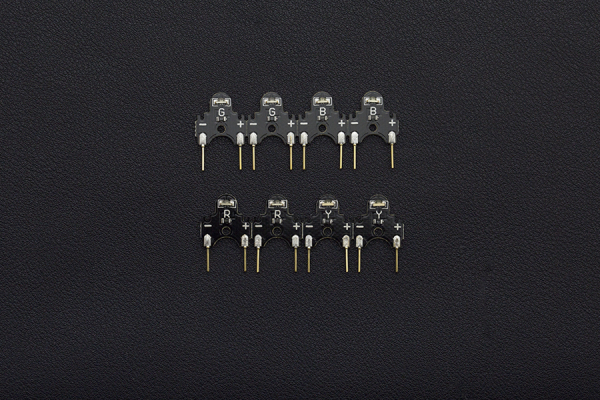

LED--R x2
LED--Y x2
LED--B x2
LED--G x2
Diode x4
NPN transistor x2
PNP transistor x2

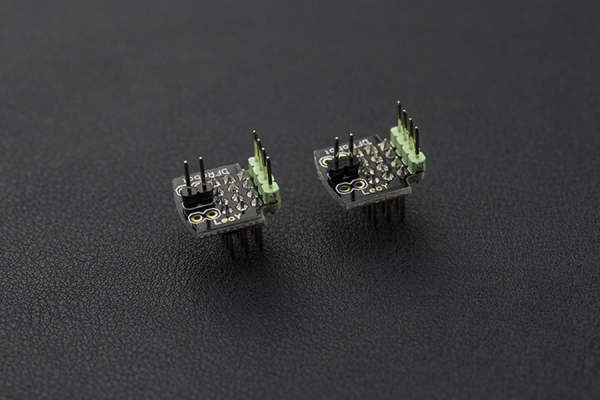

Breadboard PluginConnector x2
