Varenr. TEL0092

ESP8266 WiFi Bee (Arduino Compatible)


På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

97,50 DKK pr. stk. -
85,00 DKK pr. stk.
Spar 13%
74,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.


Project 1. How to make a Heart Rate Monitor
This project makes a Heart Beat Detection and Monitoring System using Arduino that will detect the heart beat using the Pulse Sensor and will show the readings in BPM (Beats Per Minute).
Hardware needs:

Project 2. ESP8266 Project: Desktop Weather Station With WIFI

Hardware needs:

Project 4. ESP8266 Arduino Programming Tutorial - DFRobot.com

Hardware needs:
DFRduino UNO R3
Xbee USB adapter (FTDI ready)
IO Expansion Shield for Arduino (V6)
USB Cable A-B for Arduino
Mini USB cable



  • ESP32 Arduino Tutorial Overview
    2018-04-27 08:15:22

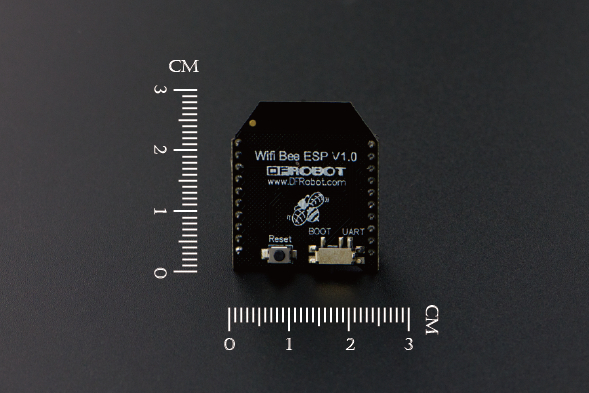

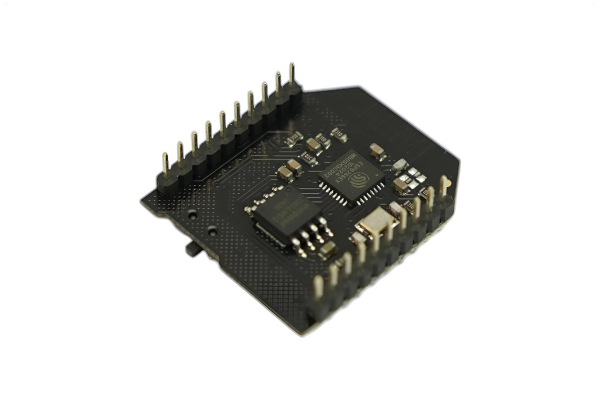

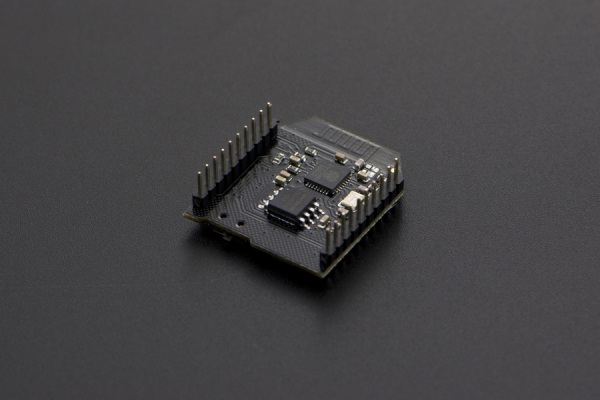

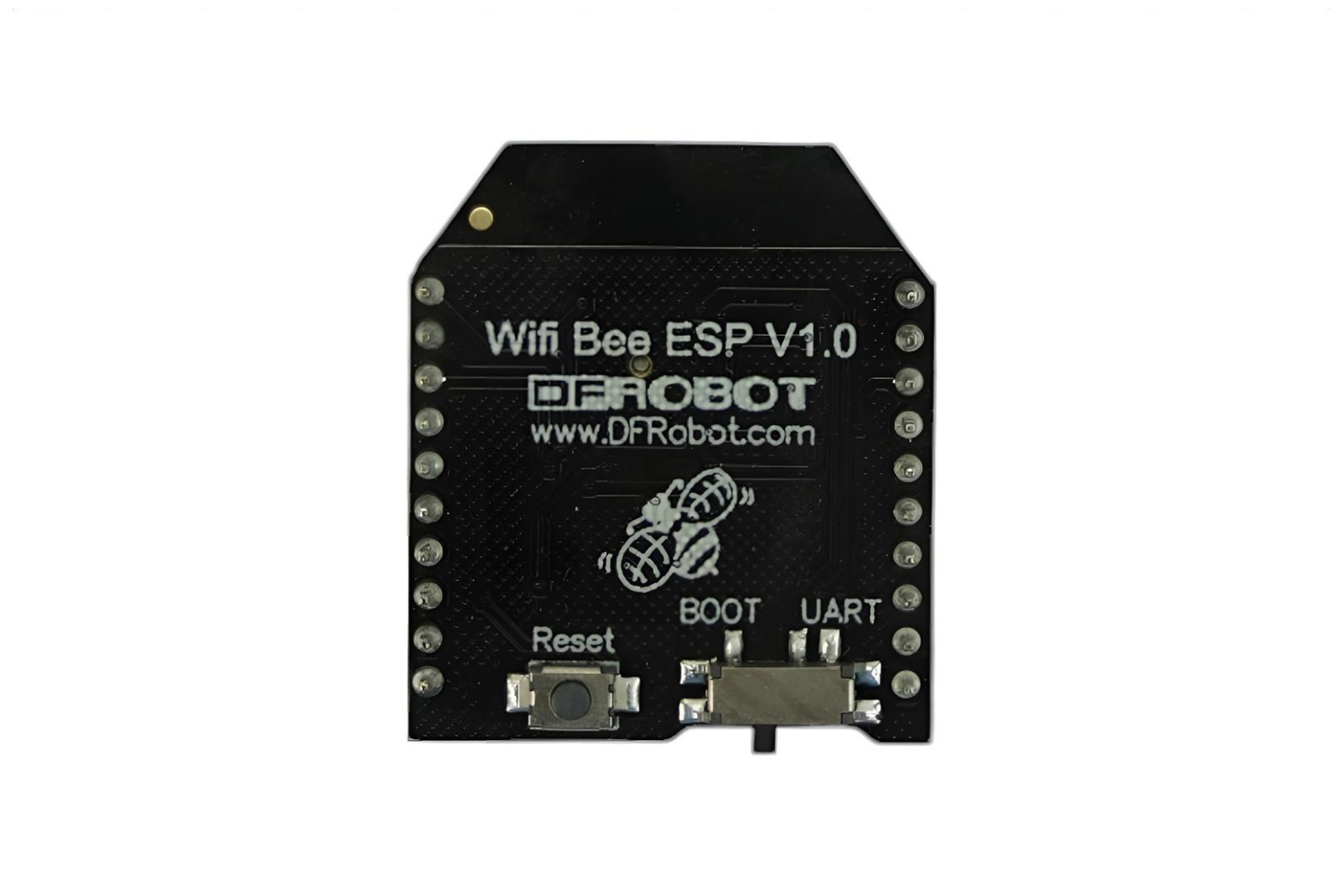

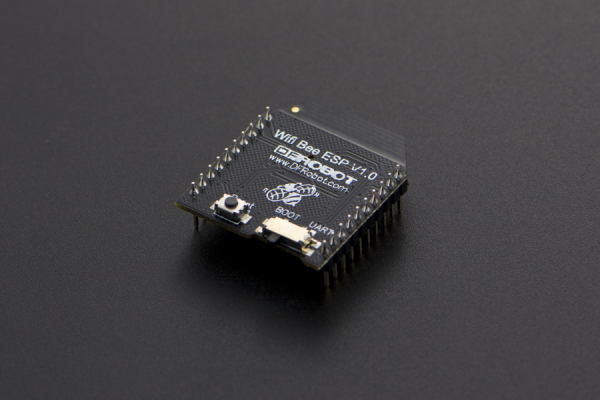

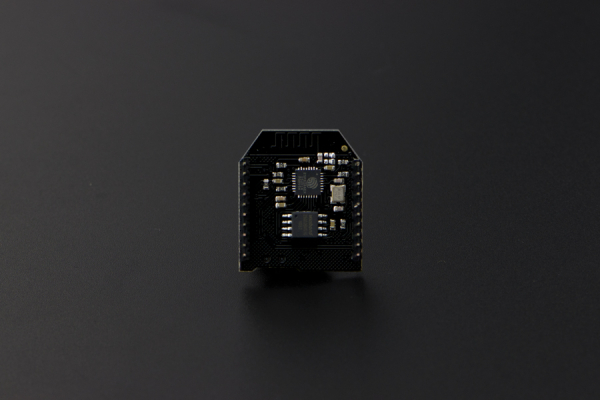

Wifi Bee-ESP8266 is a Serial-to-WIFI module using XBEE design in a compact size, compatible with XBEE slot, applicable to a variety of 3.3V single-chip system. It can be used for Arduino, wireless data transfer, remote control. On-board switch can be used to easily select the Startup module or Upgrade firmware.
ESP8266 arduino module has a powerful on-chip processing and storage capacity, built-in 32-bit processor, built-in Lwip protocol stack. Support AP+STA mode co-exist. And you could configure various parameters via AT commands.

Note: Since the STA mode which support the Server mode is not stable, we are working on that you could refer to the ESP8266 manual book to try.

Note: In order to configure this module, you will need an adapter or Xbee shield that lets you communicate with the module, before you can plug it and use on other modules. Compatible device: Xbee USB adapter (FTDI)

ESP8266 Tutorials:

ESP8266 micropython- Tutorial 1: Introduction

ESP8266 micropython- Tutorial 2: Micropython GPIO

ESP8266 micropython - Tutorial 3: Micropython Timer I2C

ESP8266 Micropython - Tutorial 4: How To Interrupt Micropython

ESP8266 Micropython -Tutorial 5: Micropython UDP

ESP8266 WiFi Bee: Connecting to an Access Point with AT commands

ESP8266 Tutorial: MicroPython Support


  • Wi-Fi Direct (P2P),soft-AP
  • Built-in TCP/IP protocol stack
  • Built-in low-power 32-bit CPU: can work as an application processor
  • Support WPA WPA2/WPA2-PSK encryption
  • Support UART interface
  • Support for TTL serial port to wireless application
  • Working voltage: 3.3V power <240Ma
  • Wireless standard: IEEE802.11b/g/n
  • Frequency: 2.4 GHz

Shipping List

  • Wifi Bee-ESP8266    x1
