Varenr. DFR0768

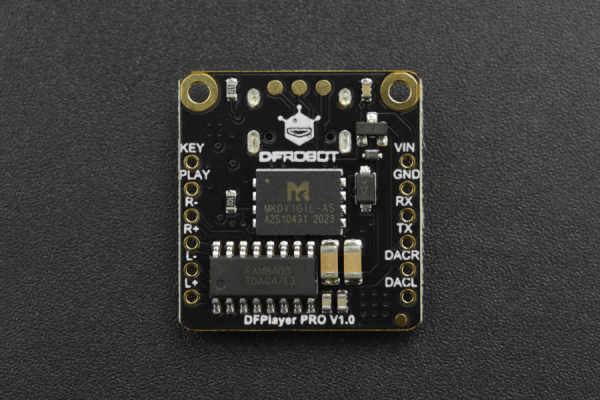

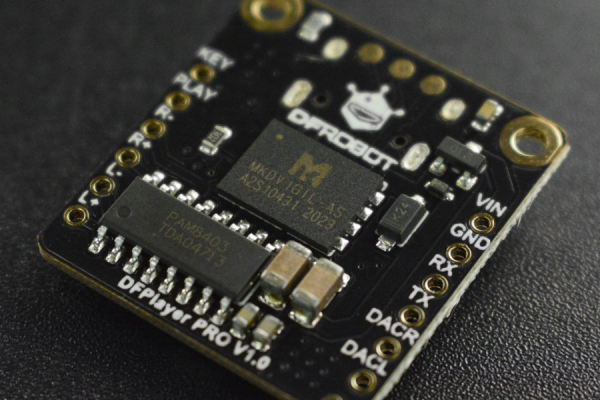

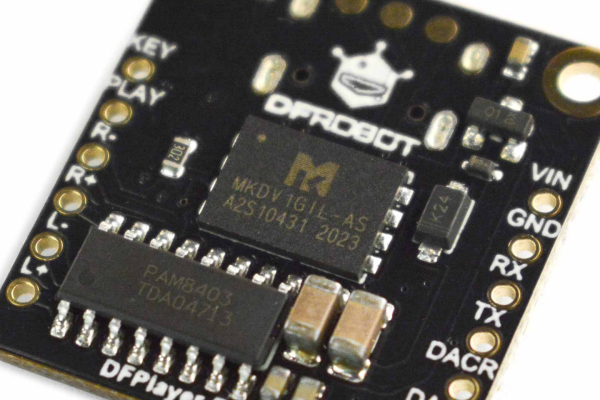

Fermion: DFPlayer Pro - A mini MP3 Player with On-board 128MB Storage (Breakout)


Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

143,75 DKK pr. stk. -
127,00 DKK pr. stk.
Spar 12%
111,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.




  • Product wiki
  • Introduction

    Here comes the DFPlayer Pro---A mini simple but powerful MP3 Player! This MP3 player module supports four controlling modes: Arduino, AT command, on-board buttons, and ADKEY. You can directly press the on-board button to play or switch music without using a controller. Moreover, this player module has 128MB of storage. By using a USB cable, you can easily copy your favorite songs into this module to play them anywhere you want, or use it as a sound card for your PC or Raspberry Pi after connecting them.

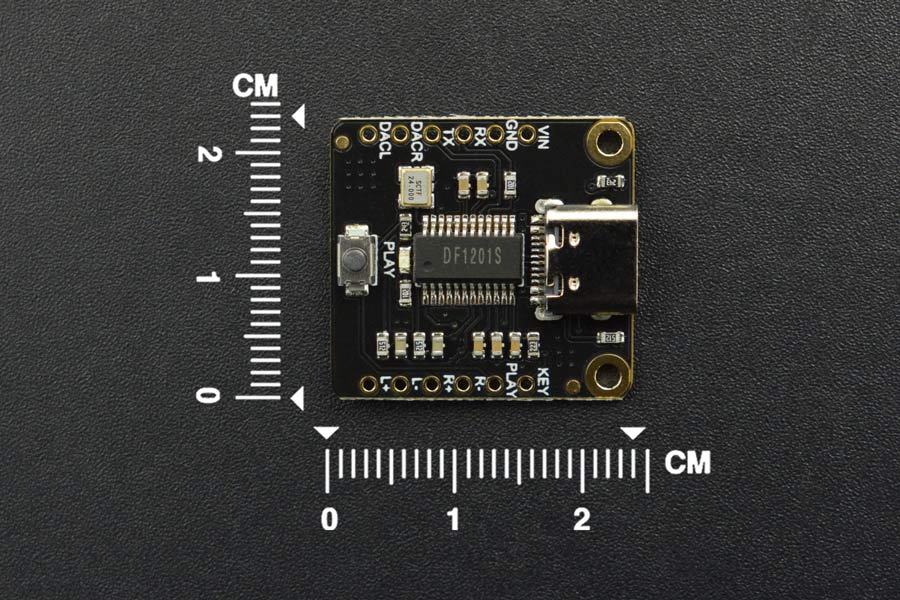

    DFRobot DFPlayer PRO - A MP3 Player

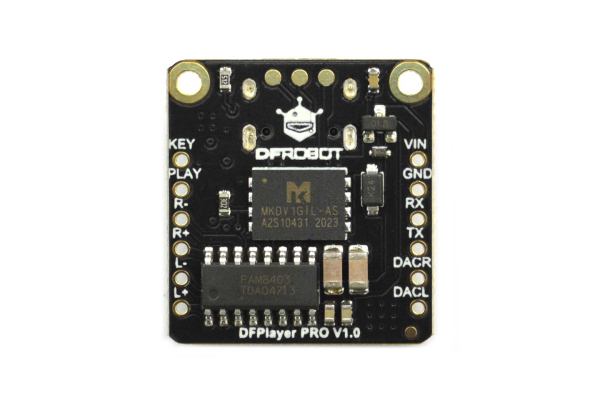

    Board Overview

    MP3 Module Selection Guide

    Name DFPlayer DFPlayer Pro Gravity: UART MP3 Voice Module
    SKU DFR0299 DFR0768 DFR0534
    Storage Storage Card Required 128MB 8MB
    Sound Channel Mono Dual-channel Mono
    Analog U-disk Support No Yes Yes
    ADKEY Control Support Yes Yes No
    On-board Power Amplifier Support Yes Yes Yes
    Audio Format MP3, WAV, WMA MP3, WAV, WMA, FLAC, AAC, APE MP3, WAV
    Communication UART UART UART
    Operating Voltage 3.3V/5V 3.3V/5V 3.3V/5V
    Dimension 20*20mm/0.79*0.79" 23*24.5mm/0.91*0.96" 22*30mm/0.87*1.81"
    Price $5.90 $8.90 $4.90
    1. Small size
    2. Support IO, serial port and ADKEY control
    3. Maximum support 32G of the TF card, suitable for occasions in need of abundant audio files
    1. Stereo dual-channel output
    2. Support four controlling modes: Arduino, AT command, on-board buttons, and ADKEY
    3. On-board 128MB high-speed storage, perfect for occasions in need of storing small numbers of audio files
    4. Support the USB cable to copy music
    5. Can be used as a sound card for the PC or Raspberry Pi
    1. DF-Gravity interface, easy to connect
    2. On-board 8MB storage
    3.Support the USB cable to copy music
    4. Suitable for playing sound effects and prompt sounds


    • On-board 128MB High-speed Storage
    • Playback Switch by Button
    • Dual-channel
    • Support analog U-disk


  • Power Supply: 3.3V~5V
  • Operating Current: >20mA
  • Storage: 128MB
  • Audio Format: MP3, WAV, WMA, FLAC, AAC, APE
  • Communication: UART
  • Operating Temperature: -20℃~70℃
  • Operating Humidity: 5%RH~95%RH

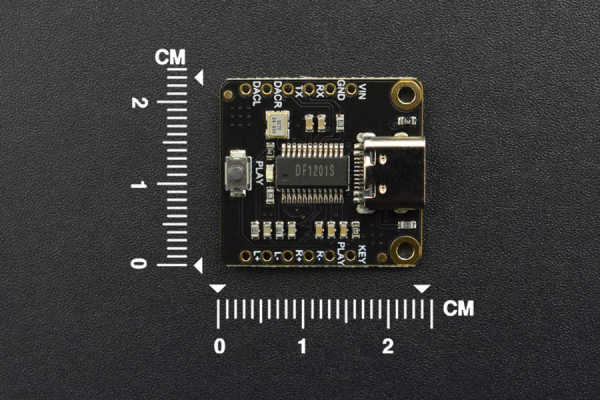

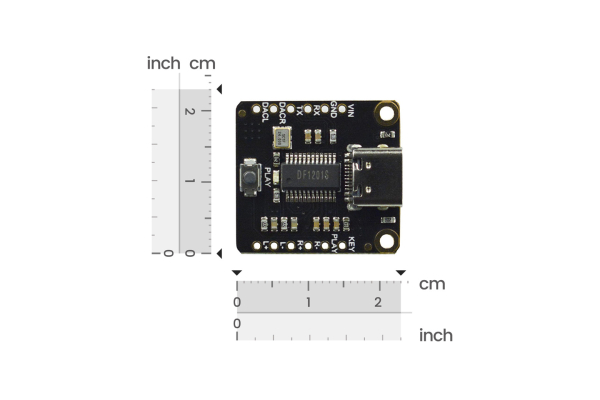

  • Dimension: 23*24.5mm/0.91*0.96”

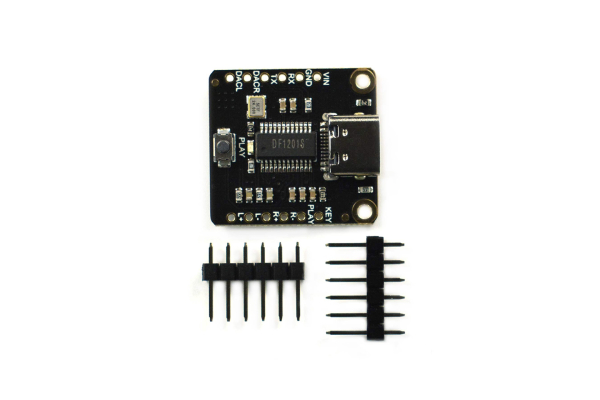

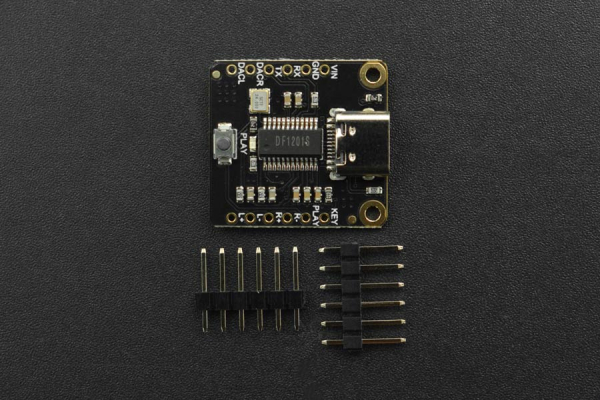

  • Shipping List

  • DFPlayer PRO - A MP3 Player x1
  • 2.54-6P Black Single-Row Pin x2
