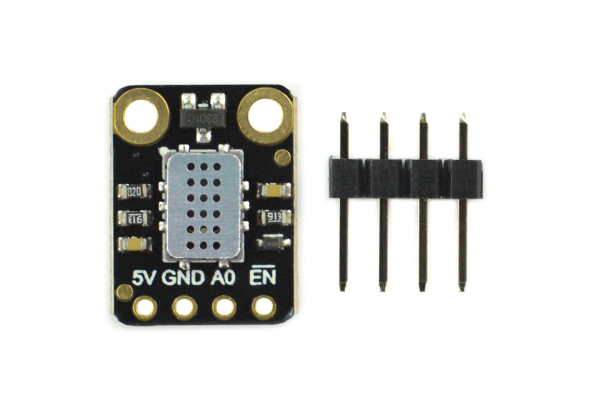

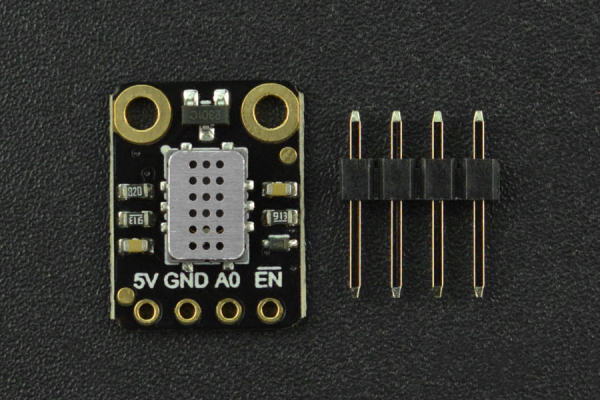

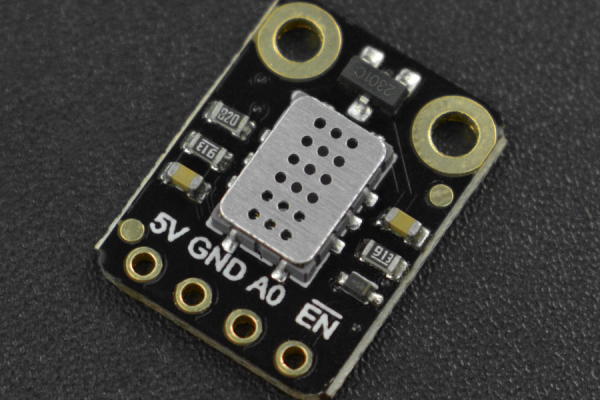

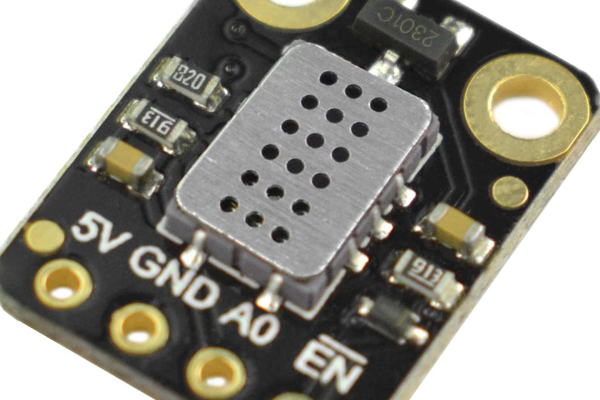

Fermion: MEMS Gas Sensor - MiCS-2714 (Breakout)

158,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

158,75 DKK pr. stk. -
141,00 DKK pr. stk.
Spar 11%
124,00 DKK pr. stk.
Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

TUTORIAL

TUTORIAL

Documents

  • Product wiki
  • MiCS-5524 Datasheet
  • Schematics Diagram
  • Dimension and Component Layout
  • Introduction

    This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot.

    The sensor uses MEMS technology to support gas concentration detection of NO, NO2 and H2.

    The matching sample code integrates the concentration conversion formula of various gas to facilitate the testing and use of sensors. The product supports 5V power supply, analog voltage output, and has power supply enable/disable pins for low power consumption.

    Fermion: MEMS Gas Sensor - MiCS-2714

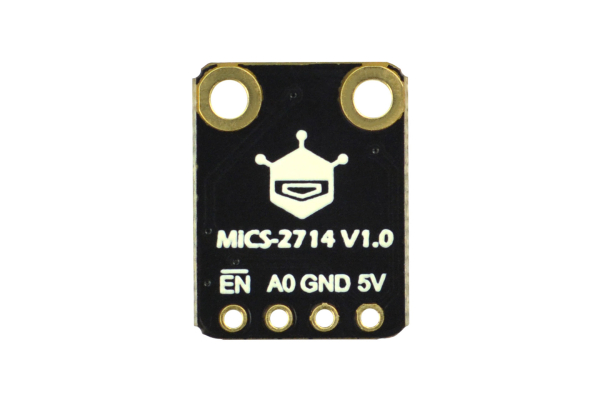

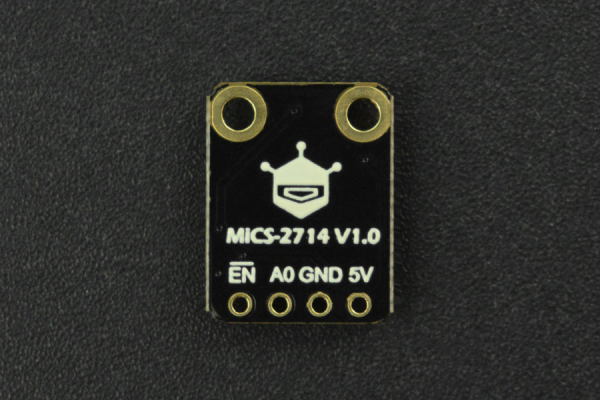

    Board Overview

    Fermion: MEMS Gas Sensor - MiCS-2714

    Connect Diagram

    Features

  • Integrates the concentration conversion formula
  • Low power consumption.
  • Specification

  • Detection of Physical Quantities: Gas concentration or gas leakage of NO, NO2, H2
  • Operating voltage: 4.9~5.1V DC
  • Power dissipation: 0.45W
  • Output signal: Analog quantity
  • Measuring range:
             1 – 1000ppm(Hydrogen H2)
             0.05 – 10ppm(Nitrogen dioxide NO2 )
  • Working temperature: -30~85℃
  • Working humidity: 5~95%RH (No condensation)
  • Storage temperature: -40~85℃
  • Lifespan: >2 years(in the air)

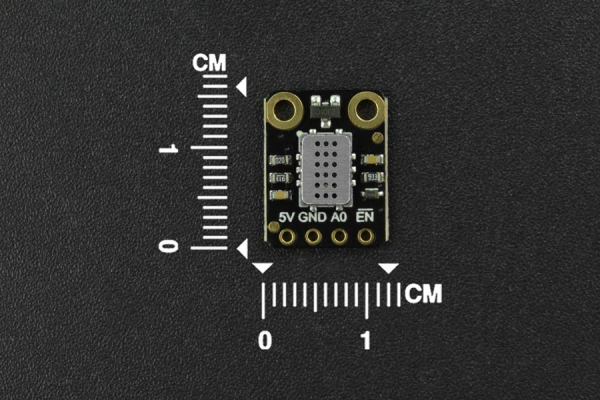

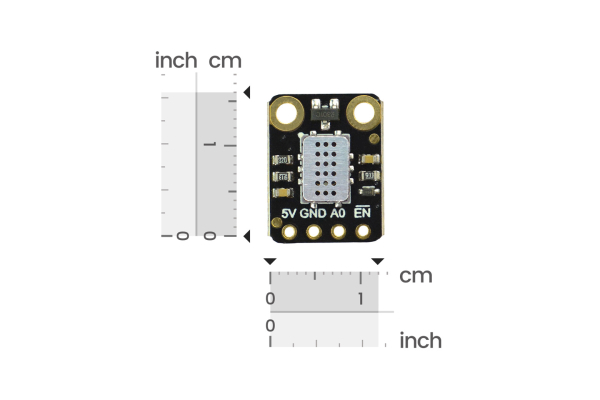

  • Circuit board size:12mm×16mm
  • Mounting hole size:Inner diameter 2mm/outer diameter 4mm
  • Shipping List

  • Fermion: MEMS Gas Sensor - MiCS-2714 x1
  • Black pin header-3Pin x1
