Fermion: MPU-6050 6 DOF Sensor (Breakout)

DFRobot

Varenr. SEN0142

Fermion: MPU-6050 6 DOF Sensor (Breakout)

203,75

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	203,75 DKK pr. stk.	-
5 stk.	182,00 DKK pr. stk.	Spar 11%
10 stk.	161,00 DKK pr. stk.	Spar 21%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Projects

Project: Biped Robot Using Reaction Wheels

Documents

Introduction

At the beginning, the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerators, gyroscopes, and magnetometers. Now IMUs are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in the Segway Personal Transporter as we all known.

The MPU-6000/MPU-6050 family of parts are the world’s first and only 6-axis MotionTracking devices designed for the low power, low cost, and high performance requirements of smartphones, tablets and wearable sensors.

The MPU-6000/6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. The parts’ integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor.

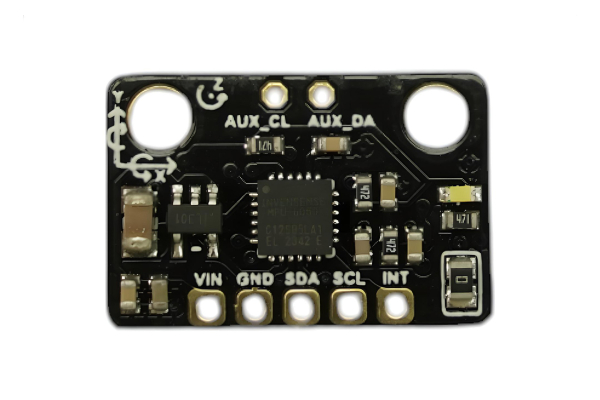

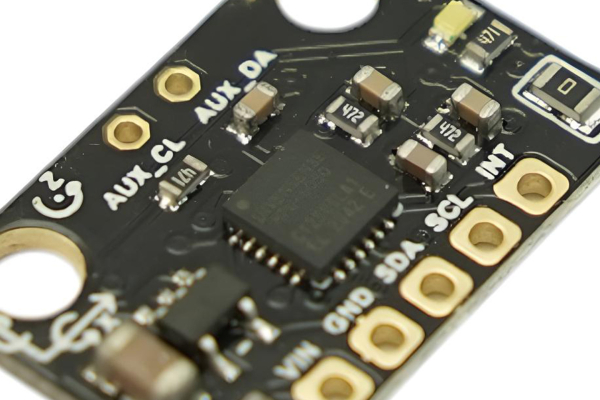

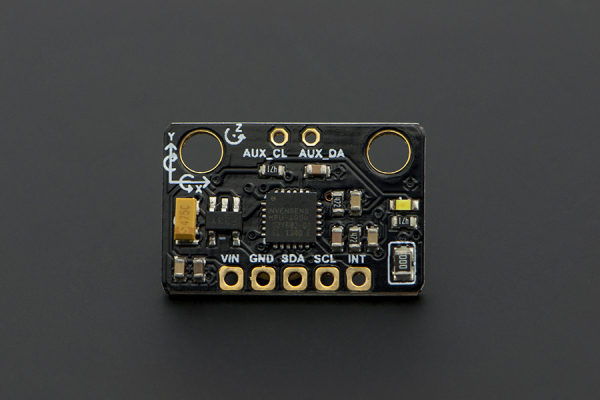

The 6 Dof sensor breakout integrate with the MPU6050 sensor and the low noise 3.3v regulator and pull-up resistors for the I2C bus. So it's available to directly hook up the sensor with the Arduino processors for your robotics,HCI and wearable projects. With the Arduino library from i2cdevlib it's easy for you to drive this sensor and get the pitch,roll,yaw,quaternion,euler data.

Specification

Working voltage: 3~5v
I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
Digital Motion Processing (DMP) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
Embedded algorithms for run-time bias and compass calibration. No user intervention required
Dimensions: 14 x 21mm(0.55x0.83")

Shipping List

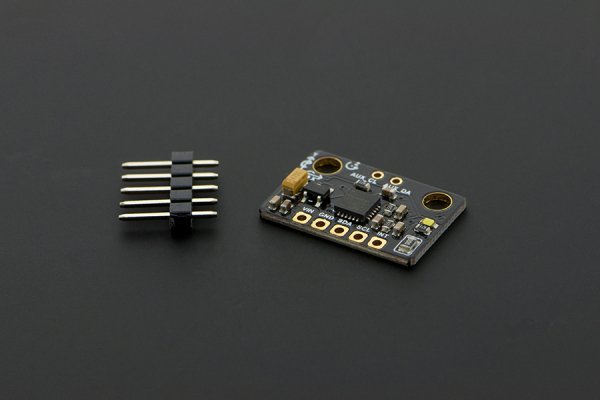

6 Dof sensor - MPU6050 x1
