Varenr. SEN0430

Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm) (Breakout)


På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

205,00 DKK pr. stk. -
183,00 DKK pr. stk.
Spar 11%
162,00 DKK pr. stk.
Spar 21%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.


  • Product wiki
  • Schematics
  • Datasheet
  • Introduction

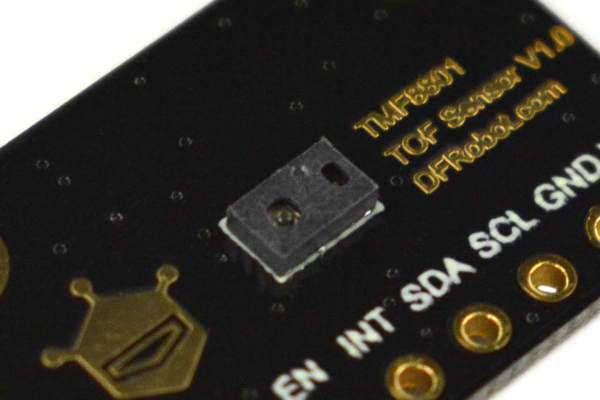

    The TMF8801 is a time-of-flight (ToF) distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the color, reflectivity and texture of the object.

    The TMF8801 offers high dynamic range and detection sensing measurements from 2-250cm distances. The device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight.

    A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters.

    The TMF8801 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.

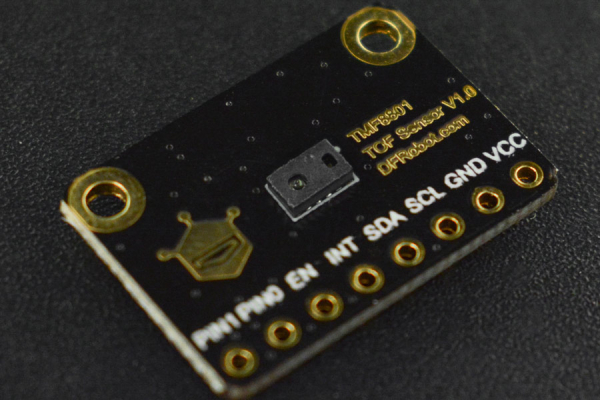

    Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm)


    Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm)

    Connect Diagram


  • 21º FOI, detect the object closest to the center
  • 20–2500mm distance sensing
  • Enables dark and sunlight environment distance measurement within ±5%
  • A built-in histogram for compensating for dirt and smudges on cover glass
  • 940nm VCSEL Class 1 Eye Safety
  • Low power consumption:

              940μA power consumption at 10Hz(proximity mode)

              26mA power consumption at 60Hz (distance and proximity mode)

              0.26μA power-down current consumption (EN=0)

  • Specification

  • Operating Voltage: 2.7~3.3V
  • Operating Current: <1.5mA
  • Proximity Detection Range: 20-100mm
  • Distance Sensing Range: 100-2500mm
  • Operating Temperature: -30~60℃

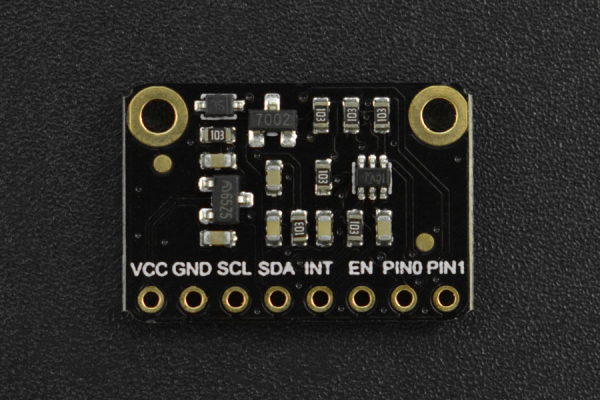

  • Communication Interface: Breakout 2.54mm-8Pin I2C

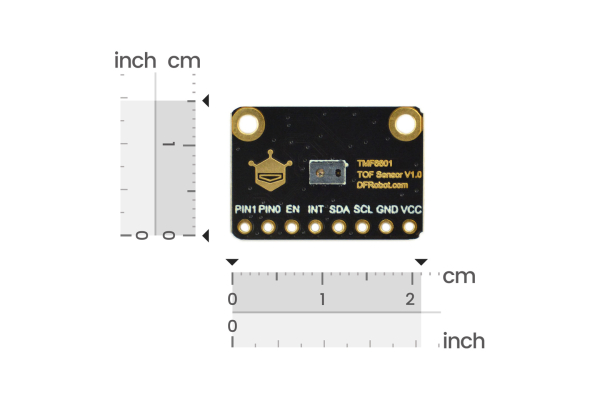

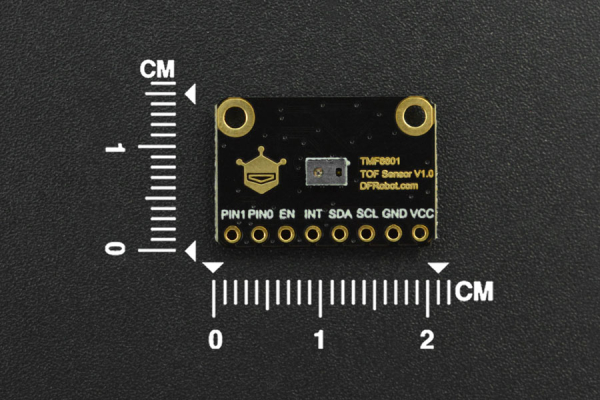

  • Dimension: 21*14.5mm/0.83*0.57"
  • Mounting Hole Size: 2.0mm
  • Mounting Hole Pitch: 17mm

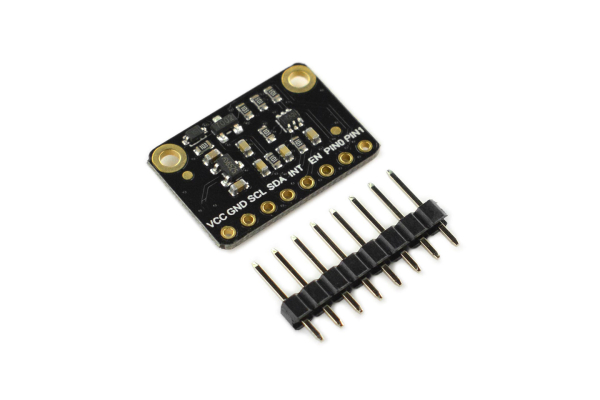

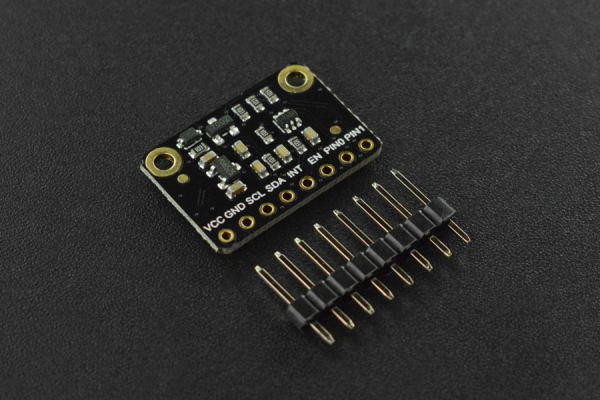

  • Shipping List

  • Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm) x1
  • 2.54-8P Black Single-row Connector x1
