DFRobot

Varenr. SEN0427

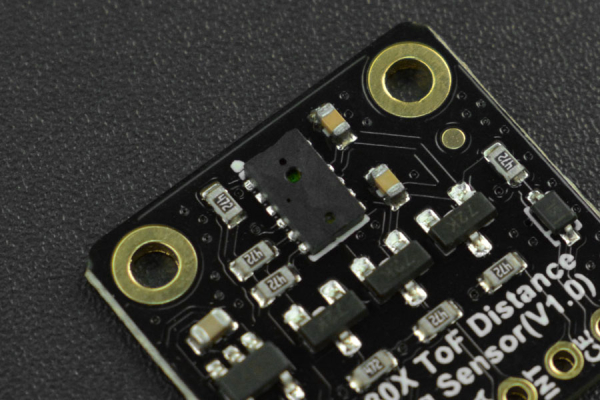

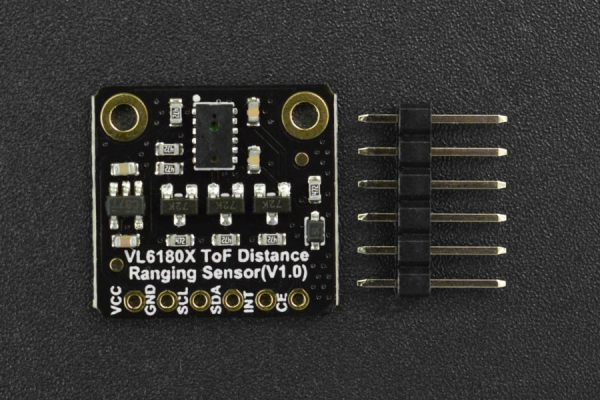

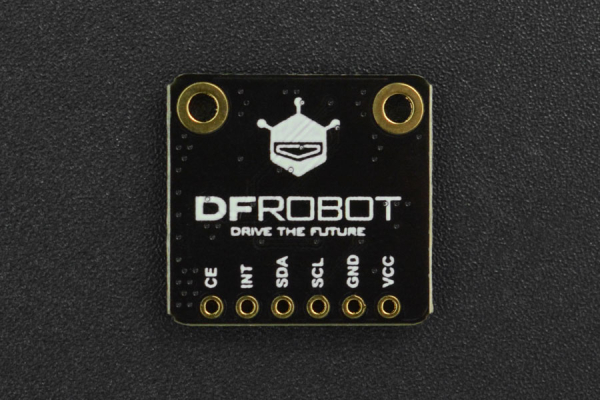

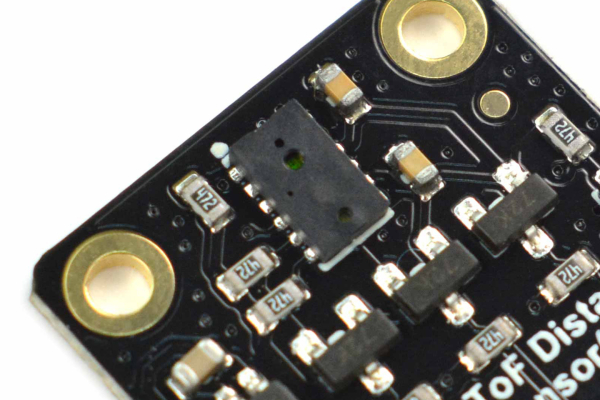

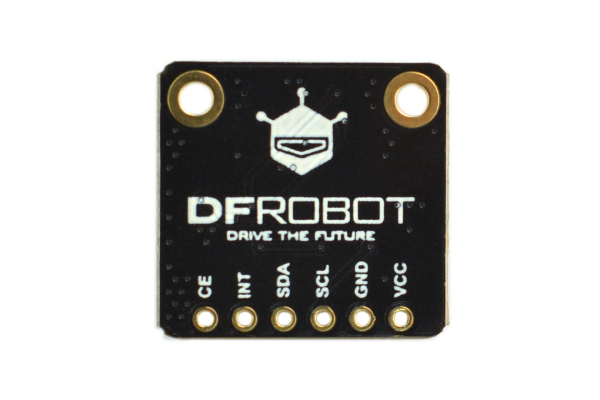

Fermion: VL6180X ToF Distance Ranging Sensor (5-100mm) (Breakout)

112,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

112,50 DKK pr. stk. -
99,00 DKK pr. stk.
Spar 12%
86,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.

    Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)

    Connection Diagram

    Features

  • Simultaneous measurement of distance and ambient light
  • VCSEL light source
  • Strong anti-interference
  • Specification

  • Power Supply Voltage: 3.3V~5V
  • Operating Current: <5mA
  • Measuring Distance: 5-100mm
  • Emitter: 940nm invisible laser (VCSEL)
  • I2C Address: 0x29
  • Operating Temperature Range: -20℃~85℃

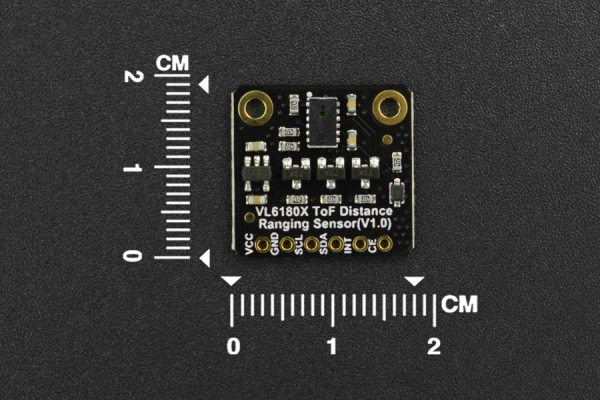

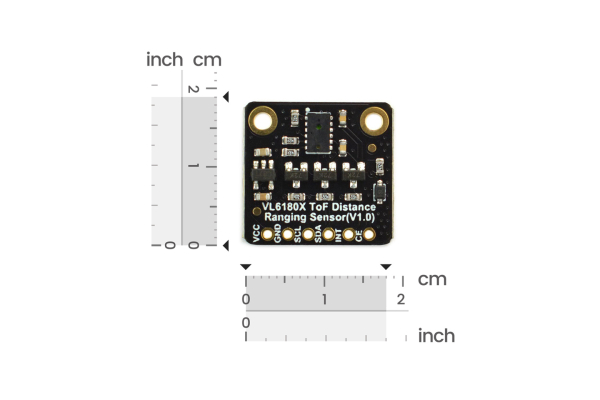

  • Product Size: 19*18mm / 0.75*0.71 inch
  • Shipping List

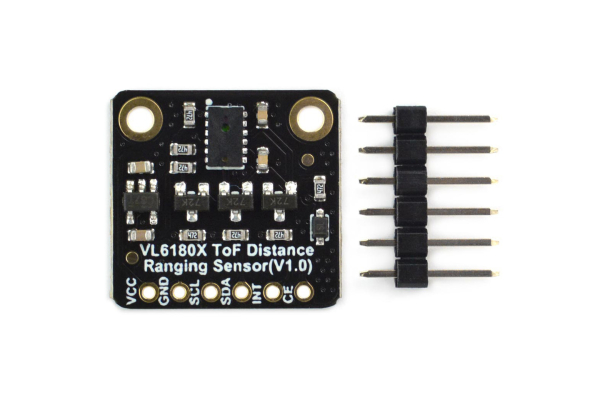

  • Fermion: VL6180X ToF Distance Ranging Sensor (Breakout) x1
  • 2.54-6P Black Single Row Pin Header x1
