DFRobot

Varenr. DFR0745

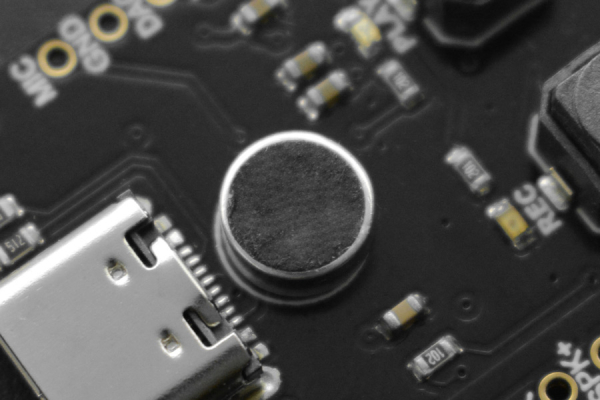

Fermion: Voice Recorder Module (Breakout)

112,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

112,50 DKK pr. stk. -
99,00 DKK pr. stk.
Spar 12%
86,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction


    Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.

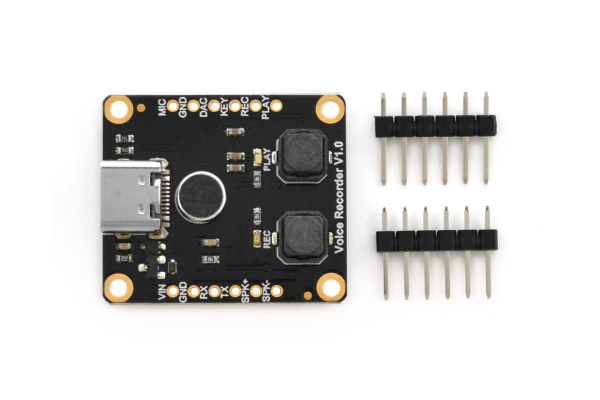

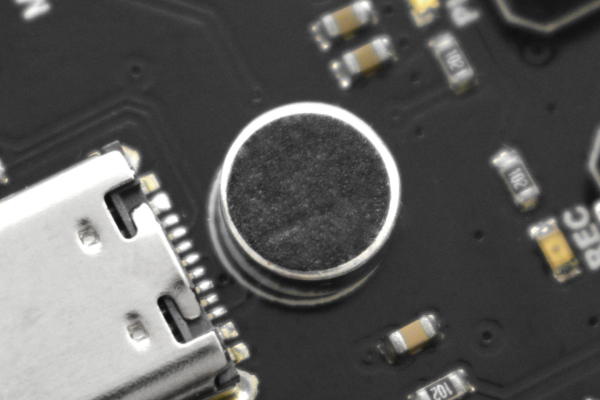

    Voice Recorder Module-breakout

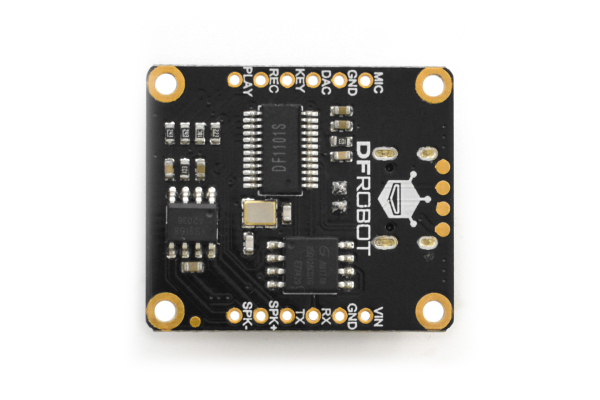

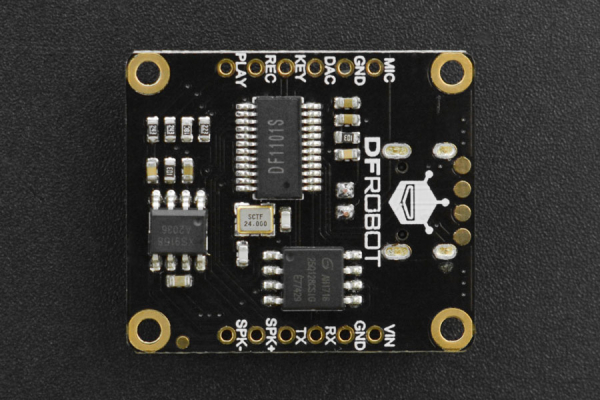

    Board Overview

    Features

    • Support about 40 minutes voice recording
    • Support multi-segment voice recording
    • Voice recording/playing via on-board buttons
    • On-board power amplifier
    • Support analog U-disk

    Specification

    • Operating Voltage: 3.3~5V
    • Operating Current: >10mA
    • Storage: 16MB
    • Sampling Rate: 48kbs
    • Communication: UART

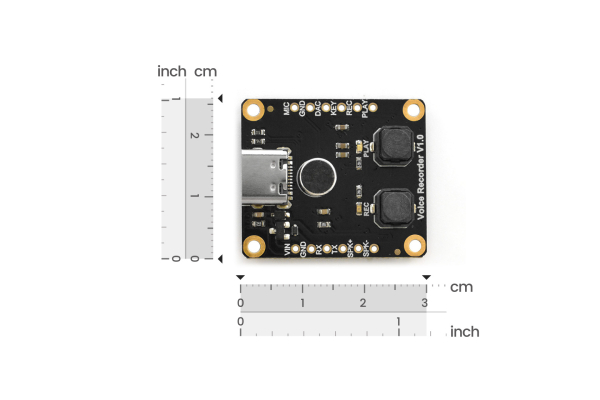

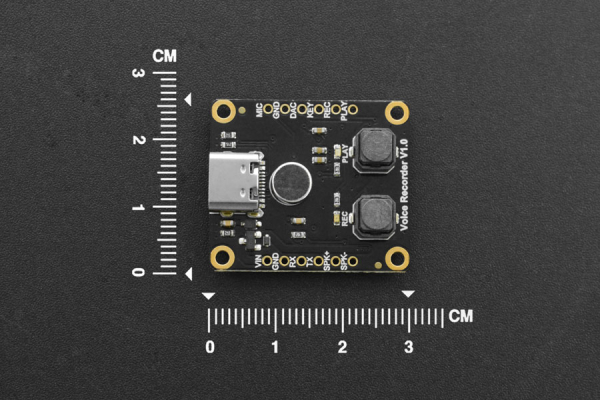

    • Dimension: 26*30mm/1.02*1.18”

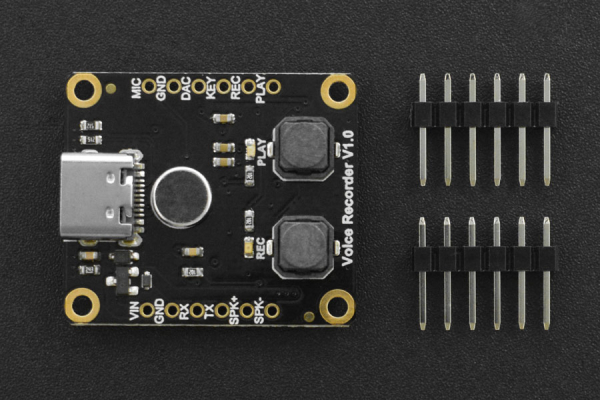

    Shipping List

  • Voice Recorder Module-Breakout x1
  • 2.54-6P Single-Row-Pin Black x2
