Introduction

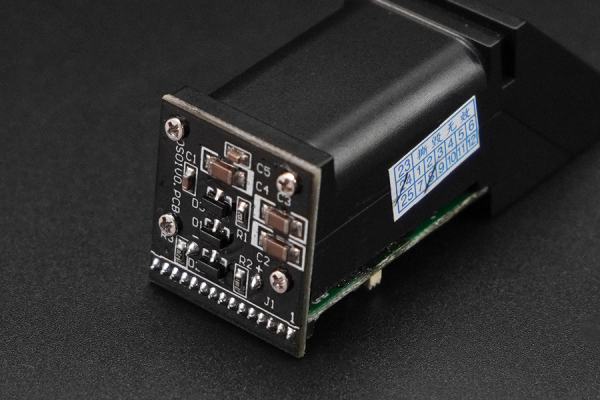

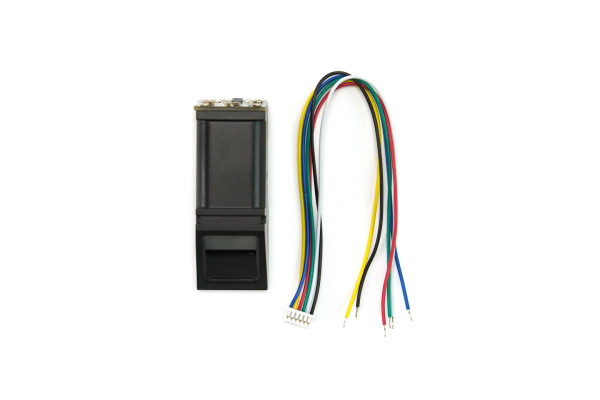

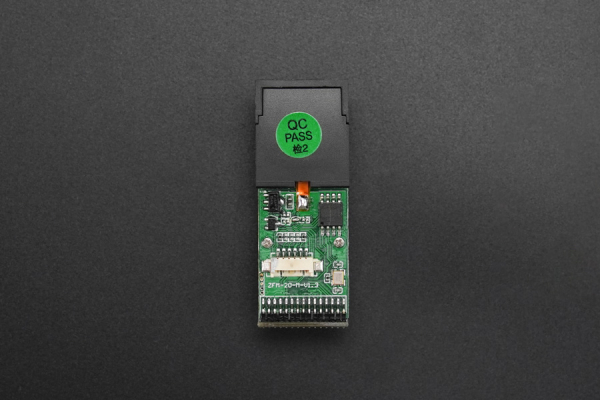

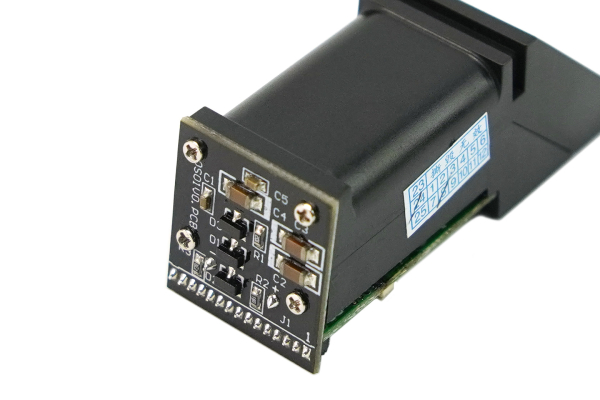

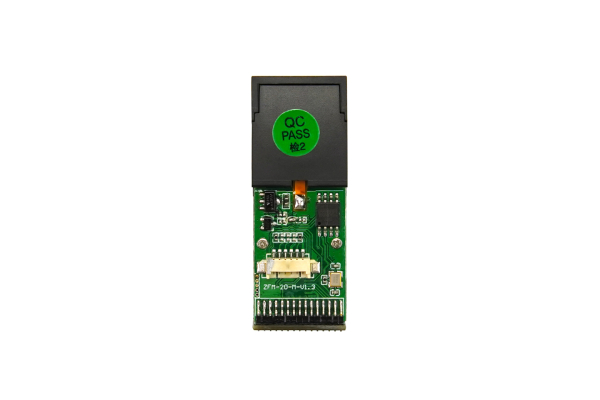

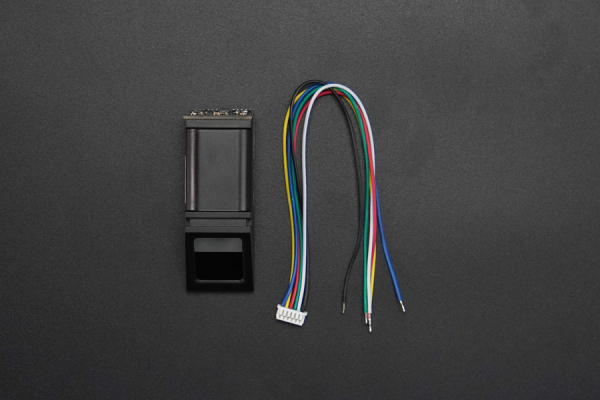

This is an Arduino compatible fingerprint module. With the high speed DSP processor, it could also work with other serial device, like MSP430, 51, AVR, PIC, STM32, ARM and FPGA device. This fingerprint module could work alone without any principal computer or any PC software. It could store 1000 fingerprint. Support fingerprint entry, intelligent image processing, fingerprint comparison and fingerprint search mode. It also has a high sensitivity to both wet and dry fingerprint recognition.
This module could be widely used in security field, such as license management .etc. It can also be used to replace the IC card, password, hardware switch in your application.
Turning On a Motorcycle Engine With Fingerprints
Fingerprint Sensor Project 1: How to make a Fingerprint ID Nerf Gun
My initial plans were to have the Arduino on the side with the power-pack and have the fingerprint ID scanner on the left side of the gun so that it can read the thumb print
Hardware components:
how to make a fingerprint starter for bike
Fingerprint Sensor Project 2: How to Make Fingerprint Lock for Your Computer
Fingerprint Sensor Project 3: IoT Based Fingerprint Attendance System Using Evive
This arduino project will show you how to make a DIY fingerprint attendance system.
Fingerprint Sensor Project 4: How to make a Fingerprint ID Nerf Gun
My initial plans were to have the Arduino on the side with the power-pack and have the fingerprint ID scanner on the left side of the gun so that it can read the thumb print
Hardware components
Use DFRobot's UART fingerprint scanner to store fingerprints and only allow authorized people to access the box.
Hardware components
Fingerprint Sensor Project 6: How to make Fingerprint Door Lock with Arduino
Specification
- Power supply: DC 3.8V-7.0V
- Operating current: 65mA (Typical)
- Interface: UART (TTL logical level)
- Baud rate: (9600*N)bps, N=1~12(default N=6, 57600bps)
- Image acquisition time: <1S
- Storage capacity: 1000
- FAR: <0.001%
- FRR: <1.0%
- Average searching time: <1s (1:500, average)
- Matching Mode: comparison mode (1:1) and search mode (1:N)
- Character file: 256 bytes
- Template file: 512 bytes
- Security level: 5(1,2,3,4,5(highest))
- Working environment: Temp: -20°C - +60; RH: 40%-85%
- Storage environment: Temp: -40°C - +85°C; RH: <85%
- Touch area dimension: 14.5*19.4 mm (0.57*0.76")

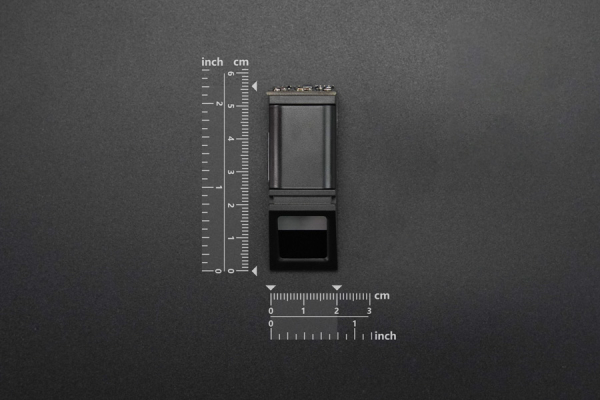

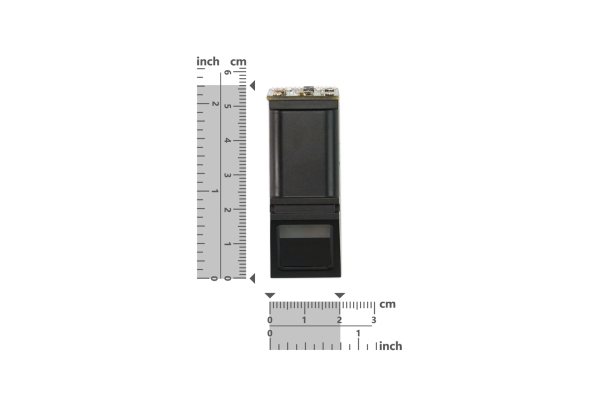

- Outline dimension: 54*20*20.5 mm (2.13*0.79*0.81")
