DFRobot

Varenr. DFR0845

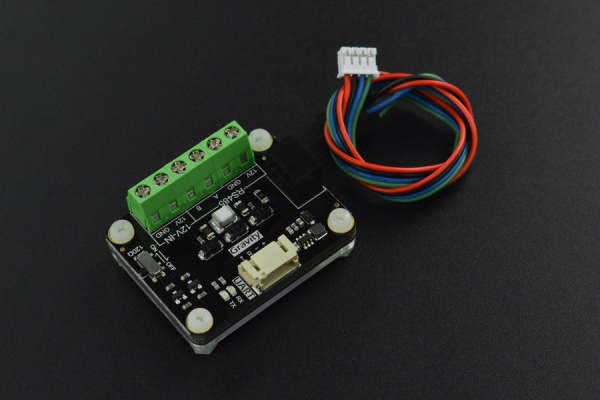

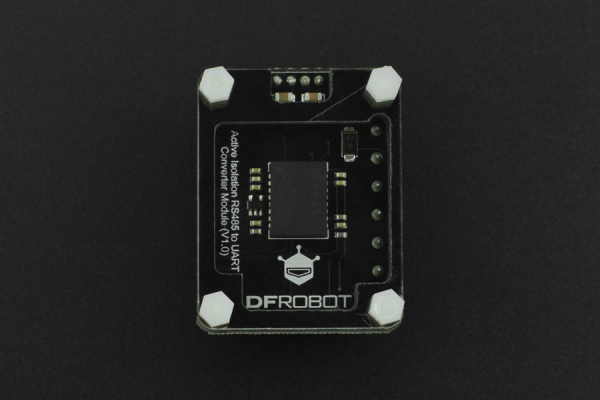

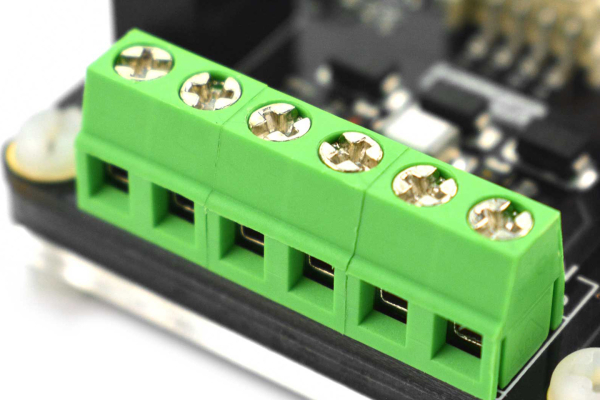

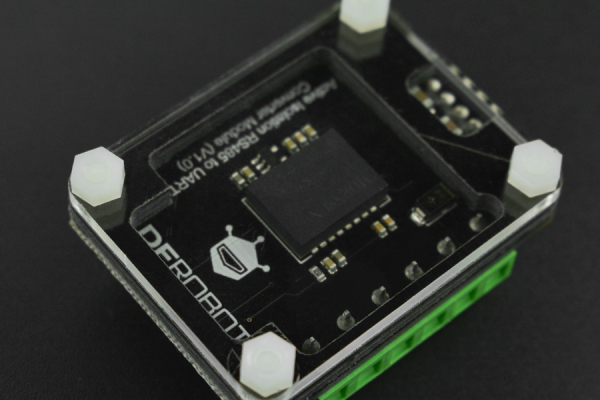

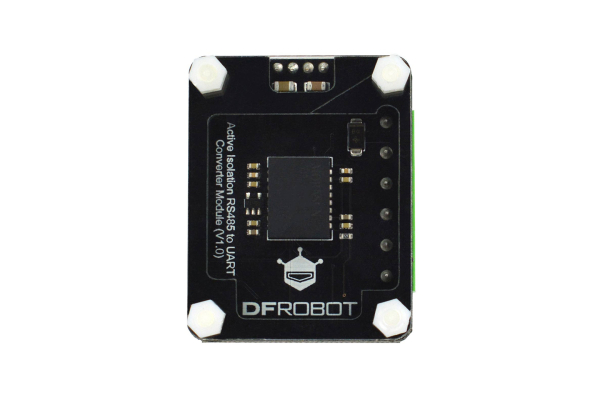

Gravity: Active Isolated RS485 to UART Signal Adapter Module

301,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

301,25 DKK pr. stk. -
274,00 DKK pr. stk.
Spar 9%
248,00 DKK pr. stk.
Spar 18%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • TDH541S485H datasheet
  • Schematics
  • Dimension and Component Layout
  • Introduction

    This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS.

    Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc.

    It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.

    Connect with Arduino Board


    Connection Diagram (Use serial port to read sensor data)

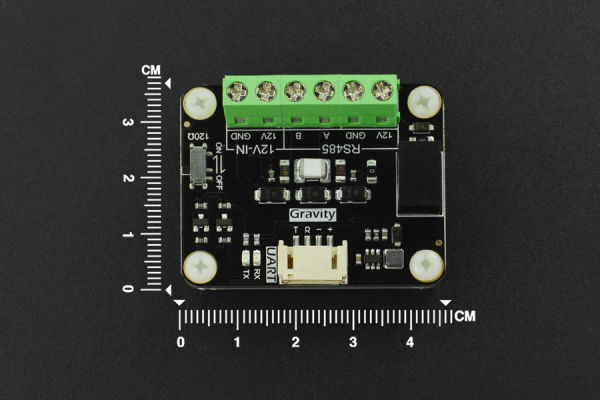

    Board Overview

    Features

  • Fast communication speed
  • Stable and reliable performance
  • High safety
  • Specification

  • Power Supply Voltage: 3.3~5V
  • Communication baud rate up to 1M bps
  • Up to 12V-2W power output (output current is about 160mA)
  • Isolation voltage 3000 VDC
  • Bus electrostatic protection capacity is up to 15kV
  • 1/8 unit load, bus load capacity up to 256 nodes
  • Bus fail protection and bus drive short circuit protection
  • Operating temperature range: -40℃ to +105℃

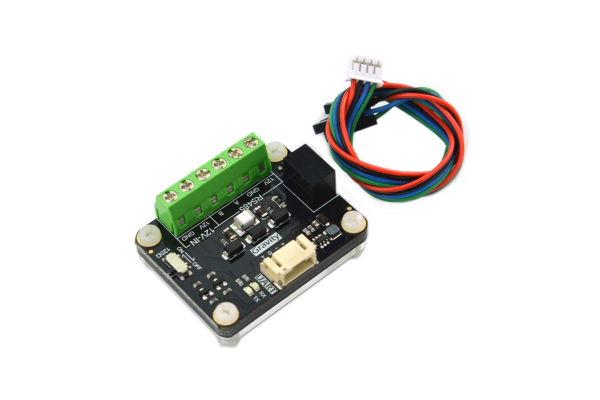

  • Shipping List

  • Gravity: Active Isolated RS485 to UART Signal Adapter Module x1
  • Gravity-4pin UART Cable x1
