DFRobot

Varenr. SEN0193

Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

97,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

97,50 DKK pr. stk. -
85,00 DKK pr. stk.
Spar 13%
74,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

Projects Project 1. Wireless Soil Moisture Probe with Helium and DFRobot
Plants die all the time from lack of watering. You're busy and those ferns aren't going to raise their hands when feeling parched. So, for the plant enthusiast on the go, this prototype soil moisture probe is your ticket to happy and healthy ferns and ficus.
Hardware list:

Constructing your complete soil moisture probe using the Gravity Capacitive Soil Moisture Sensor, a Helium Atom Prototyping Module, a Helium Arduino Adapter, and an Arduino UNO

TUTORIAL

TUTORIAL

  • Gravity:Analog Capacitive Soil Moisture Sensor Review
    2016-10-25 08:40:46
  • Wireless Soil Moisture Probe with Helium and DFRobot
    2017-08-29 06:39:32

Documents

Introduction

This product measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corrosion-resistant material giving it long service life. Insert it into the soil and impress your friends with the real-time soil moisture data!

The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.

This sensor is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield.

The following image shows an example project - a device that notifies you when a plant needs to be watered.

Gravity: Analog Capacitive Soil Moisture Sensor

Analog Soil Moisture Sensor Projects:
Get a text or call if your plant is getting too dry, along with a nice LCD display giving information regarding your plant's health.

Hardware Components:


Particle Photon Project 2: Annoying Soil Moisture Sensor with Photon and IFTTT Project

Never forget to water your plants again with this super annoying project. It combines visual, auditory, and textual cues that will prevent you from doing anything else until you provide your plant with much-needed hydration. A piezo buzzer constantly blares a shrill note, while a super-bright LED annoys your peripheral vision. In addition, this project will send constant texts to your phone reminding you that your plant needs to be watered. Sounds like fun, right?

Hardware Components:


Project 3: OBLOQ-IoT Module +Micro:bit IoT Flower Watering

Hardware Components:

Features

  • Supports Gravity 3-Pin Interface
  • Analog Output

Specification

  • Operating Voltage: 3.3 ~ 5.5 VDC
  • Output Voltage: 1.2 ~ 2.5V
  • Interface: PH2.0-3P

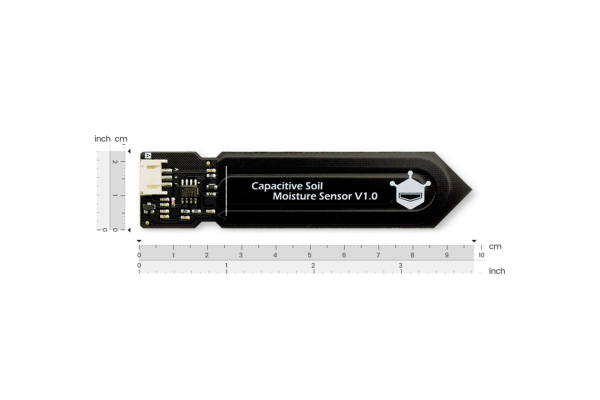

  • Dimension: 98mm * 23mm (3.86in x 0.905in)
  • Weight: 15g
