DFRobot

Varenr. DFR0076

Gravity: Analog Flame Sensor For Arduino

66,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

66,25 DKK pr. stk. -
58,00 DKK pr. stk.
Spar 12%
50,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

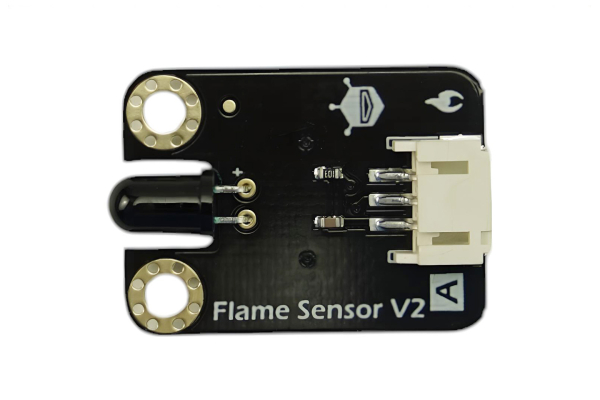

Introduction


This Arduino flame sensor can be used to detect fire or other wavelength at 760 nm ~ 1100 nm light. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot's eyes to find fire source or football. It can make use of fire-fighting robots, soccer robots.

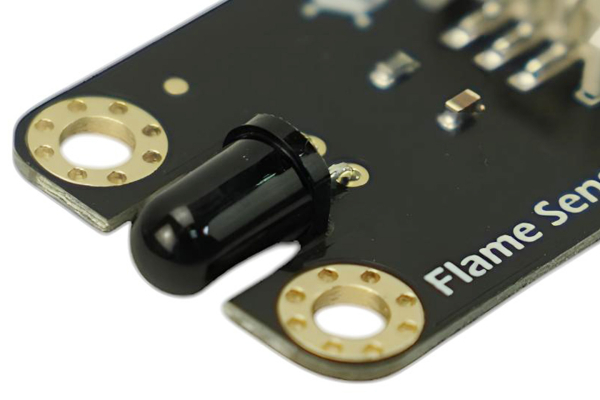

The Flame sensor has probe angle of 60 degrees, two M3 mounting holes is provided to install on various platforms.

This arduino flame sensor's operating temperature is -25 degrees Celsius to 85 degrees Celsius, in the course of the flame it should be noted that the probe distance from the flame should not be too close inorder to avoid damage.
Arduino Flame Sensor Demo Project 2
This sensor can sense flame sensitively!!

Arduino Flame Sensor Demo Project
 This sensor uses Gravity interface, and works from 3.3V-5V  which is able to be compatible with various platforms such as Arduino, Raspberry Pi, Intel Galileo, Curie and Joule
Improvement
  • Wide voltage range from 3.3V to 5V
  • Standard assembling structure (two 3mm holes with multiple of 5cm as interval)
  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • Icons to simplely illustrate sensor function
  • High quality connector
  • Immersion gold surface

Specification

  • Supply Voltage: 3.3V to 5V
  • Detection range: 20cm (4.8V) ~ 100cm (1V)
  • Rang of Spectral Bandwidth : 760nm to 1100nm
  • Responsive time : 15us
  • Interface: Analog
  • Size:22x30mm (0.87x1.18in)

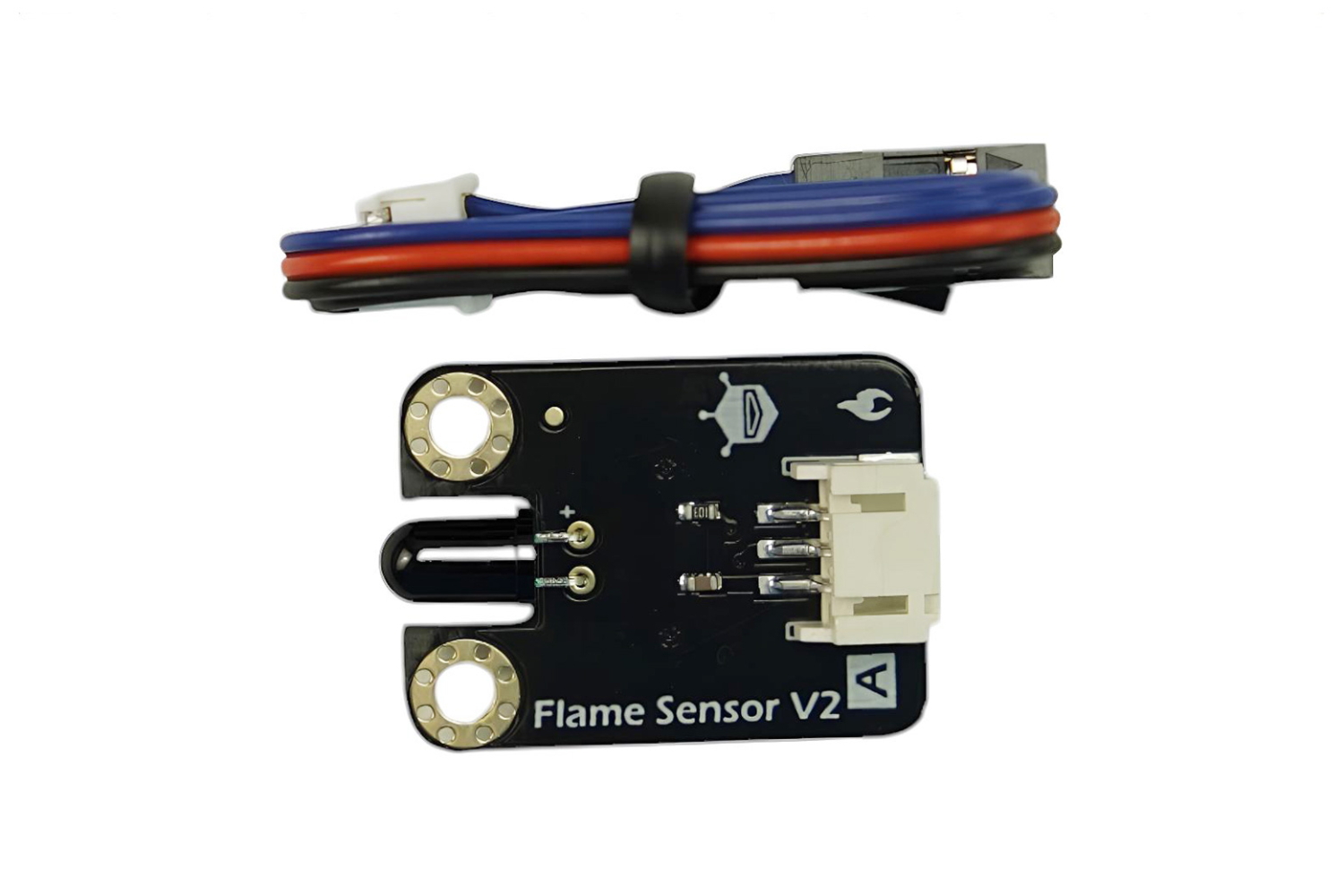

Shipping List

  • Flame Sensor x1
  • Analog cable x1
