DFRobot

Varenr. SEN0131

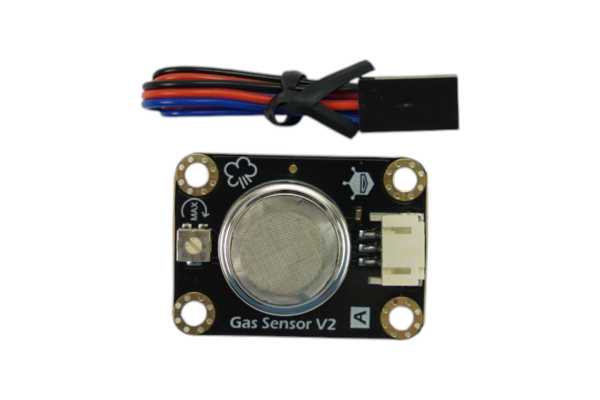

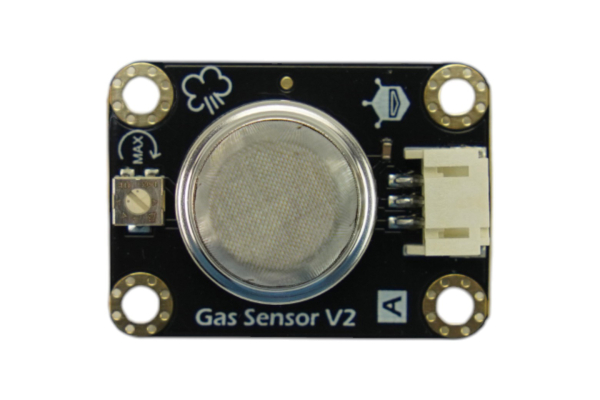

Gravity: Analog Propane Gas Sensor (MQ6)

112,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

112,50 DKK pr. stk. -
99,00 DKK pr. stk.
Spar 12%
86,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

TUTORIAL

TUTORIAL

Documents


Introduction

This is an Arduino Propane Gas Sensor. It uses MQ6  probe to detect iso-butane, propane and liquefied petroleum gas (LPG). It is less sensitive with alcohol, cooking fumes and cigarette smoke.

It can be used in gas leakage detecting equipment in consumer and industry applications,

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.


To ease the difficulty of using this sensor,  a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match for this senor connecting to your Arduino

Specification

  • Working Voltage: 5V
  • Interface type: Analog
  • Pin Definition:  1-Output  2-GND  3-VCC
  • High sensitivity to LPG, iso-butane, propane
  • Small sensitivity to alcohol, smoke
  • Fast response
  • Stable and long life
  • Simple drive circuit

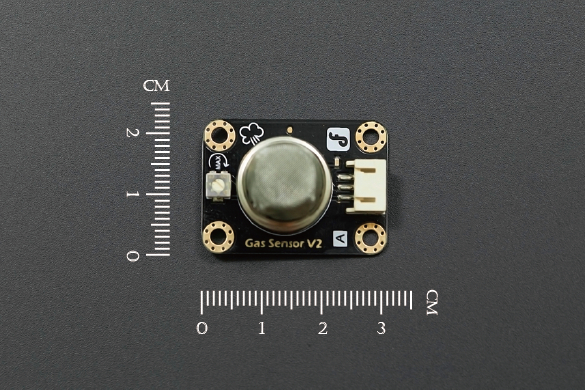

  • Size: 40x20mm(1.57"x0.79")

Shipping List

  • Arduino Propane  Gas Sensor (MQ6) x1
  • Gravity Analog Cablex1
