DFRobot

Varenr. DFR0051

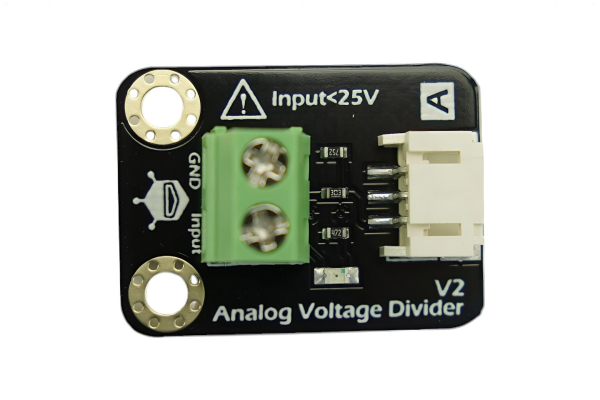

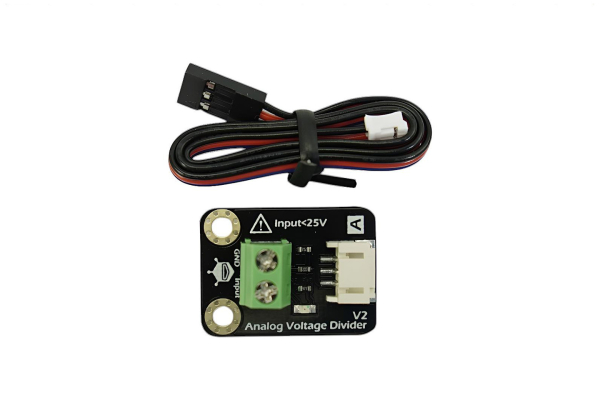

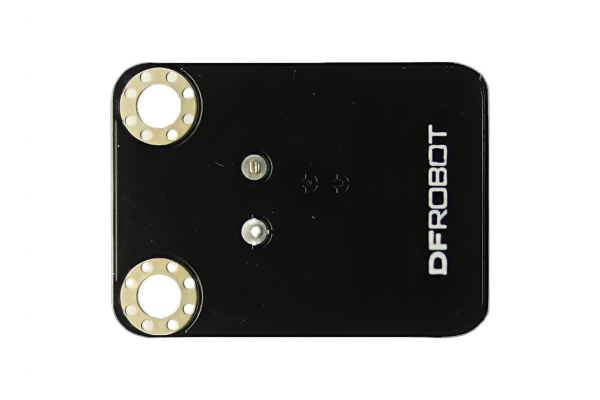

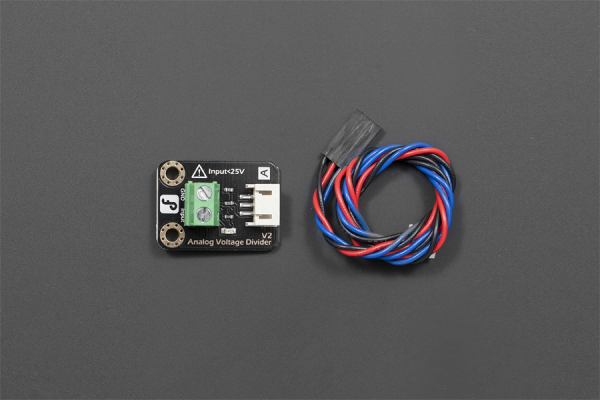

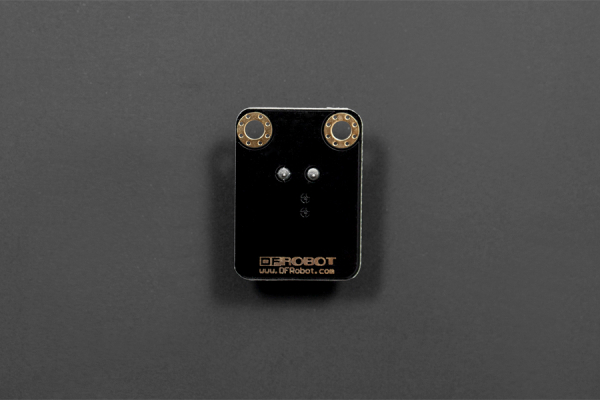

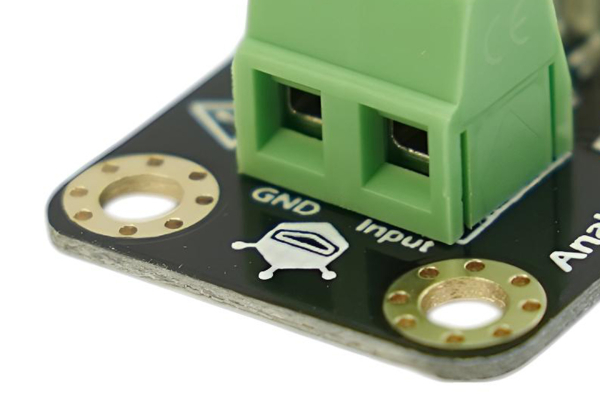

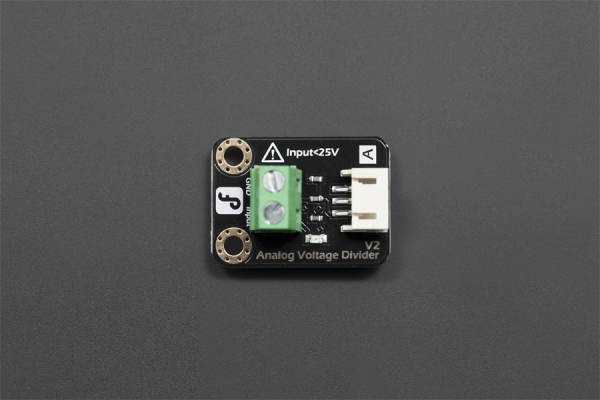

Gravity: Analog Voltage Divider V2

61,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

61,25 DKK pr. stk. -
54,00 DKK pr. stk.
Spar 12%
46,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

The Analog Voltage Divider V2 can detect the supply voltage from 0.0245V to 25V. This module is based on resistor divider principle. The voltage detection module allows the input voltage to reduce 5 times. As the Arduino analog input voltage is normally maximum 5V, the input voltage of analog voltage detection module can not exceed 5Vx5 which is 25V.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features.

  Inprovement List

  • Wide voltage range from 3.3V to 5V
  • Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • Icons to simplely illustrate sensor function
  • High quality connector
  • Immersion gold surface

Specification

  • Interface: Analog
  • Input voltage (DC): Maximum 25V, Minimum 0.0245V
  • Detects the supply voltage upto 25V
  • Size:22x30mm (0.87x 1.18 in)
