Varenr. TEL0149

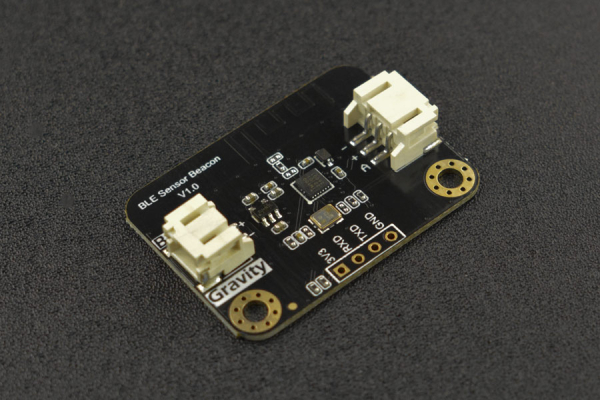

Gravity: BLE Sensor Beacon Pack (5 PCS)

232,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

232,50 DKK pr. stk. -
209,00 DKK pr. stk.
Spar 10%
186,00 DKK pr. stk.
Spar 20%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • IN100 Datasheet
  • Schematics
  • Dimension
  • Introduction

    Note: Gravity: BLE sensor beacons need to be configured using the 3.3V USB-TTL tool.

    This Gravity wireless BLE Sensor Beacon with built-in 11-bit ADC is capable of collecting data from digital and analog sensors and broadcasting via Bluetooth. And users can access the sensor data within broadcasting range on a Bluetooth-equipped device like a smartphone, ESP32, etc.

    Integrated with low-power BLE 5.3 technology, the BLE sensor beacon supports both LE and private-protocol broadcasting, and its data format works well with iBeacon, Eddystone, and other mainstream protocols. Besides, users can configure data format, broadcast content, and time intervals on a graphical interface as per their needs.

    After configuration, it will run as a Bluetooth beacon when powered on, and collect and broadcast data automatically according to the settings. These sensor beacons can be used IoT sensor nodes for data collection in many scenarios such as smart farms, offices, factories, and warehouses.

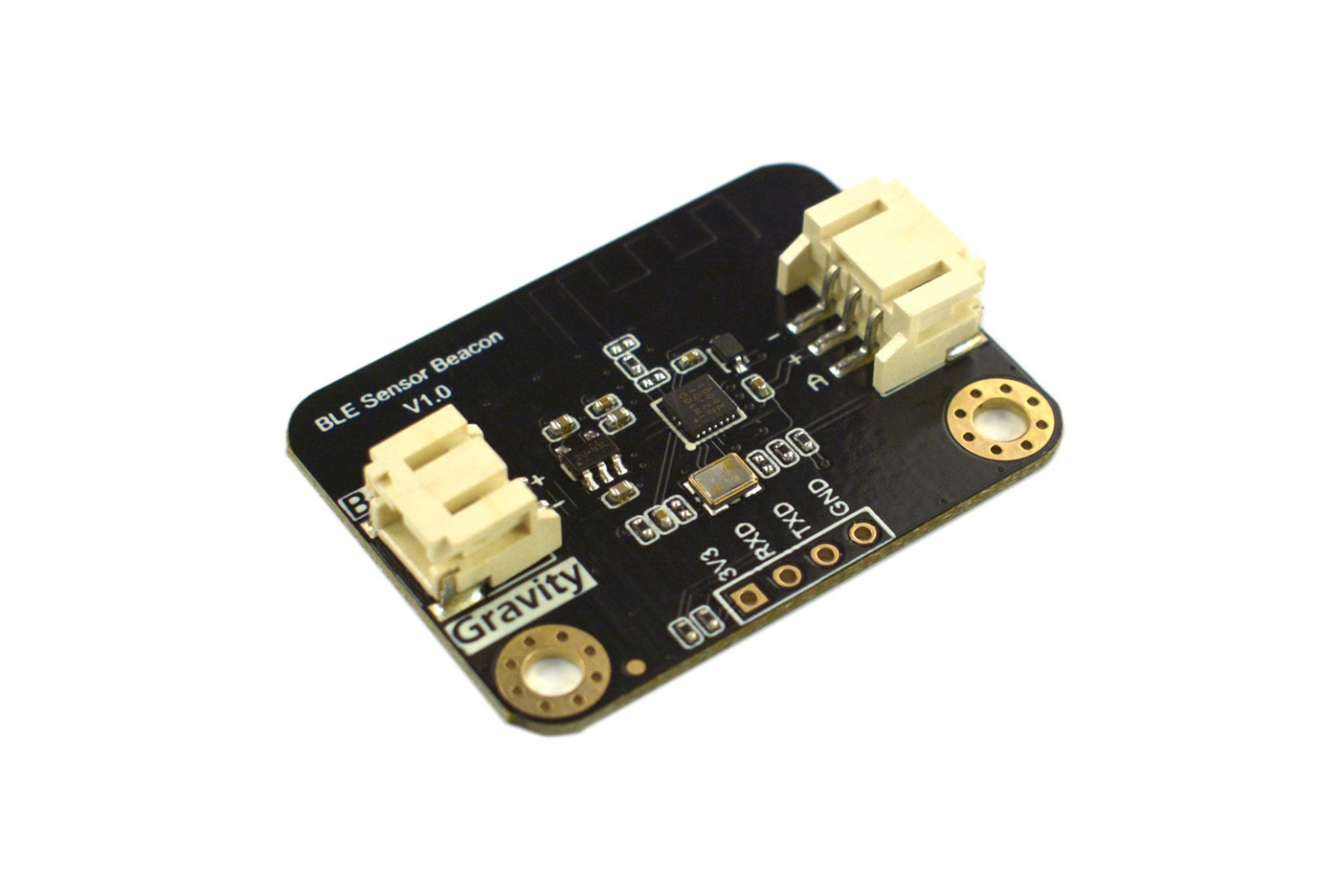

    Gravity: BLE Sensor Beacon

    Pinout

    Features

  • Bluetooth Low Energy 5.3 Compliant
  • Specification

  • Operating Voltage: 3.3-5.5V DC
  • Operating Current: <2mA @Eddystone TLM
  • Supported sensors: 3.3V digital/analog sensors
  • Input Signal: digital/analog signals
  • Operating Frequency Range: 2.4GHz ISM
  • Modulation: GFSK
  • Transmitting Power: +5.0dBm

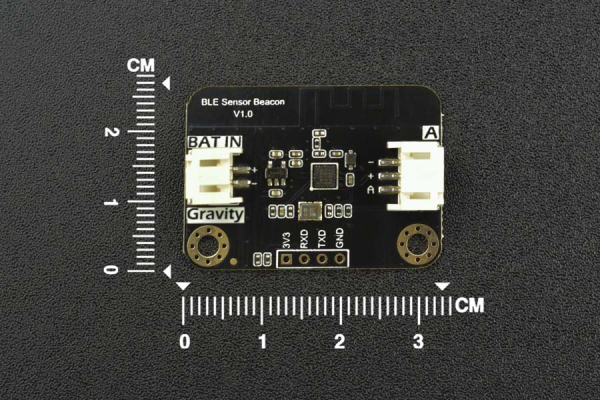

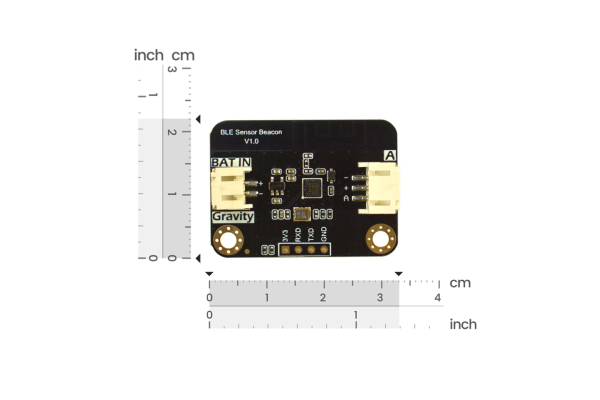

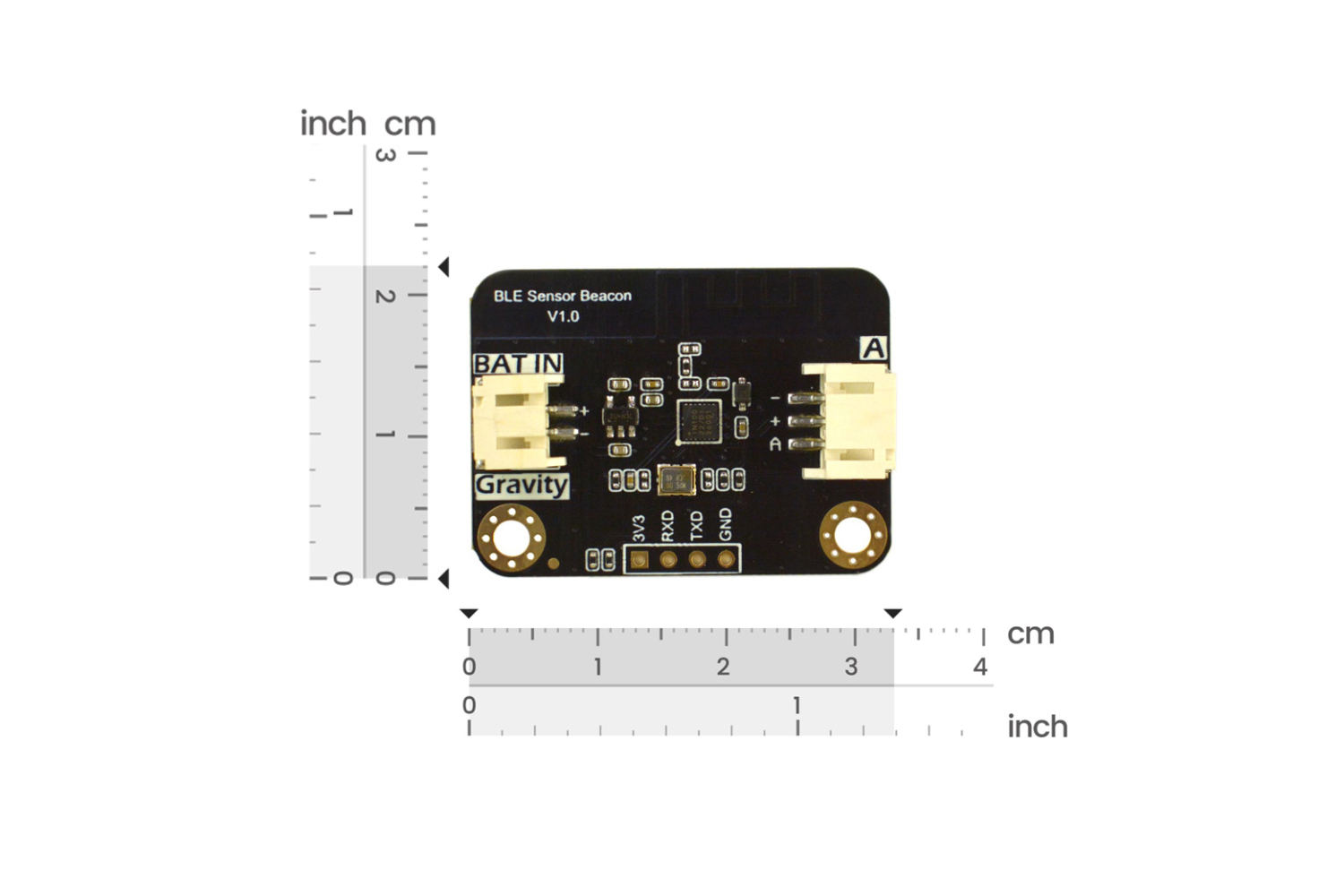

  • PCB Size: 27mm×33.5mm/1.06×1.32inch
  • Mounting Hole Size: inner diameter of 3.1mm/outer diameter of 6mm
  • Shipping List

  • Gravity: BLE Sensor Beacon ×5
  • 4Pin Connector ×5
