Varenr. SEN0359

Gravity: Capacitive Fingerprint Sensor

365,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

365,00 DKK pr. stk. -
338,00 DKK pr. stk.
Spar 7%
310,00 DKK pr. stk.
Spar 15%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

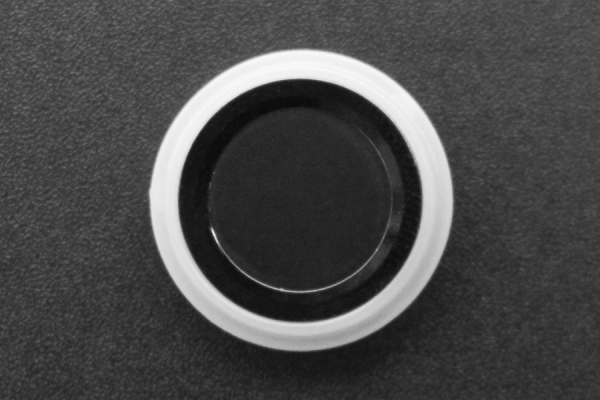

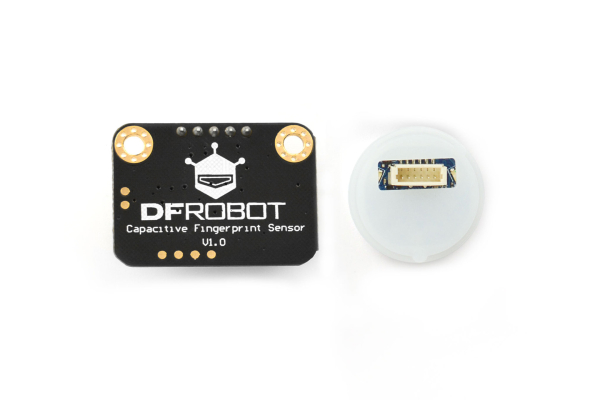

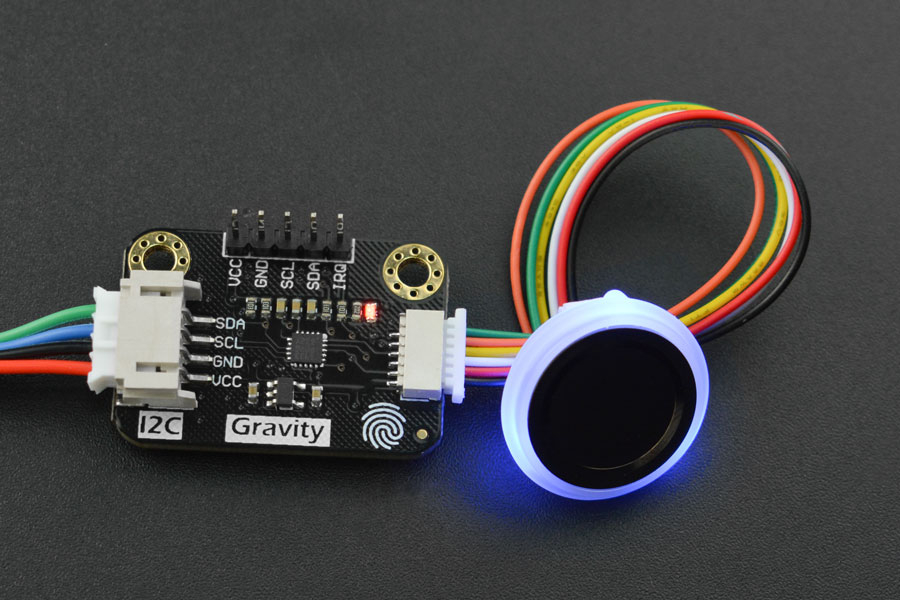

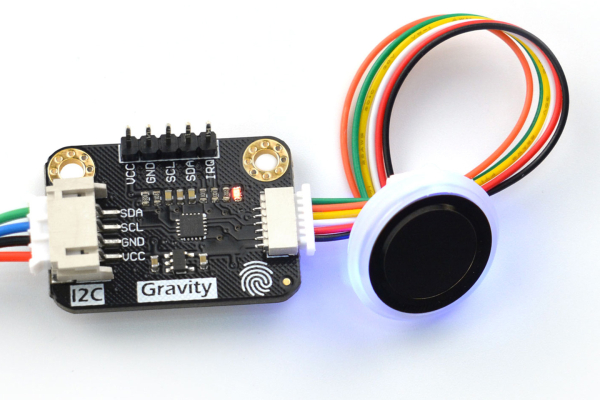

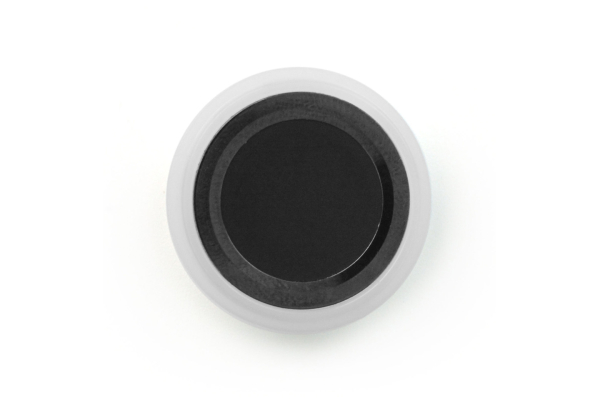

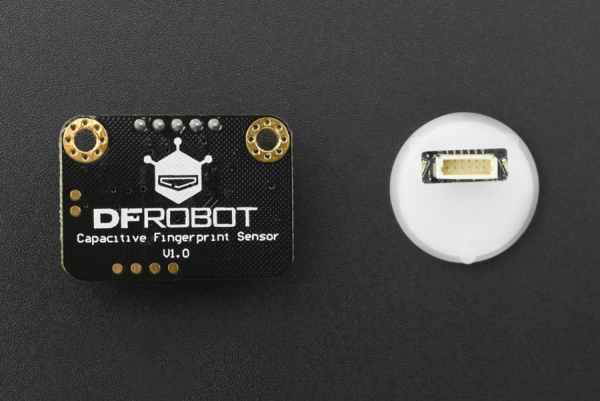

    This is a capacitive fingerprint sensor with fingerprint collecting, processing, storing, and comparison integrated all-in-one. Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor is equipped with built-in IDfinger6.0 fingerprint algorithms that enable it to complete all the fingerprint recognition independently. When working with our Arduino Library, the module is able to realize functions like fingerprint registration, fingerprint deletion, etc. Also, we offer upper computer software to help users conveniently operate this sensor.

    This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.

    Compared with SEN0348 Capacitive Fingerprint Sensor/Scanner, this module adopts Gravity interfaces that make it easier to connect. In addition, it is 3.3V and 5V compliant and supports I2C communication, which is very suitable for working with controllers like UNO, micro: bit, and so on.

    Features

    • 360-degree fingerprint entry and matching
    • Self-learning function
    • CNC metal ring, plus aperture

    Specification

    • Operating Voltage: 3.3V-5V
    • Operating Current: <60mA
    • Communication: I2C
    • Storage Capacity: 80 fingerprints
    • 1:1 verification time: 300~400ms
    • Pixel Resolution: 508dpi
    • Number of Pixels: 160x160
    • Fingerprint Detection Area: 8.0mm x 8.0mm
    • Working Environment: ‐40‐60℃/

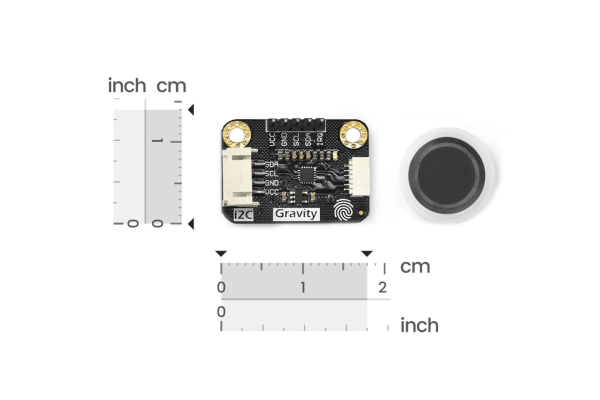

    • Dimension: diameter 21mm/height 5mm
    • Adapter Dimension: 22.5*32mm/0.89*1.26”

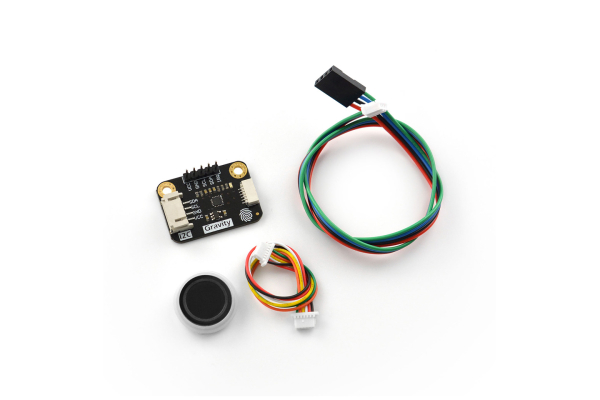

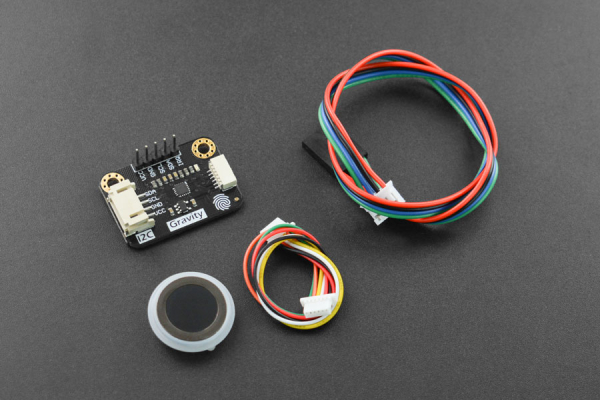

    Shipping List

  • Gravity: Capacitive Fingerprint Scanner/Sensor x1
  • Adapter x1
  • SH1.0 6P Wire x1
  • Gravity-4P I2C/UART Sensor Cable x1
