Digital Gravity: 5A Relay Module, køb her 43,75 DKK

Mængderabat

DFRobot

Varenr. DFR0017

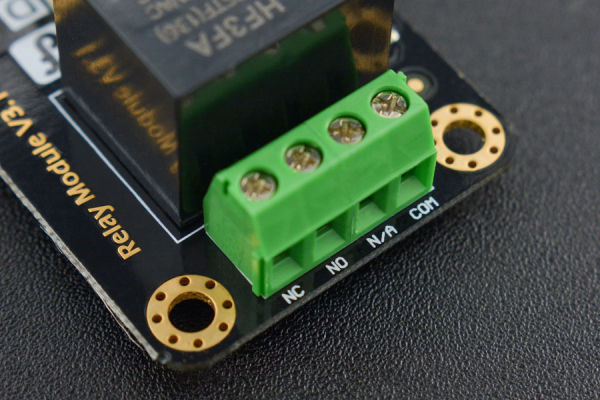

Gravity: Digital 5A Relay Module

43,75

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	43,75 DKK pr. stk.	-
5 stk.	38,00 DKK pr. stk.	Spar 13%
10 stk.	33,00 DKK pr. stk.	Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Projects

Project 1. Using the Arduino Xboard to control a relay
In this project you will find how to use the XBoard with xbee along with another arduino to control some objects over your local network.
Hardware needed:

1 Arduino
1 Xboard
1 FTDI programmer
1 Relay
1 CAT5 cable
1 pair of xbee modules
1 computer
1 Internet router
hookup wire

Project 2. How to Make An Automatic Water Changing System
Main Components:
DFRduino UNO R3 *1
Gravity: IO Expansion Shield for Arduino V7.1 *1
Gravity: Analog Turbidity Sensor For Arduino *1
Immersible Pump & WaterTube *1
Gravity: Analog pH Sensor / Meter Kit For Arduino *1
Wall Adapter Power Supply 12VDC *1 Solenoid Valve *1
Gravity: Digital 5A Relay Module *1
Water Pipe *2m
Interface (for solenoid valve) *2
I2C 16x2 Arduino LCD Display Module

Project 3. How to Make an Automatic Christmas Tree
With all the lights and decorations that people use at Christmas, power is left on all the time and electricity bills skyrocket. I made this motion detecting Christmas tree light setup that only turns on when people are nearby.
Hardware list:
PIR Sensor x1
Bluno x1
I/O Expansion Shield v7.1 x1
LED Strip x1
Relay Switch x1
Mini mp3 module
DFSpeaker v1.0
Regular power extension lead (with some modifications)
1k resistors x2

Project 4. Application Tutorials of FireBeetle Board - ESP32 BLE: Smarten a Plugboard

What you have seen is a smart plugboard that converted by ESP32 master board and controlled by BLE of ESP32.

Hardware in need:

Documents

Introduction

The DFRobot Relay Module is a standard relay used with a controller board to interface external electrical circuits or modules. Some of the most common applications with Arduino are: Home lighting, electrical appliances of high power and other equipments. The modular design makes it easy to integrate with a controller board. The Relay integrates a status LED, in order to acknowledge visually it's status ON or OFF. It can be controlled through the digital IO port, with a simple HIGH or LOW on Arduino compatible boards. Other boards will work requiring same voltage level. Other usages include control of solenoid valves, lamps, motors and other high current or high voltage devices.

Gravity Digital 5A Relay Module Schematic diagram

Latest Update: V3.1

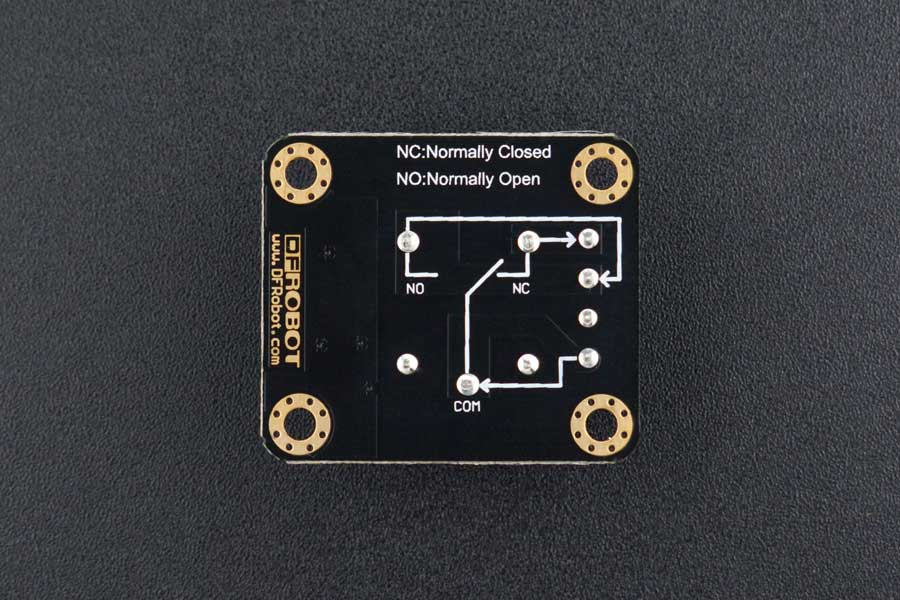

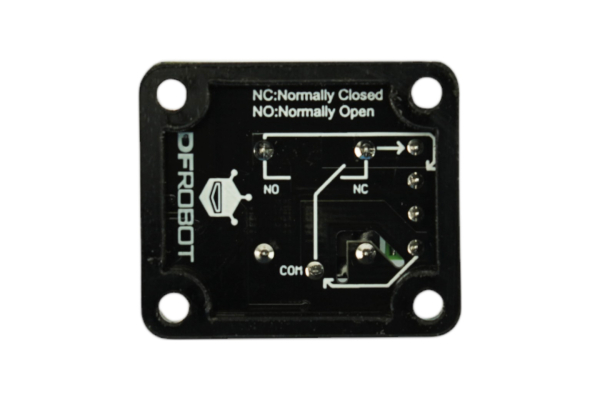

Improved the silkscreen on the bottom layer of the sensor to indicate the hardware connection.

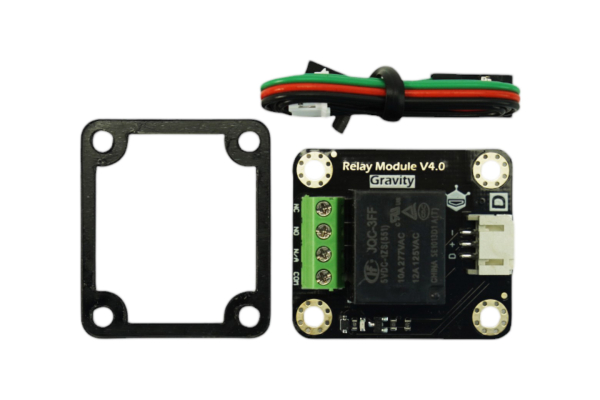

Some kits may include acrylic holder and nylon screw set to prevent shorting of high power interface with metalic surface.

Specification

Single relay board
Rated through-current: 10A (NO) 5A (NC)
Maximum switching voltage: 150VAC 24VDC
Interface: Digital
Control signal: TTL level

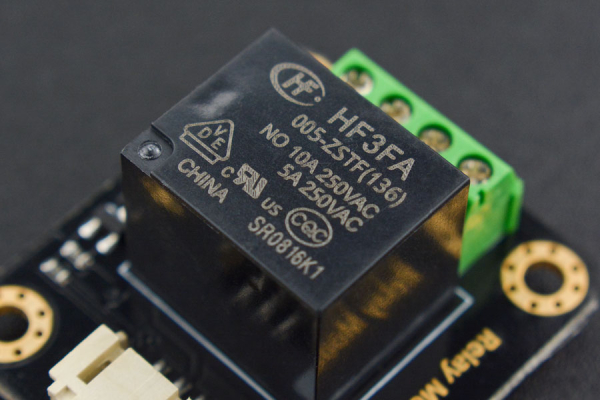

Contact Rating (Res. Load): 10A 250VAC / 24VDC
Max. switching voltage 250VAC / 30VDC
Max. switching current 15A
Max. switching power 250VA 240W
UL Rating: 10A 120VAC / 10A 250VAC
Operate time (at nomi. Vot.): 10ms
Release time (at nomi. Vot.): 5ms

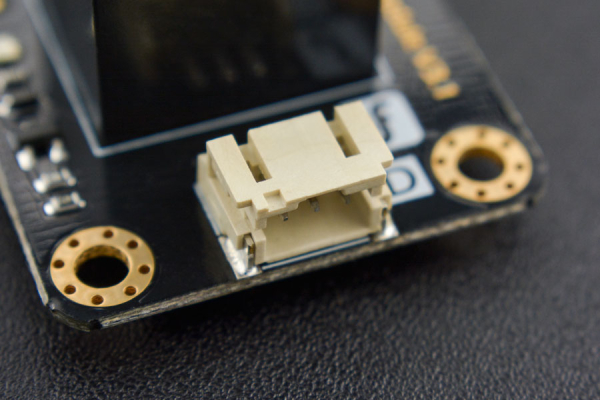

High quality connector
Immersion gold surface

Shipping List

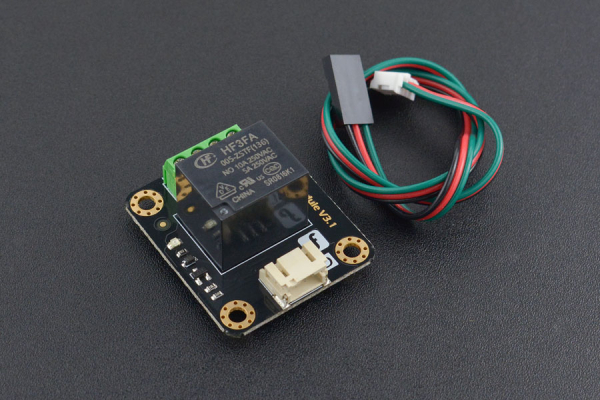

Gravity Relay Module V3.1 x1
Digital Cable x1
