Gravity: Flexible Piezo Film Vibration Sensor

DFRobot

Varenr. SEN0209

Gravity: Flexible Piezo Film Vibration Sensor

Name: Gravity: Flexible Piezo Film Vibration Sensor
Brand: DFRobot
SKU: SEN0209
Price: 97.50 DKK
Availability: OutOfStock

97,50

DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	97,50 DKK pr. stk.	-
5 stk.	85,00 DKK pr. stk.	Spar 13%
10 stk.	74,00 DKK pr. stk.	Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Documents

Product WIKI

Introduction

This is an Arduino compatible piezo film vibration sensor. It is made up of flexible piezo film and converter board. The sensor is able to detect vibration, flexibility, impact and touch.

The film is a flexible component comprising a 28 µm thick piezoelectric PVDF polymer film with screen-printed Ag-ink electrodes, laminated to a 0.125 mm polyester substrate, and fitted with two crimped contacts. As the piezo film is displaced from the mechanical neutral axis and bending creates very high strain within the piezo polymer, high voltages (about ±90V) are generated. When the assembly is deflected by direct contact, the device acts as a flexible "switch", and the generated output is sufficient to trigger MOSFET or CMOS stages directly.

The module uses universal Gravity 3Pin interface that is easy to plug and play. It comes with Digital and Analog two output signals, which is suitable for all kinds of different applications. The piezo vibration sensor is not only able to detect strong shocks, but also to detect slight vibrations. There is an on-board sensitivity adjustment potentiometer, you can adjust it to increase/decrease the output threshold value.

Meanwhile, the piezo film sensor has a wide dynamic range (0.001Hz~1000MHz) also guarantees an excellent measuring performance.

Specification

Operating Voltage: 5V

Interface Type: Gravity PH2.0 3Pin interface

Operating Temperature: 0 ° C to 85 ° C

Storage Temperature: -40 ° C to 85 ° C

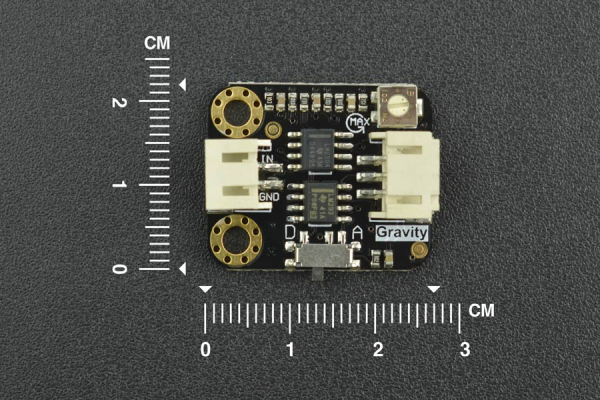

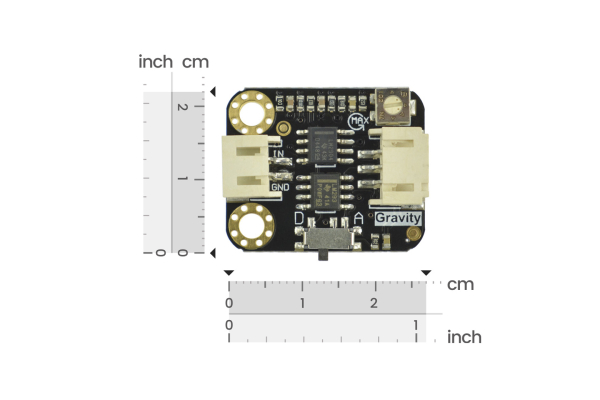

Dimension: 27mm * 22mm

Weight: 10 g

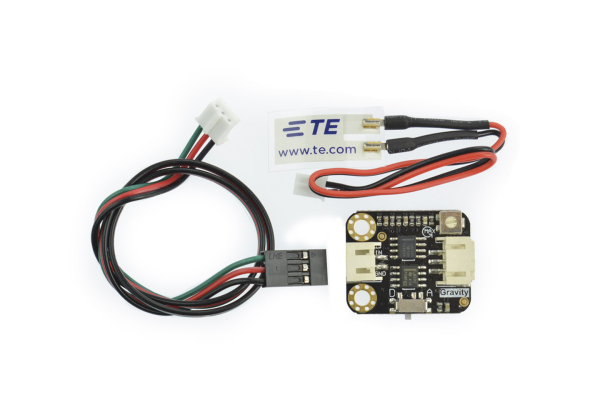

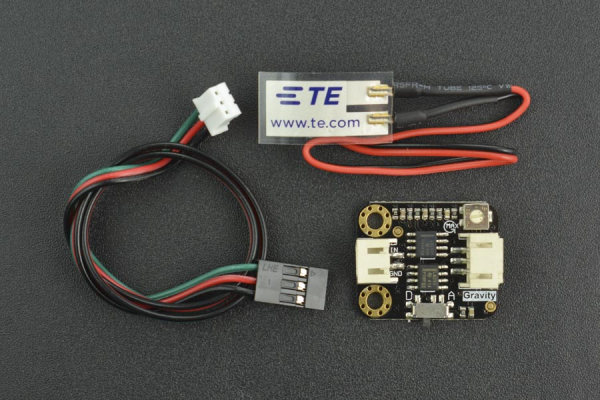

Shipping List

Piezoelectric Film x1

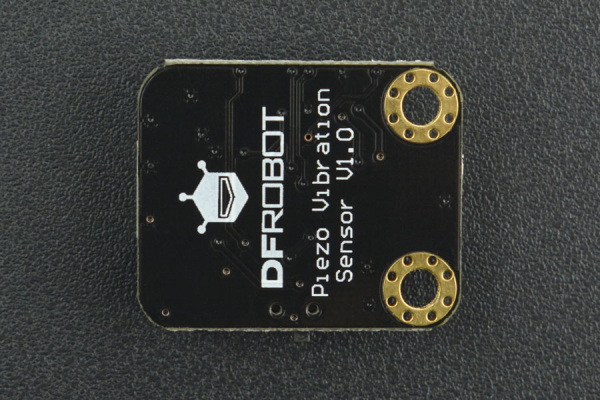

Sensor Converter Boardx1

Gravity 3-pin Digital Cable x1
