DFRobot

Varenr. DFR0464

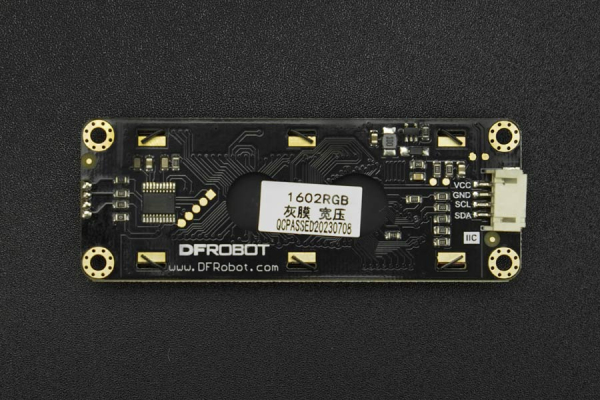

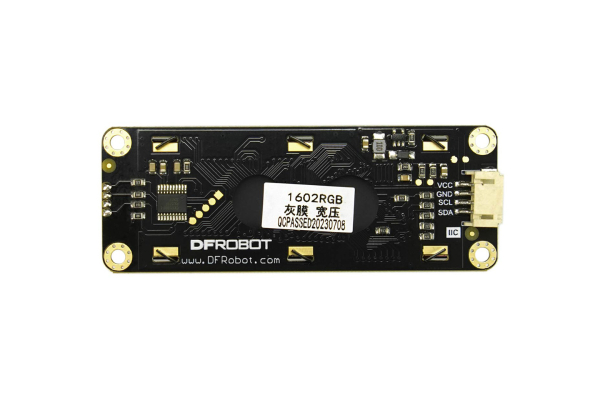

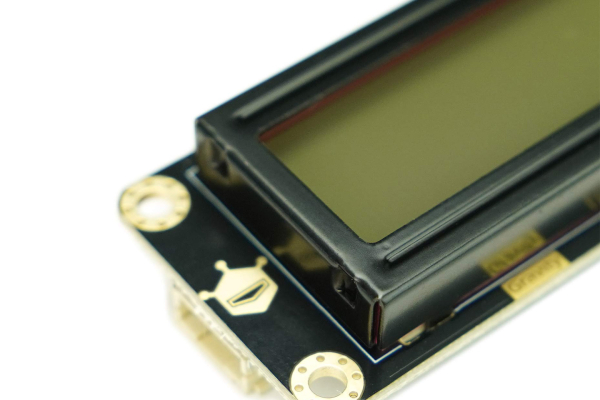

Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display

188,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

188,75 DKK pr. stk. -
168,00 DKK pr. stk.
Spar 11%
148,00 DKK pr. stk.
Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Product WIKI
More Documents

Introduction

Have you been fed up with Black/White LCD screen? Do you want to try a colorful one? DFRobot I2C 16x2 Arduino LCD with RGB Backlight Display module will bring you a new experience about screen. It comes with RGB full color backlight, which has 16 million kinds of color.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.
I2C 16x2 Arduino LCD with RGB Backlight Display - Introduction
DFR0464 Product Feature
DFR0464 Product Feature
DFR0464 Application Examples
DFR0464 Programming Examples
DFR0464 Programming Sample Codes
DFR0464 Product Display
DFR0464 Product Display
DFR0464 Product Display
DFR0464 Product Parameters
DFR0464 - дисплей 2x16 с i2c и RGB-подсветкой

ЖК-дисплей 16x2 с I2C и RGB подсветкой от DFRobot


Specification

  • Operating Voltage: 3.3V ~ 5.0V
  • Operating Current: <60mA
  • Display: 16 * 2
  • Communication: I2C
  • Backlight: RGB adjustable backlight (16 million)
  • Operating Temperature: -20 to + 70 ℃
  • Storage Temperature: -30 to + 80 ℃

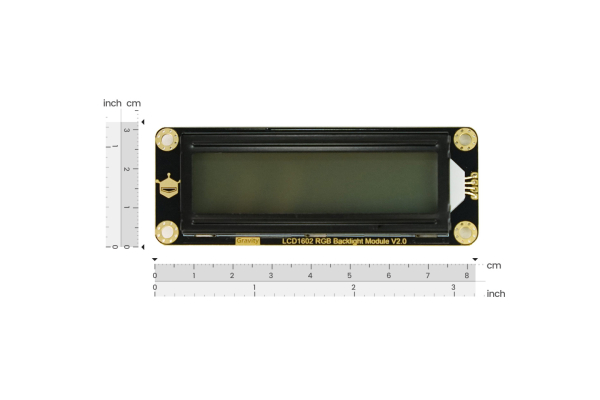

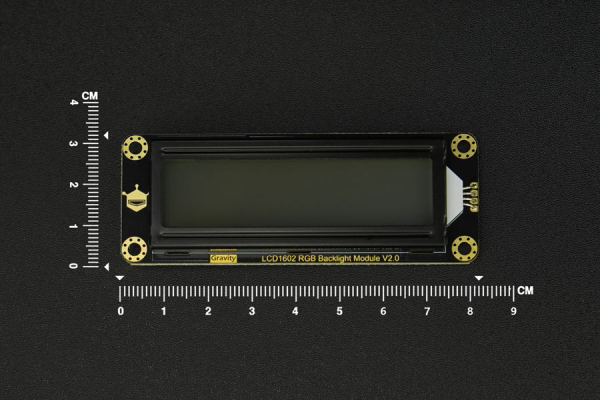

  • Dimension: 87.0 * 32.0 * 13.0mm/3.42 * 1.26 * 0.51 inches
  • Shipping List

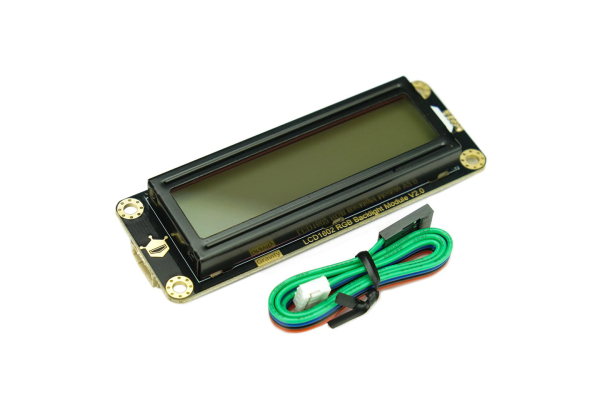

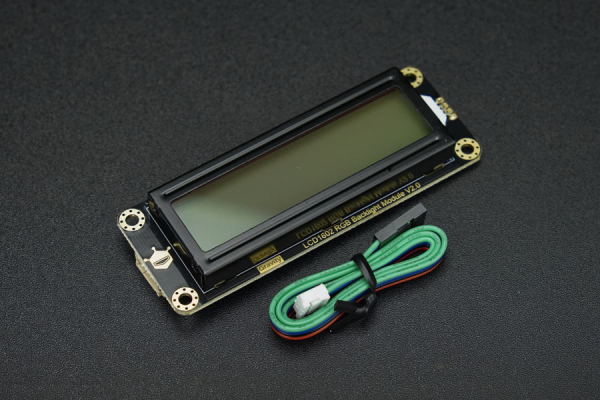

  • Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display x1
  • Gravity 4Pin I2C/UART Sensor Cable x1
