DFRobot

Varenr. DFR0117

Gravity: I2C EEPROM Data Storage Module

122,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

122,50 DKK pr. stk. -
108,00 DKK pr. stk.
Spar 12%
94,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

Arduino has a small amount of data storage space, The Arduino UNO has 32k. It doesn't have enough space if you want to store a lot of data. Therefore, we need to add an EEPROM Data Storage Module to increase its storage space. The EEPROM Data Storage Module transmit data to Arduino UNO using I2C Protocol. It used 24LC256 256K I2C CMOS Serial EEPROM provided by Microchip Techonogy Inc. 24LC256 is a 32K x 8(256Kbit) Serial Electrically Erasable Programmable Read - Only Memory. It can also be used with the Interface shield board by I2C on Board.

Specification

  • Power Supply:2.5V ~5.5V
  • Low-Power CMOS Technology
  • Read current: 400 uA max. at 5.5V, 400 kHz
  • Standby current: 1 uA max. at 3.6V, I-temp
  • Interface: I2C Protocol,2-Wire Serial Interface
  • EEPROM: 32K x 8 (256 Kbit)

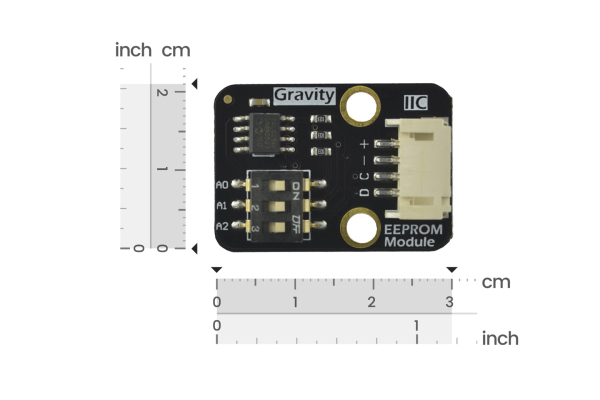

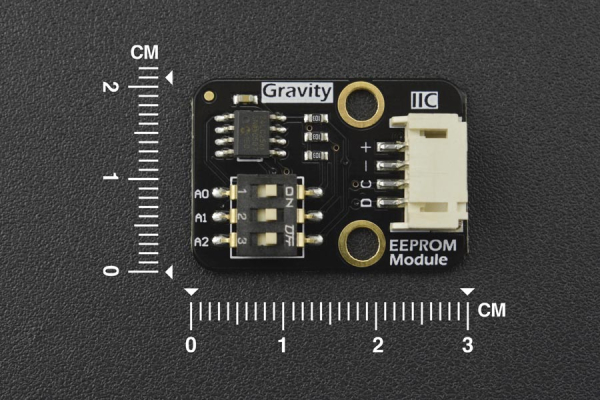

  • Size: 30.00*21.05(mm)
  • Mounting Hole Dia: 3.5mm
  • Ambient temperature with power applied: -40℃~+125℃
  • Weight: 10g

Shipping List

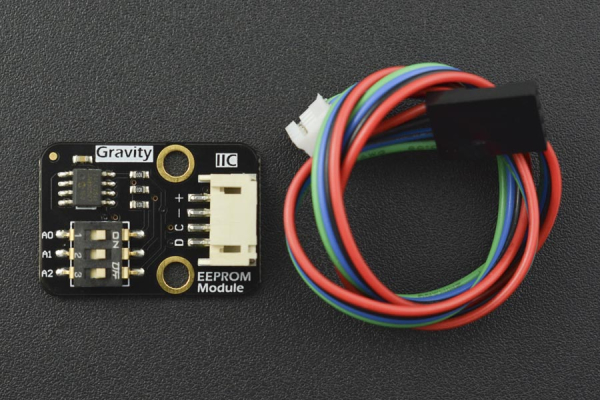

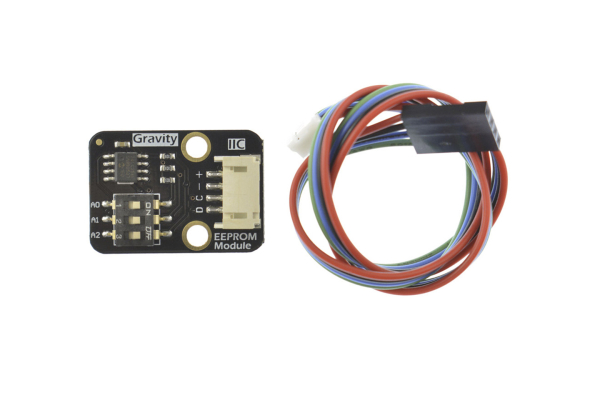

  • Gravity: I2C EEPROM Data Storage Module x1
  • Gravity I2C/UART sensor cable x1
