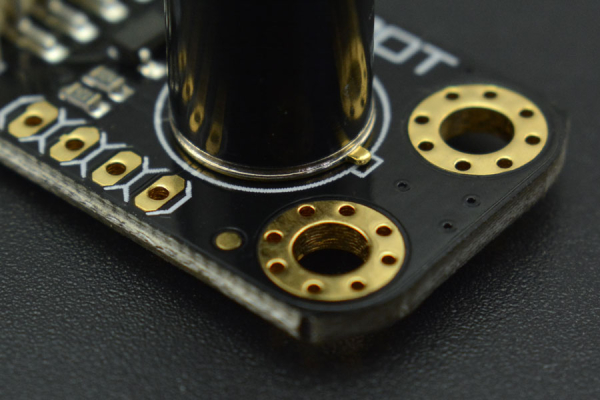

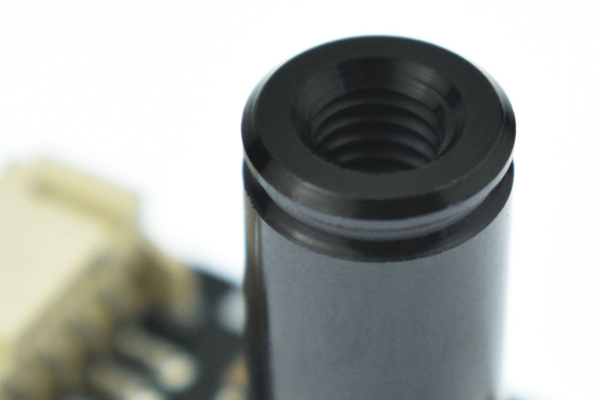

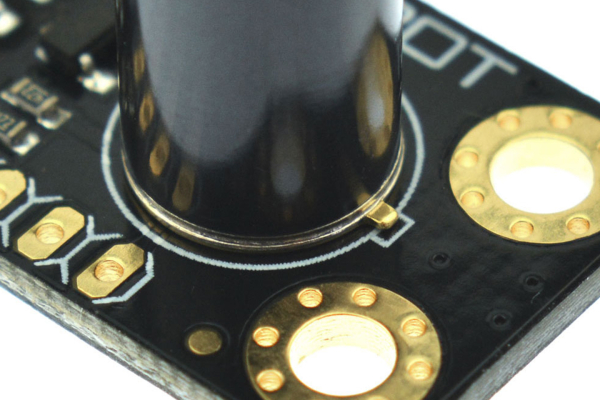

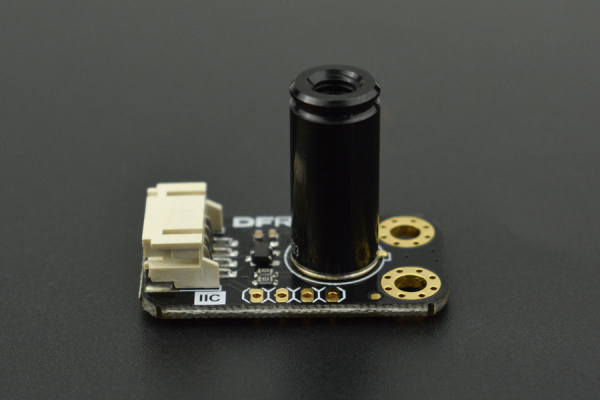

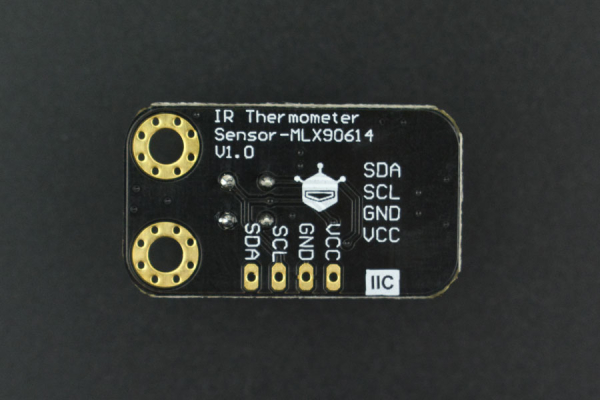

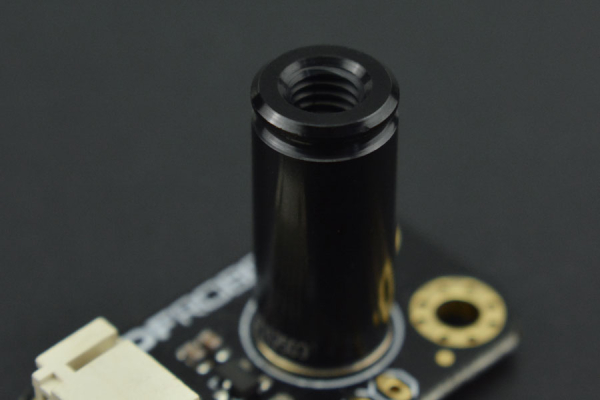

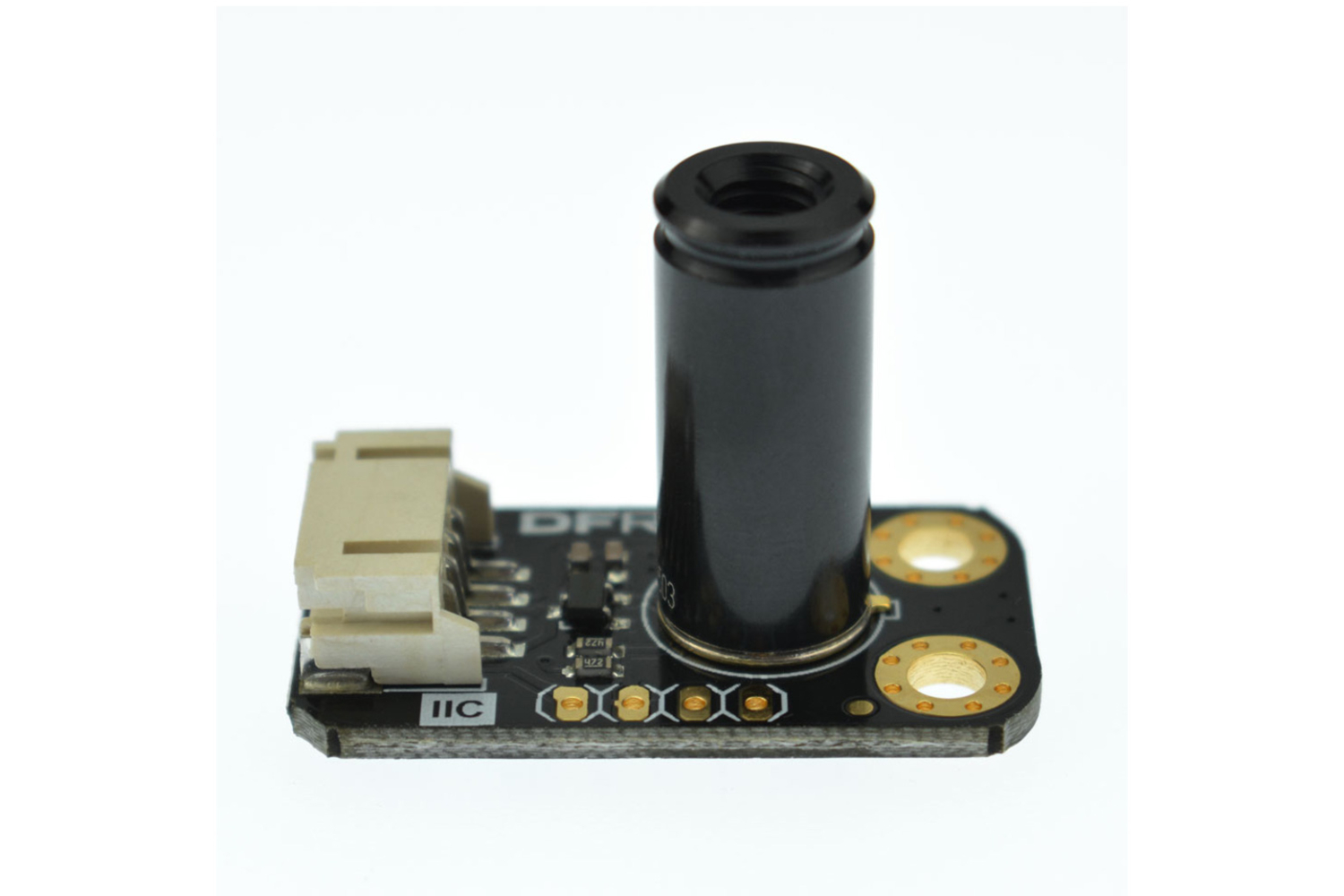

Gravity: I2C Non-contact IR Temperature Sensor (MLX90614-DCI)

733,75
DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

733,75 DKK pr. stk. -
707,00 DKK pr. stk.
Spar 4%
681,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • More Documents
  • Introduction

    We can divide temperature measurement in to two types: contact and non-contact. Contact measurement can only accurately measure temperature when the testing object and the sensor reach thermal equilibrium. This can mean longer response times and reading inaccuracies offset by ambient temperature. By contrast, non-contact measurement uses infra-red radiation to measure the temperature and does not require a direct touch. Additionally, this method of measurement can be read quickly and accurately.

    In recent years non-contact measurement methods have been used for medical, environmental monitoring, home automation, automotive electronic, aerospace and military applications.

    Our latest infrared temperature measurement module is the MLX90614. This module measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module. The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted in to corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted in to a temperature value. The MLX90614 is self calibrating and has a low noise amplifier integrated in to the signal processing chip. The chip itself is a 17-bit ADC and DSP device, giving accurate and reliable results.



    Gravity: I2C Non-contact IR Temperature Sensor (MLX90614-DCI), due to its small field of view (FOV = 5°), is more suitable for industrial applications where the detection distance can be longer. In general applications, you can use Gravity: I2C Non-contact IR Temperature Sensor For Arduino (MLX90614-DCC)

    Specification

  • Model: MLX90614-DCI
  • Operating Voltage: 3.3V - 5V
  • Operating Current: 1.2mA
  • Temperature: -70.01℃ to +270℃, (0.01 ℃ resolution)
  • Interface Type: I2C

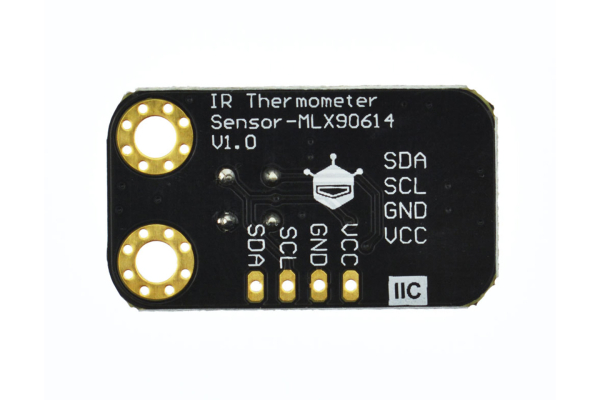

  • Interface Line Sequence: VCC, GND, SCL, SDA
  • FOV: 5°

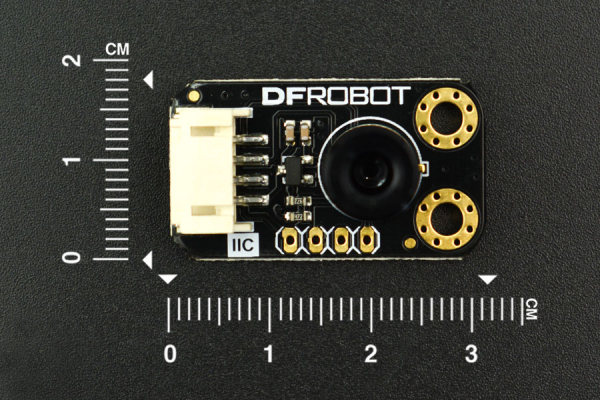

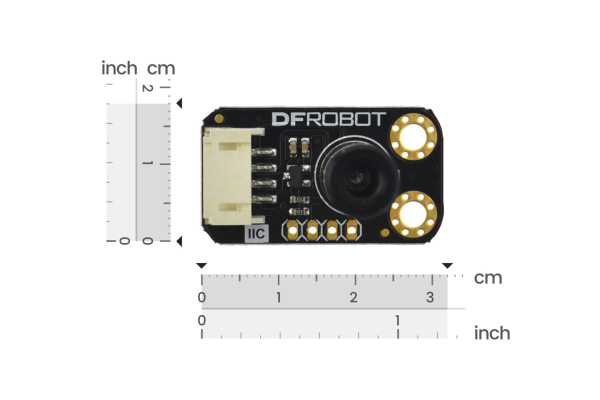

  • Dimensions: 31.5*18 mm/1.24 x 0.7 inches
  • Weight: 15g

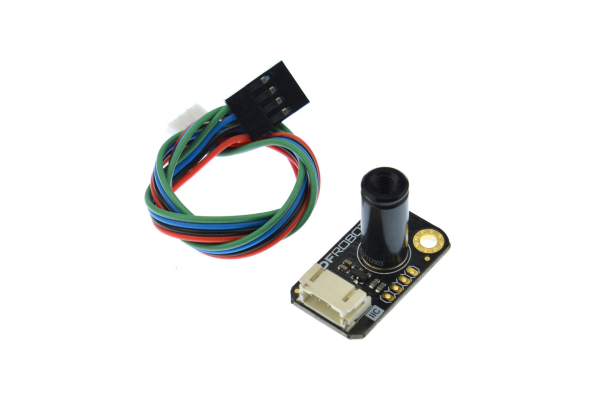

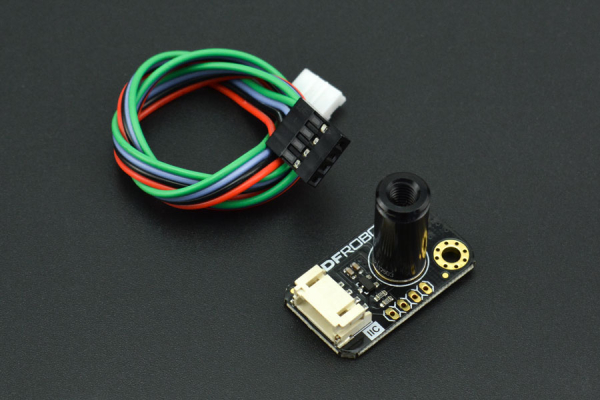

  • Shipping List

  • Gravity: I2C Non-contact IR Temperature Sensor x1
  • JST PH2.0 4-Pin cable x1
