DFRobot

Varenr. DFR0699

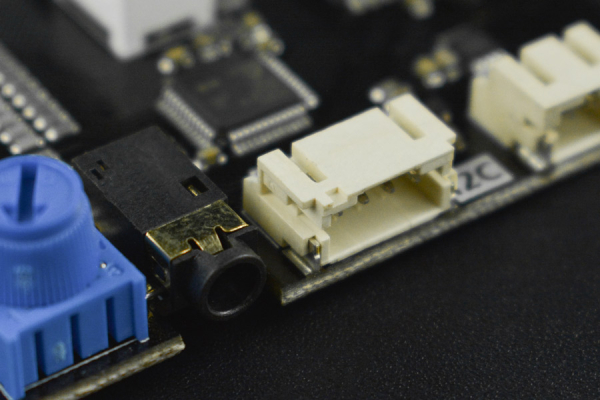

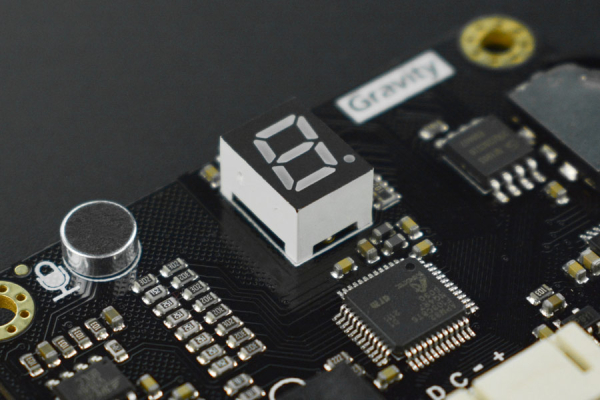

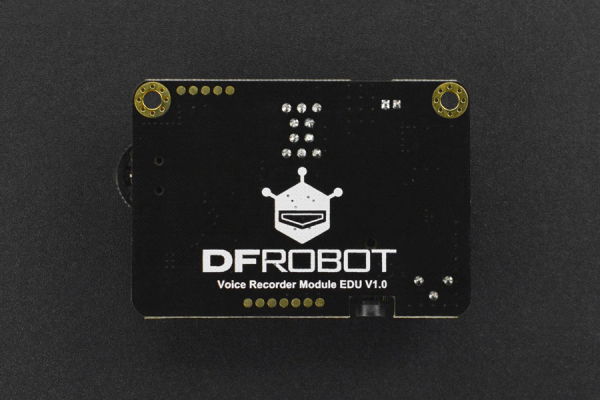

Gravity: I2C Voice Recorder Module EDU

158,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

158,75 DKK pr. stk. -
141,00 DKK pr. stk.
Spar 11%
124,00 DKK pr. stk.
Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    Gravity: I2C Voice Recorder Module EDU is DFRobot all-in-one voice interaction module, which integrates recording and playback functions into one.

    It can record with one button, and also supports Gravity: I2C interface for recording and playback by microcontroller. And support number synthesis reading function, simple programming can be directly broadcast temperature, humidity, voltage, time and other data, support headphones or speaker output, built-in amplifier plug and play.

    Help you easily add voice prompts or sound interaction for your projects.

    Development Board Compatible Not Compatible Not Tested
    Arduino AVR
    micro:bit
    mPython
    Firebeetle-ESP32

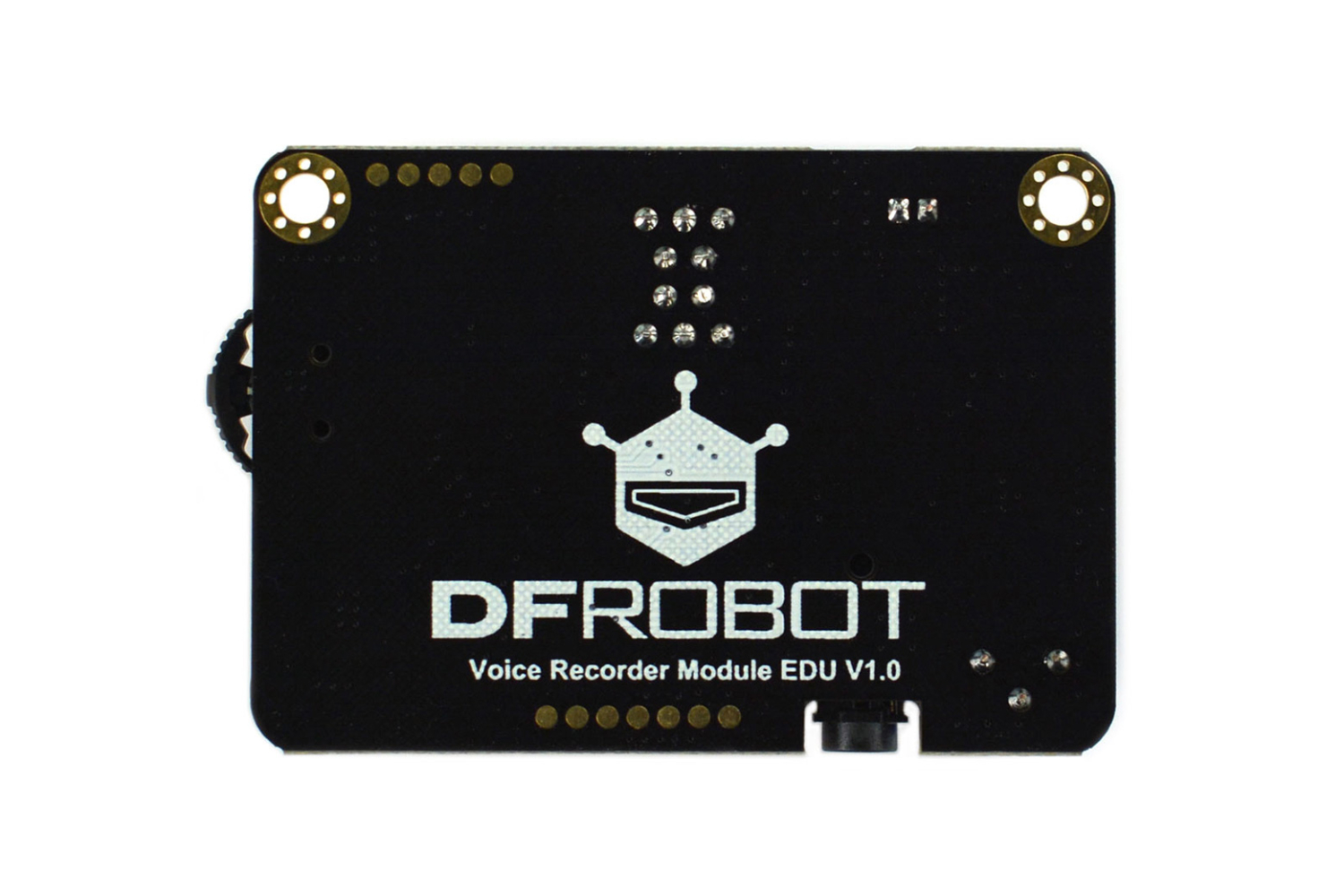

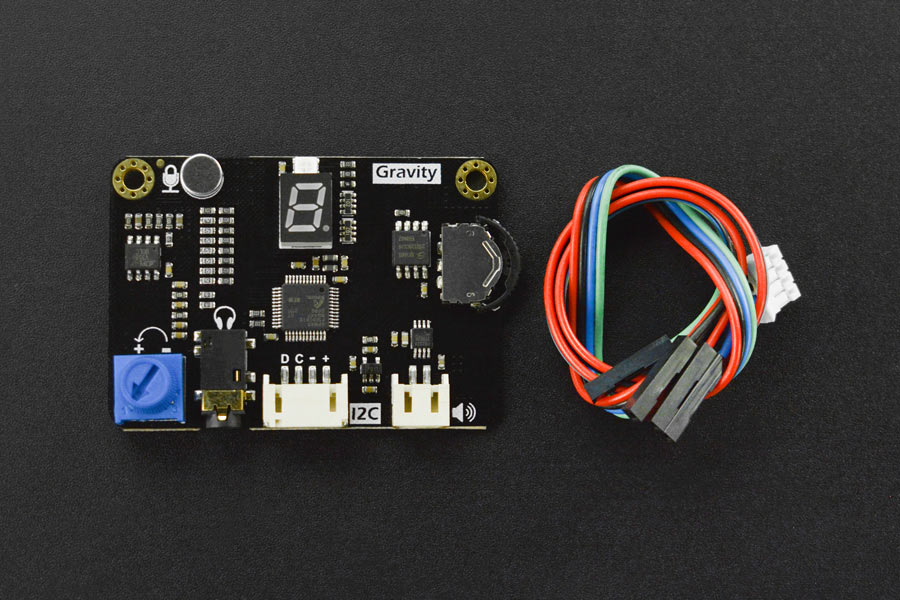

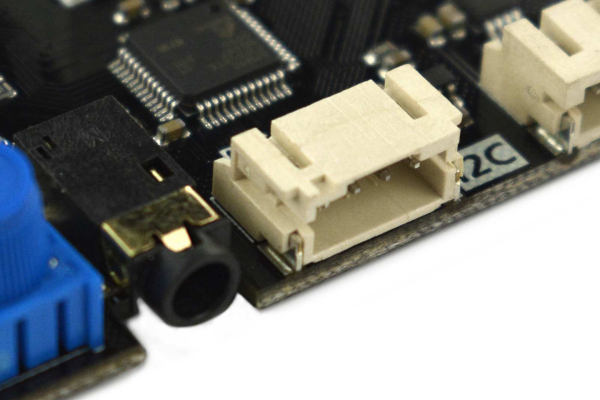

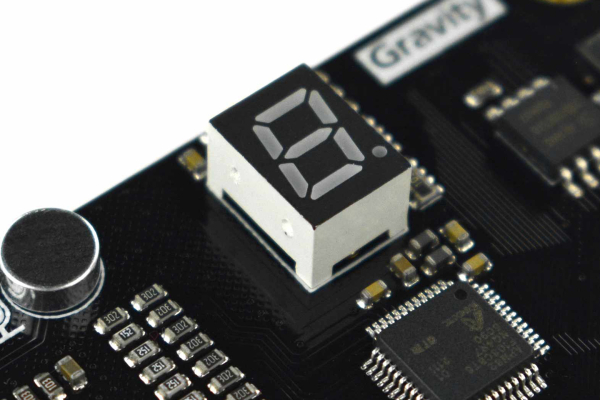

    Board Overview

    Features

  • Record with one button
  • Supports Gravity I2C interface
  • Support number synthesis reading function
  • Support headphones or speaker output
  • Built-in amplifier plug and play
  • Specification

  • Operating Voltage: 3.3~5V
  • Communication Interface: Gravity I2C
  • I2C Address: 0x30~0x39 (Adjustable)
  • Recording Function: Can store up to 10 segments of 100s audio
  • Speech Synthesis: -999999999.999999999 to 999999999.999999999 (Number Synthesis Reading Function)
  • Audio Output 1: 3.5mm Headphone Port
  • Audio Output 2: PH2.0 Speaker Port

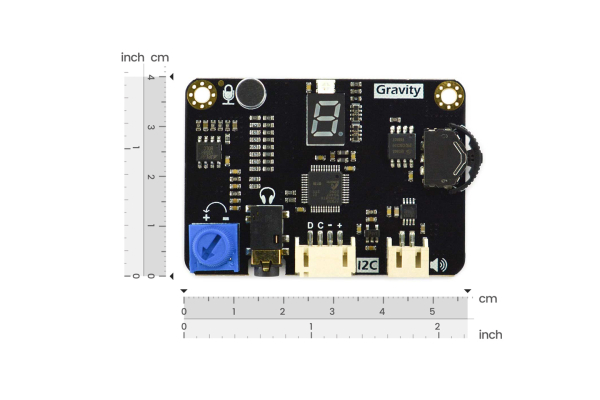

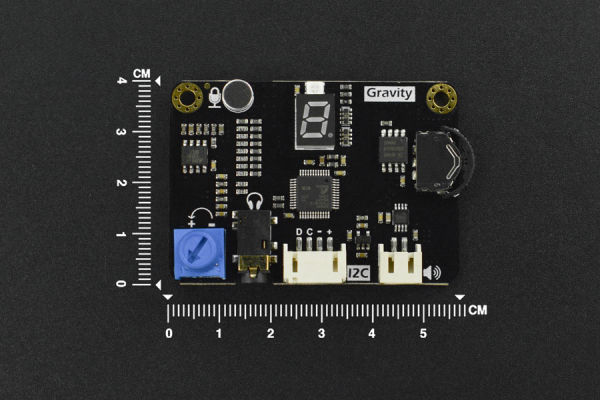

  • Dimension: 57x40mm
  • Shipping List

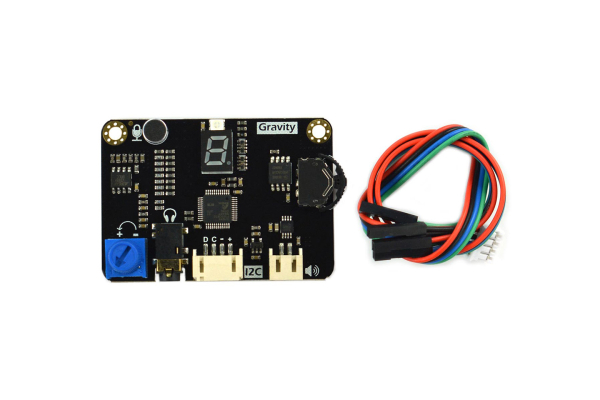

  • Gravity: I2C Voice Recorder Module EDU x1
