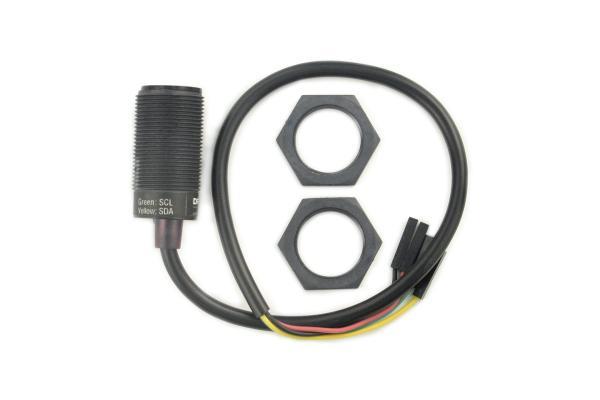

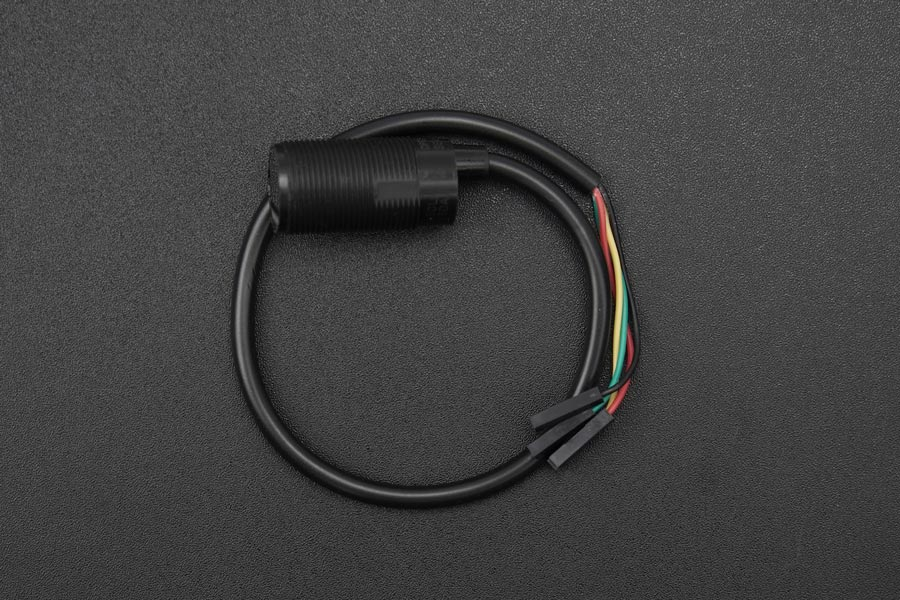

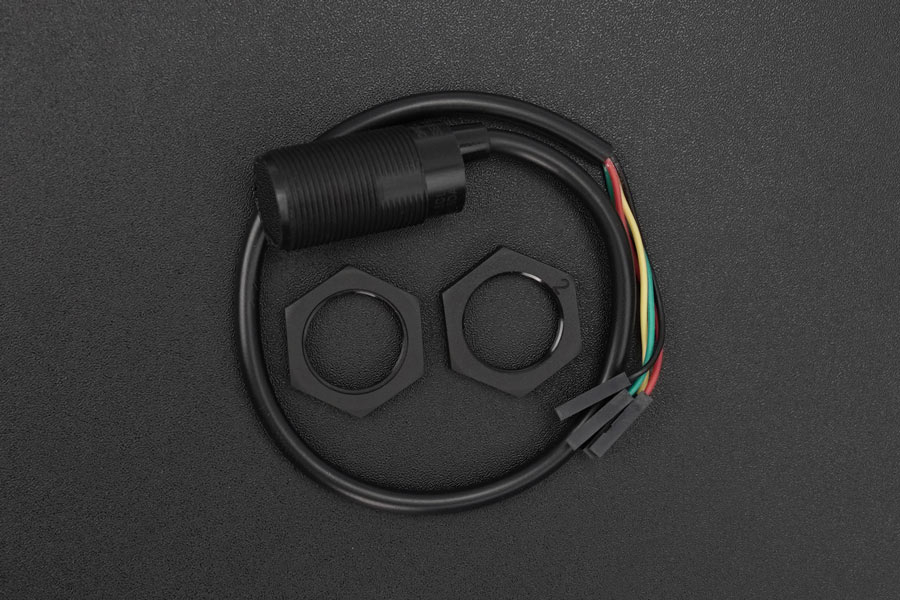

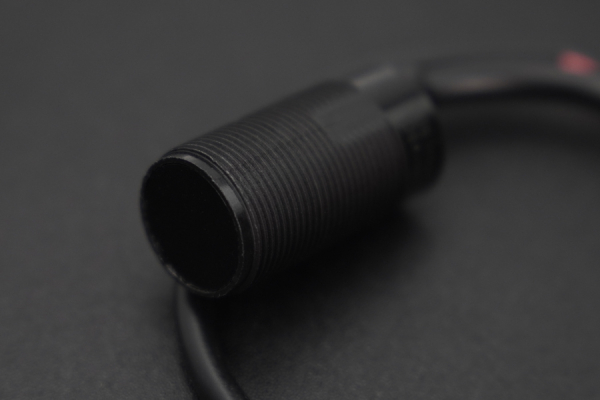

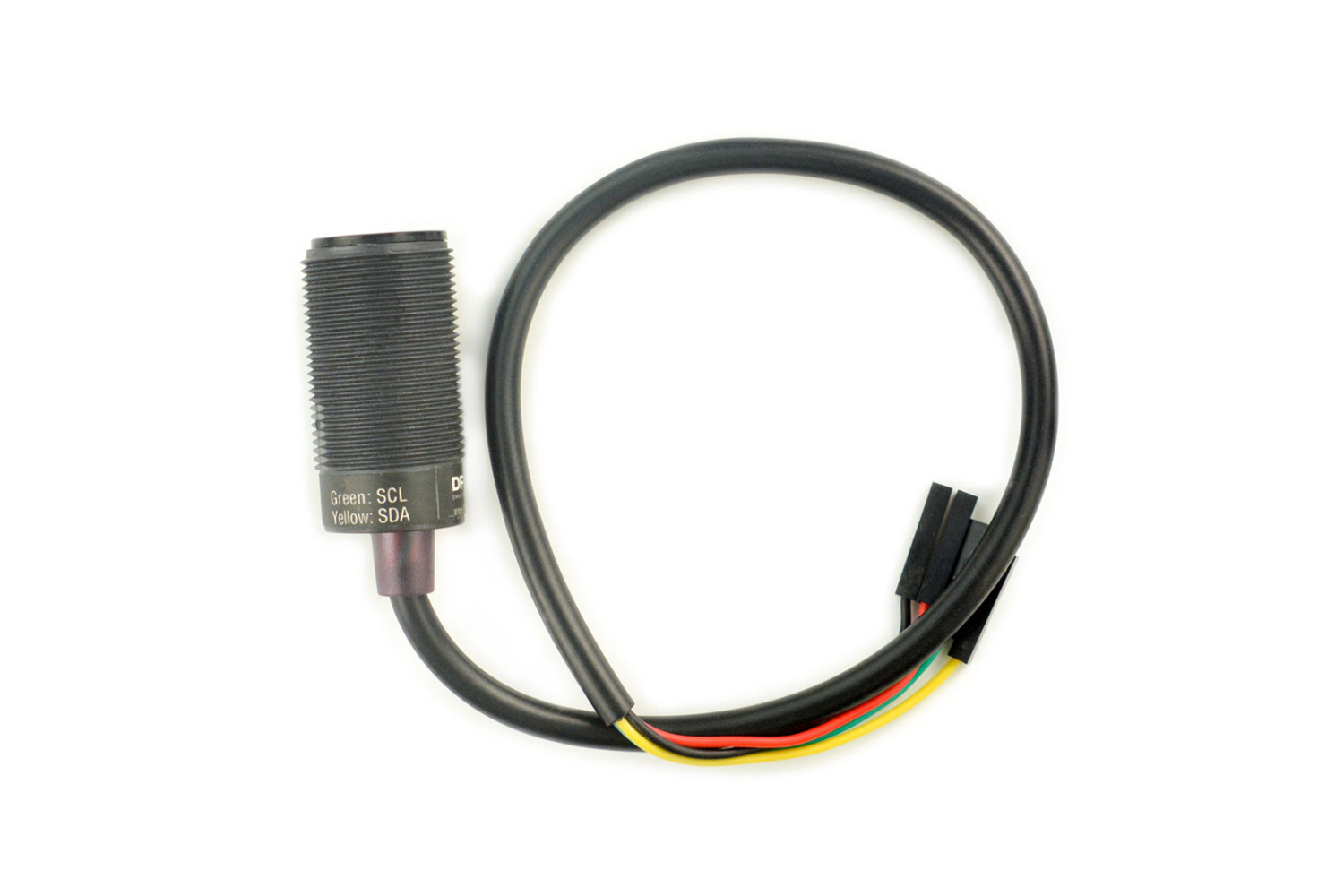

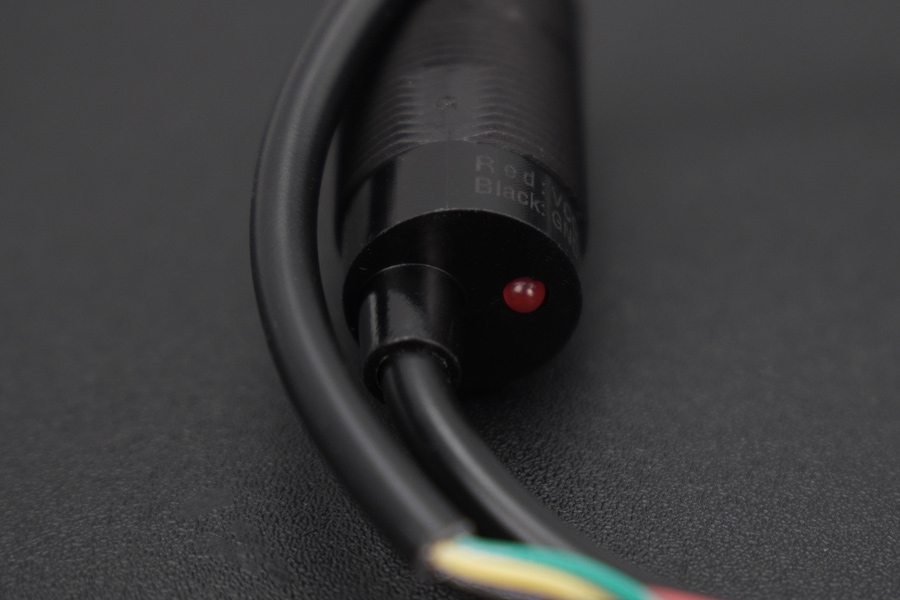

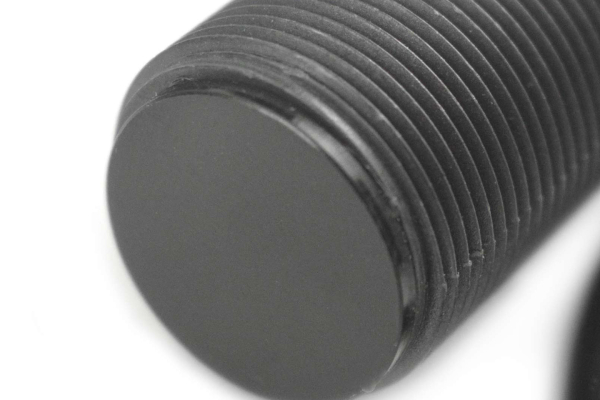

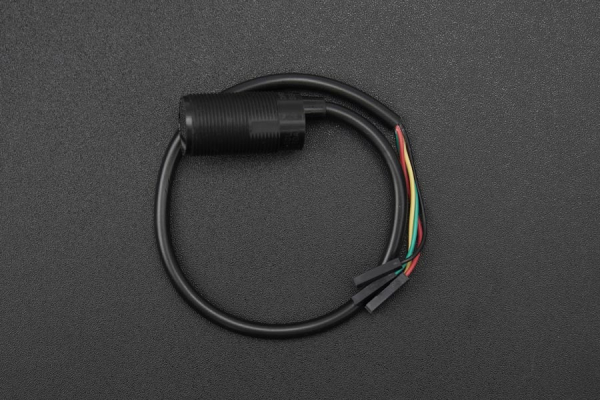

Gravity: IR Positioning Camera For Arduino

DFRobot

Varenr. SEN0158

Gravity: IR Positioning Camera For Arduino

348,75

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	348,75 DKK pr. stk.	-
5 stk.	321,00 DKK pr. stk.	Spar 8%
10 stk.	293,00 DKK pr. stk.	Spar 16%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

TUTORIAL

IRCameraMidi

Arduino

2018-08-08 10:55:30

Documents

Introduction

Want a robot to hunt down heat objects or navigated with fire? This is a small form factor IR camera capable of tracking up to four heat/IR sources. The applications are plenty and can go from tracking of robots with IR transmitters for navigation to light barriers, determining the direction where the object is going, and working as a flame sensor or tracking heat sources. It's fully compatible with Arduino with only four wires: two for power supply and two for I2C.

This infrared positioning camera can be controlled with Arduino, AVR via I2C interface. It is able to track mobile infrared points and to transmit the data back to host. The horizontal angle of camera is 33 degrees while the vertical angle is 23 degrees. It returns up to four points at a time when identifies an object. With advantages of high resolution, high sensitivity, high accuracy, small build and light weight, this Positioning IR Camera an be widely used in robot automatic search, robot soccer game, mobile trajectory recognition.

Whats more, this IR Camera can be used in making a low cost electronic whiteboard, touch screen and virtual reality headset, as seen in Johnny Lee's TED presentation about cheap Wii remote hacks.

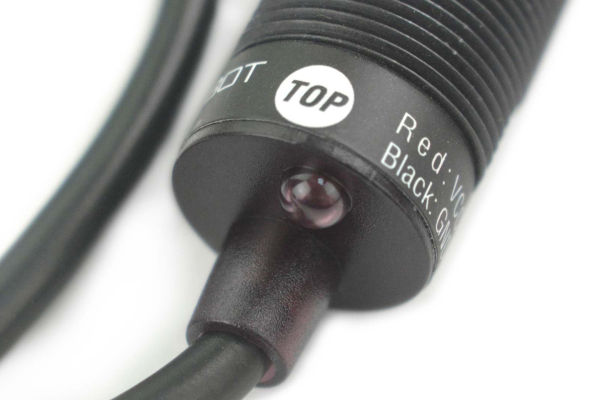

Warning: Make sure the user knows about the power supply either directly on the sticker on the module or/and in the manual.

real-time position tracking with arduino and processing via I2C interface

Specification

Operating voltage: 3.3-5v
Interface: I2C
Detecting distance: 0~3m
Horizontal detecting angle: 33 degrees
Vertical detecting angel: 23 degrees
Dimensions: 32mm x 16mm(1.26x0.63")
Resolution is 128x96 pixel, with hardware image processing, which can track four objects (IR emitting or reflecting objects)

Shipping List

Positioning IR Camera x1
