Varenr. SEN0518

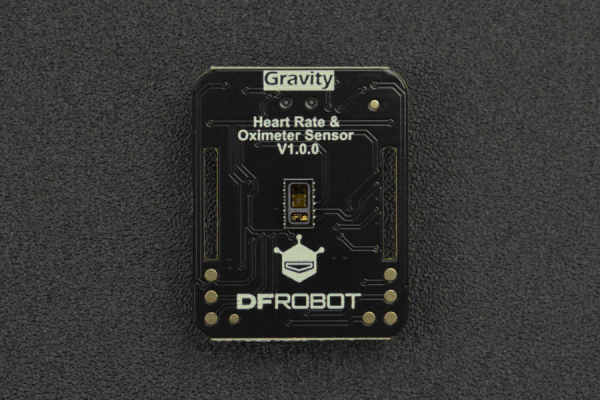

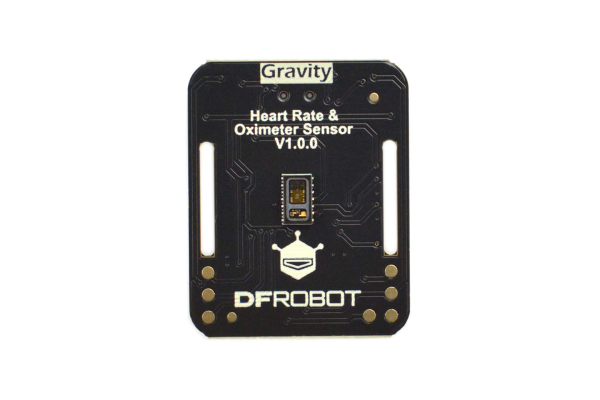

Gravity: MAX30102 Heart Rate and Oximeter Sensor

327,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

327,50 DKK pr. stk. -
300,00 DKK pr. stk.
Spar 8%
273,00 DKK pr. stk.
Spar 17%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Schematics
  • Dimension
  • MAX30102 Datasheet
  • Introduction

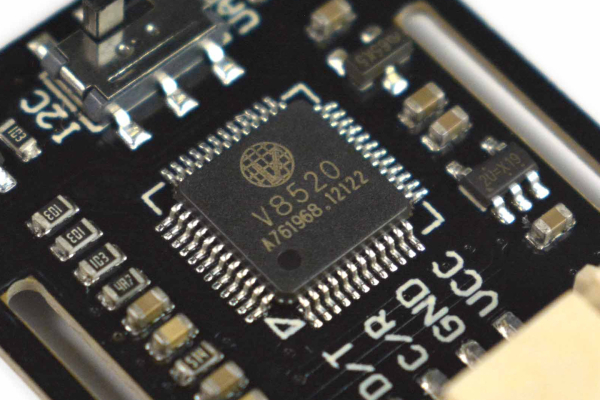

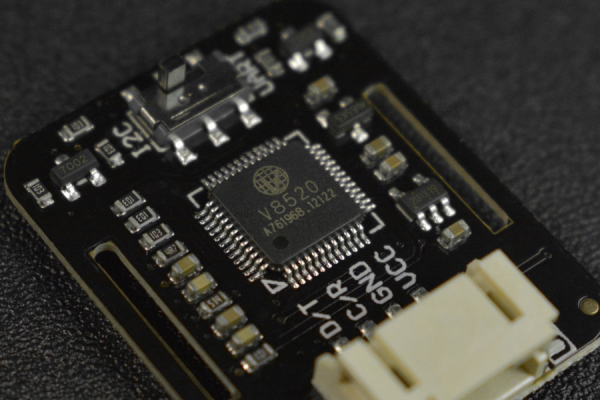

    DFRobot Gravity: MAX30102 heart rate and blood oxygen sensor module integrates the Maxim MAX30102 chip and an MCU with heart rate and blood oxygen algorithm.

    The MAX30102 uses PPG(PhotoPlethysmoGraphy) to measure data, which will be converted into heart rate and oximetry values when processed by the MCU, then output through I2C or UART, making the sensor easy to use and greatly reducing resource occupation of the main controller. Meanwhile, the corresponding upper computer is provided to allow you to conveniently read data by a PC.


    Note:

  • The pressure may change when the finger is directly pressed down the sensor, which will affect the data output. So please try to fix the sensor on your finger.
  • Wear the sensor on your finger and there is no difference in the direction of wearing.
  • This product is not a professional medical instrument and should not be used as an auxiliary accessory in diagnosis and treatment
  • Gravity: MAX30102 Heart Rate and Oximeter Sensor

    Wear Instructions


    Gravity: MAX30102 Heart Rate and Oximeter Sensor

    Connect with DFRduino UNO R3


    Gravity: MAX30102 Heart Rate and Oximeter Sensor

    Connect with Raspberry Pi

    Features

  • Microcontroller with algorithm integrated
  • Data can be read directly through the host computer
  • Specification

  • Power Supply Voltage: 3.3V/5V
  • Working Current: <15mA
  • Communication Method: I2C/UART
  • I2C Address: 0x57
  • Serial Port Baud Rate: 9600
  • Operating Temperature Range: -40℃~85℃

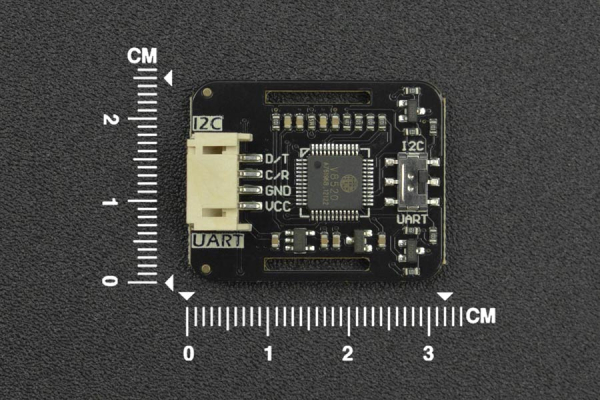

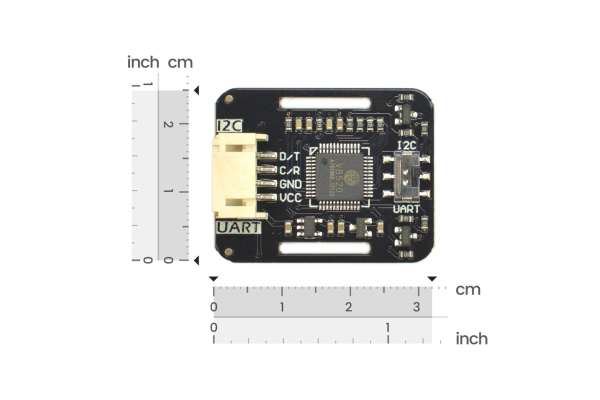

  • Product Size: 25.5×32mm/0.98×1.26inch

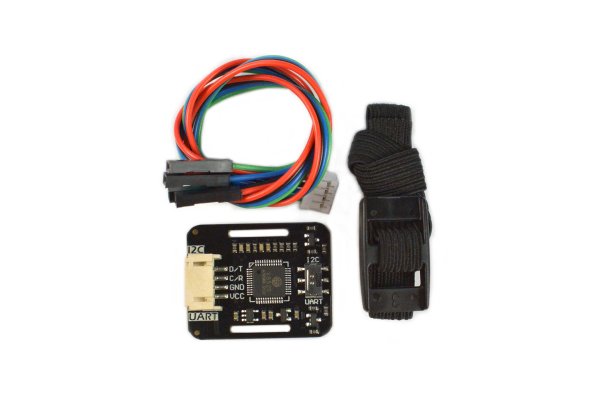

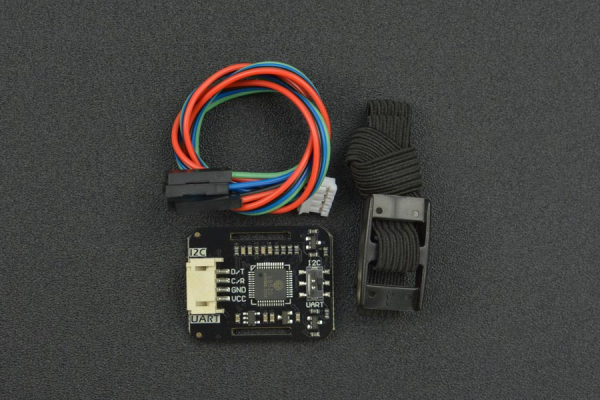

  • Shipping List

  • Gravity: MAX30102 Heart Rate and Oximeter Sensor x1
  • Gravity-4P I2C/UART Sensor Connector x1
  • Strap x1
