Varenr. SEN0116

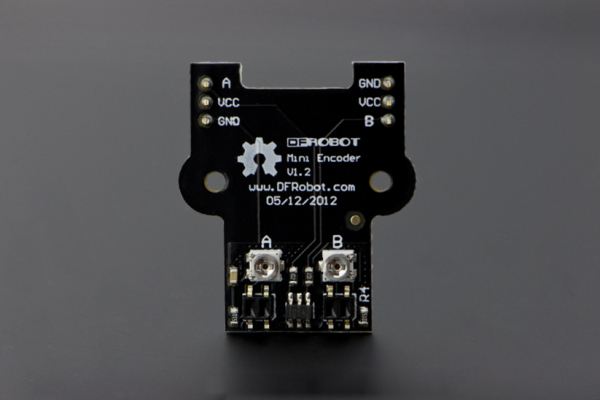

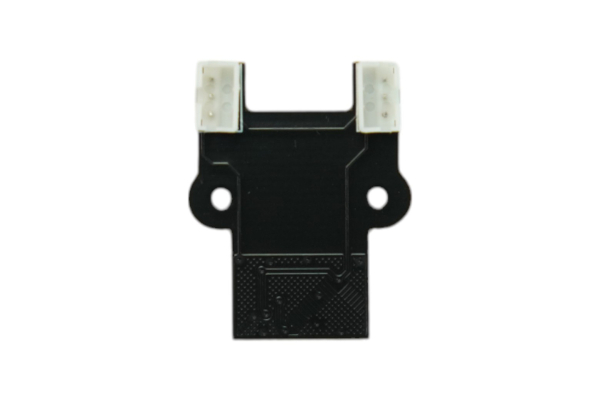

Gravity: MiniQ Robot Chassis Encoder

75,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

75,00 DKK pr. stk. -
65,00 DKK pr. stk.
Spar 13%
56,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents


Introduction

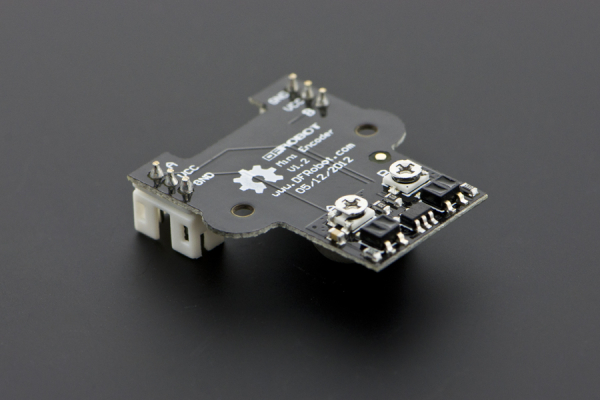

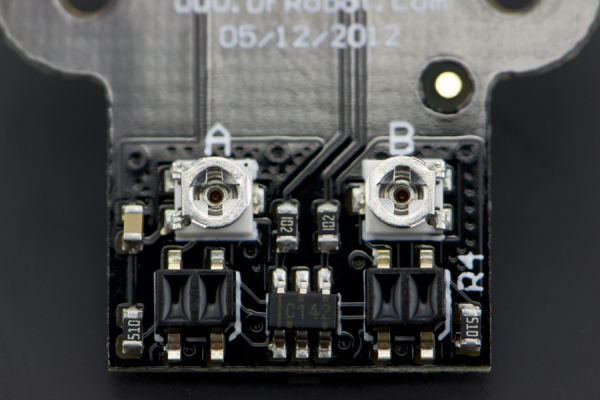

This encoder is matched with 2wd miniQ Robot chassis. AB two-phase pulse wave,measured by two infrared reflective sensor. These two sensor pulse waveform is close to a phase difference of 90 degrees, through the AB two-phase lead and lag of the waveform judged wheel forward rotation or the reverse.

You can install it on the motor bracket or mini robot chassis to do the PID and position control.

The only difference between the new and old version is that the interface is compatible with sensor cable.It's more easy to use!
Note: Infrared receiver sensitivity should be adjusted by oscilloscope before use.If you want to work in 3.3V,please short current R4 .

Specification

  • Working Voltage:3.3V or 5V
  • Working Current:<14mA @5V
  • Pulse Output:12 per revolution
  • Compatibility:42mm x 19mm (1.65 x 0.75") wheel
  • Adjustable receiver sensitivity



Shipping List

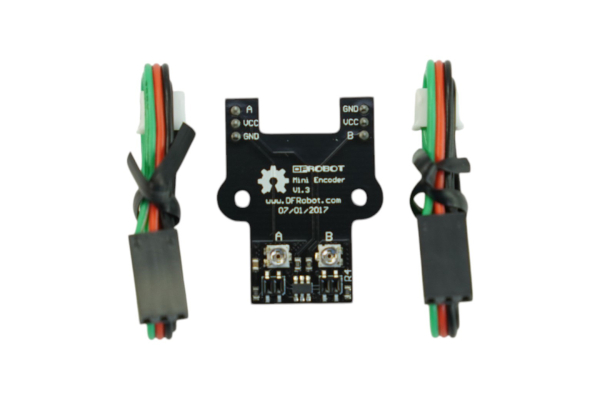

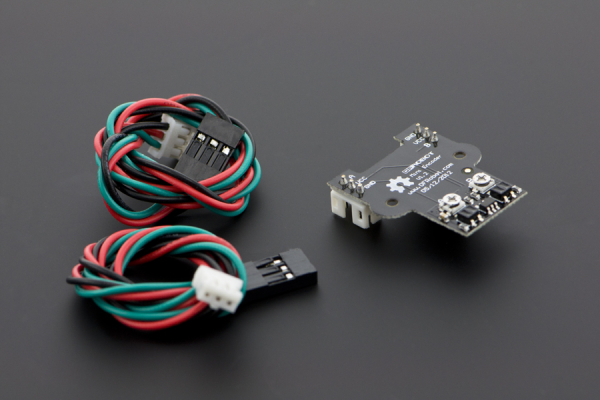

  • Mini Robot chassis Encoder     x1
  • Sensor Cable                   x2
