Varenr. SEN0508

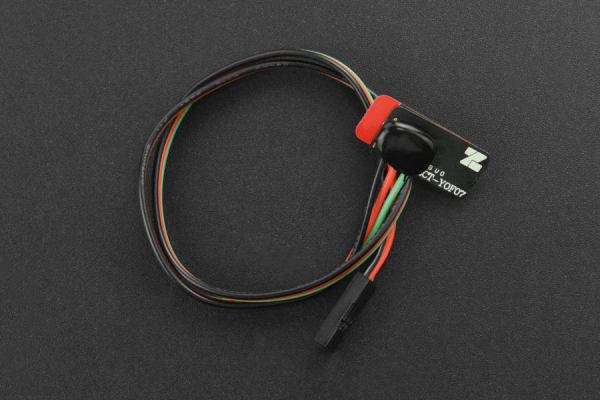

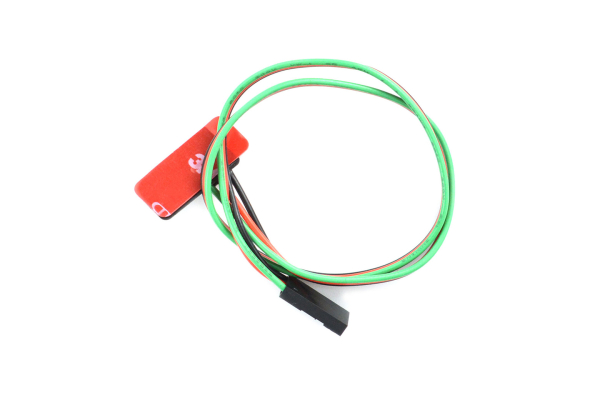

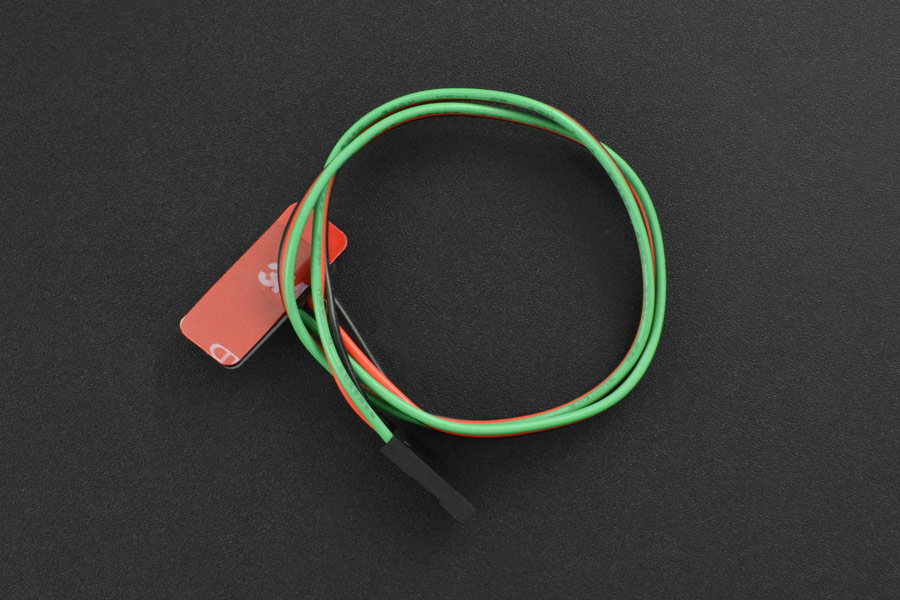

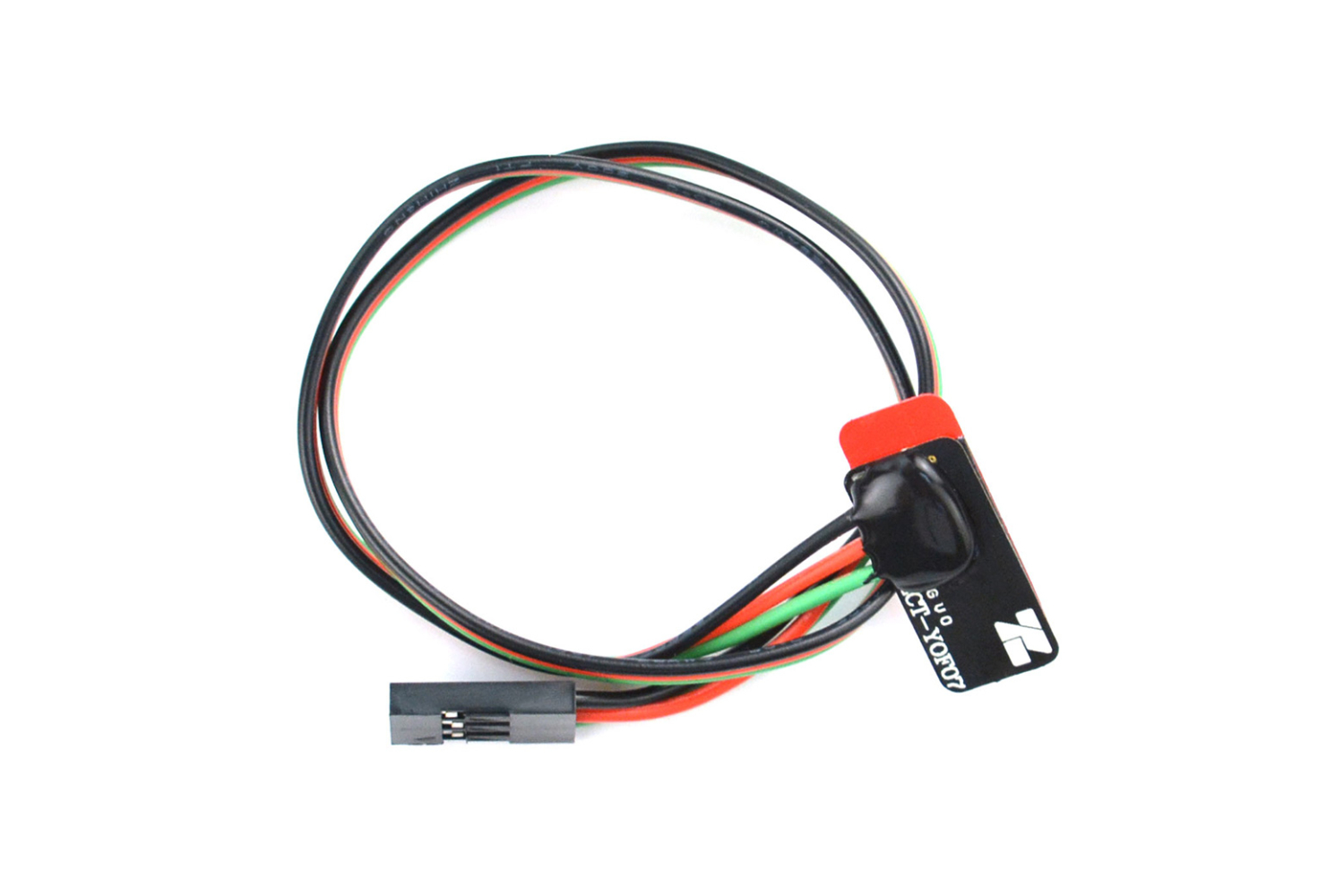

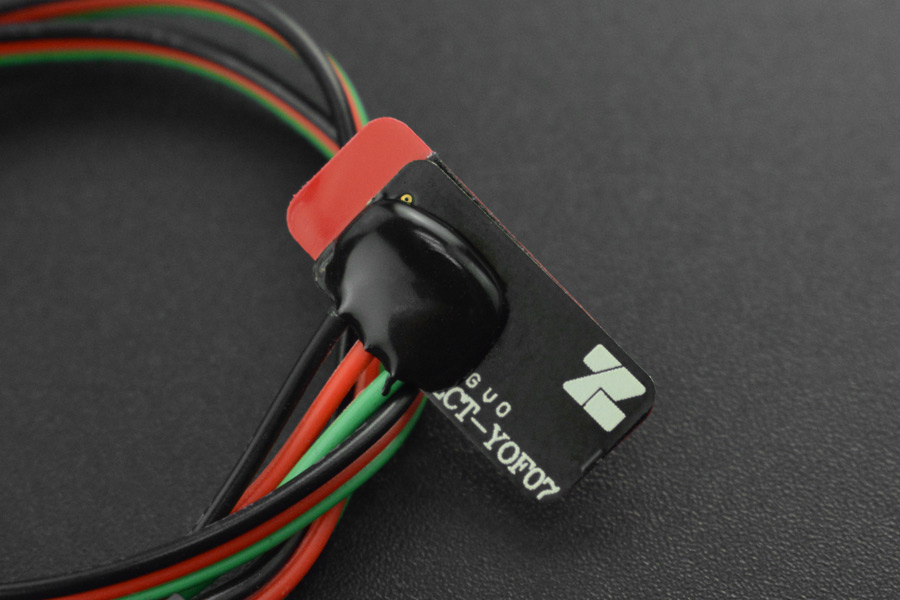

Gravity: Non-contact Capacitive Flexible Liquid Level Sensor

158,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

158,75 DKK pr. stk. -
141,00 DKK pr. stk.
Spar 11%
124,00 DKK pr. stk.
Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    This non-contact capacitive liquid level sensor uses flexible substrate with light and thin design. With temperature-resistant and waterproof 3M adhesive tape on the back, it can be easily attached on surfaces of any kind of non-conductive container whose thickness is less than 5mm.

    The sensor outputs digital high/low level (low when liquid detected) and adopts 3-pin DuPont connector, which can be widely used in water tank detection, beverage machine, water pipe level detection, scientific experiment test tube level detection and other scenarios.


    Working Principle

    The intelligent liquid level sensor uses the sensing capacitance of water to detect the presence of liquid. When there is no liquid approaching the sensor, the sensor has a certain static capacitance due to the distributed capacitance. When the liquid level slowly rises close to the inductor, the parasitic capacitance of the liquid will be coupled to the static capacitor, causing the final capacitance of the inductor to become larger. The changed capacitance signal is then input to the control IC for signal conversion, which will change. The capacitance is converted into the amount of change of an electrical signal, and then a certain algorithm detects and judges the degree of the change. When the amount of change exceeds a certain threshold, the liquid level is considered to reach the sensing point.

    Non-contact Flexible Liquid Level Sensor

    Dimension

    Connection Diagram

    Features

  • With light and thin design
  • Can be attached on surfaces of non-conductive container
  • Specification

  • Working Voltage: 2.5~5.5VDC
  • Working Current: 5V290uA 3V235uA
  • Output: low (liquid detected), high level(no liquid detected)
  • Thickness Range(TR): 5mm
  • Hysteresis: ±0.25%FS
  • Protection Level: IP62
  • Working Temperature: -30~85℃
  • Weight: 2g
  • Shipping List

  • Gravity: Non-contact Capacitive Flexible Liquid Level Sensor x1
