DFRobot

Varenr. SEN0486

Gravity: Ring 2D QR Code Scanner

532,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

532,50 DKK pr. stk. -
514,00 DKK pr. stk.
Spar 3%
496,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    This highly integrated QR code scanner with excellent performance can recognize common 1D codes and 2D codes. With a small size, it employs easy-to-connect Gravity Interface and is equipped with a colorful indicator that feeds back the sensor recognition status by showing different colors.

    Operating at 3.3V/5V, the scanner is compatible with UART and I2C communication, which makes it easier to develop on controllers like Arduino, ESP32, Raspberry Pi, etc.

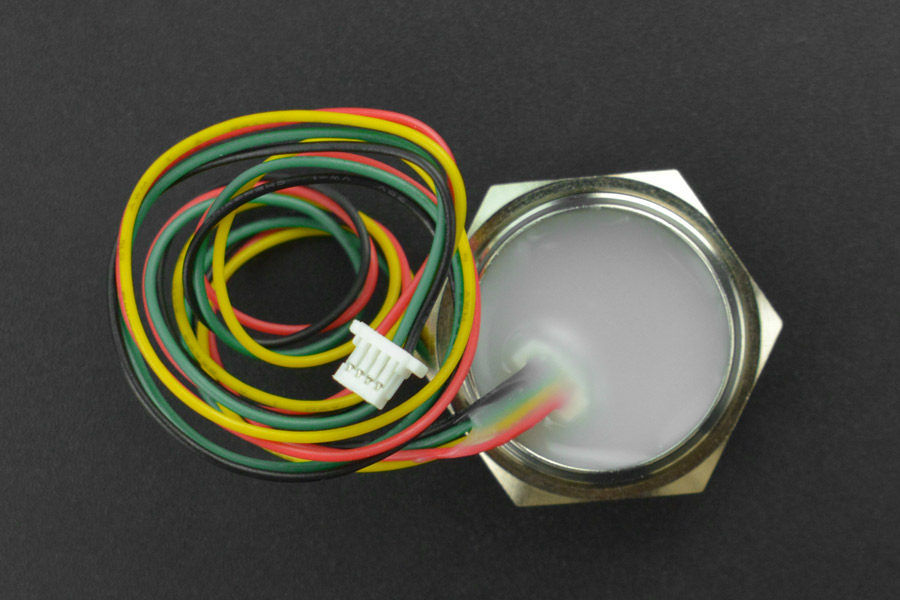

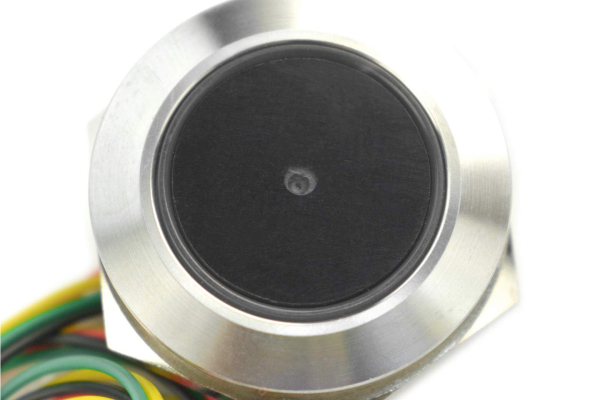

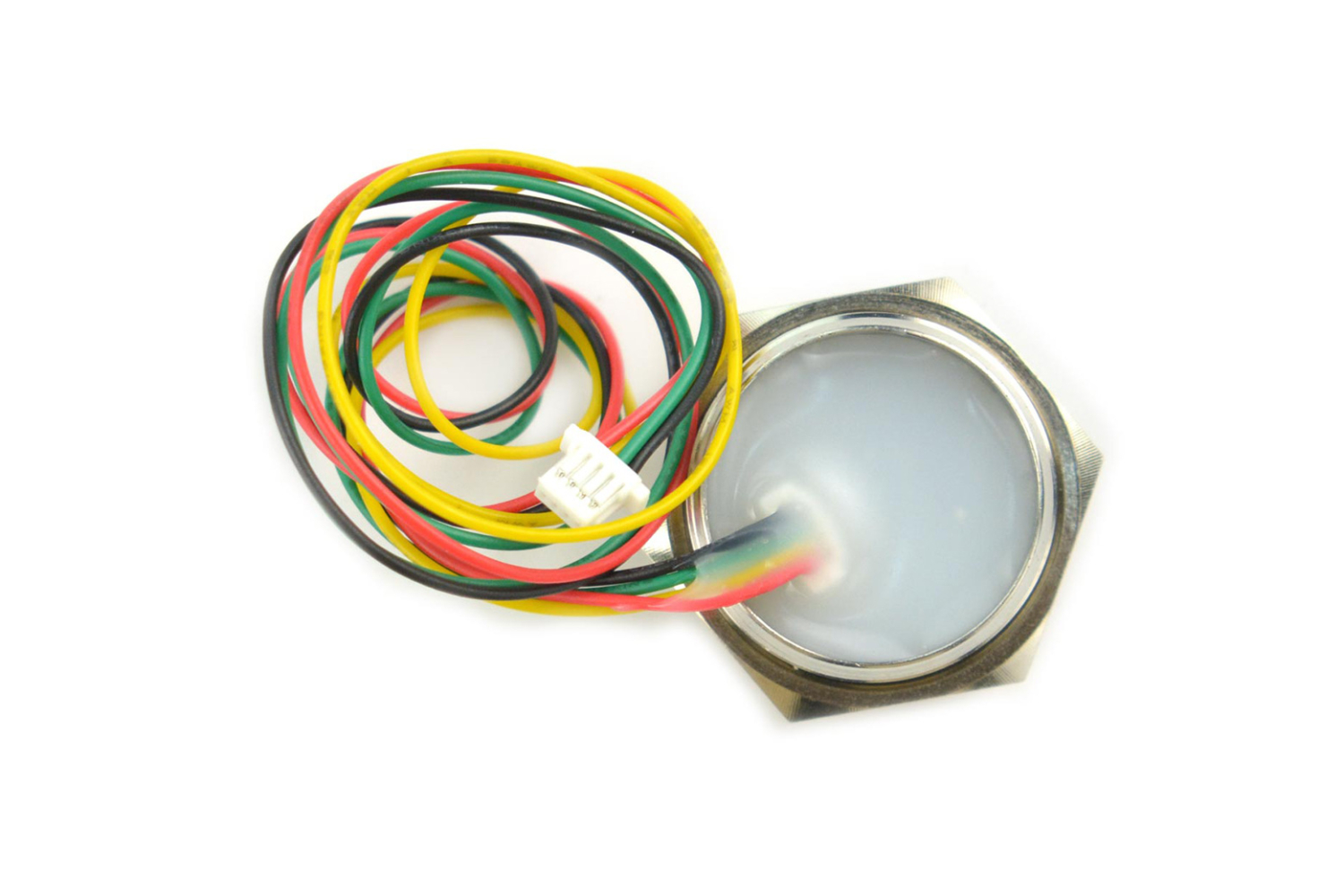

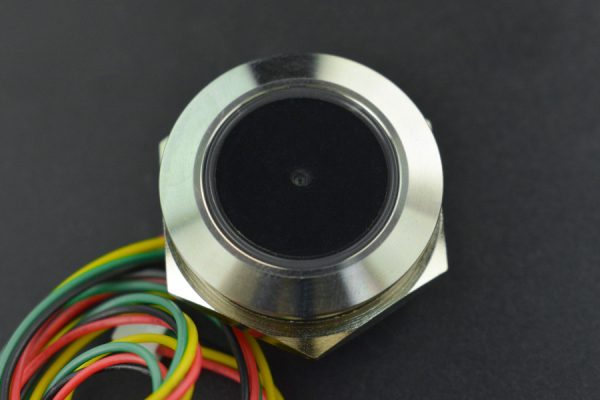

    Gravity:Ring 2D QR Code Scanner

    Connection-Diagram with DFRduino UNO R3

    It can be used in self-service vending machines, subway gates, access control, payment machines, etc.

    Features

  • Use-to-connect Gravity interface
  • 3.3V/5V power supply
  • I2C & UART supported
  • Specification

  • Power Supply: DC3.3V/5V
  • Working Current: <70mA
  • Communication: I2C, UART
  • Image Pixel: 640*480
  • Light Source: colorful indicator/green light flashing prompt successful reading
  • Code System: 1D: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved 2 of 5
  •       2D: QR code, Data Matrix, PDF417

  • Depth of Field: QR Code (25mm-150mm product performance may be affected to varying degrees due to barcode quality and environmental conditions)
  • Contrast: ≥25%
  • Reading Angle: roll 360°, pitch 55°, yaw 55°
  • Scanning Angle: 69° (horizontal), 56° (vertical)
  • Reading Accuracy: ≥5mil
  • Working Temperature: 20°C ~60°C
  • Storage Temperature: -40°C ~80°C
  • Environment Light: 0~100000Lux
  • Relative Humidity: 5% to 95% (non-condensing)

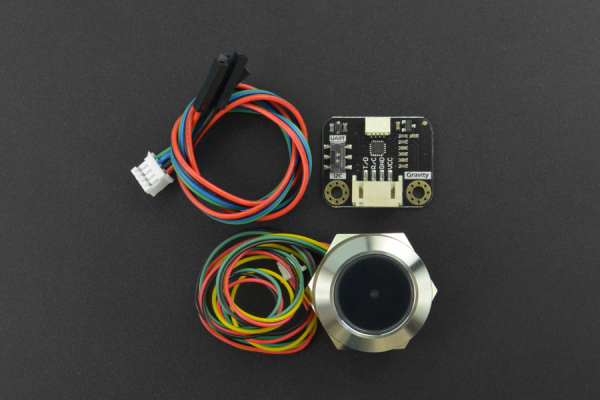

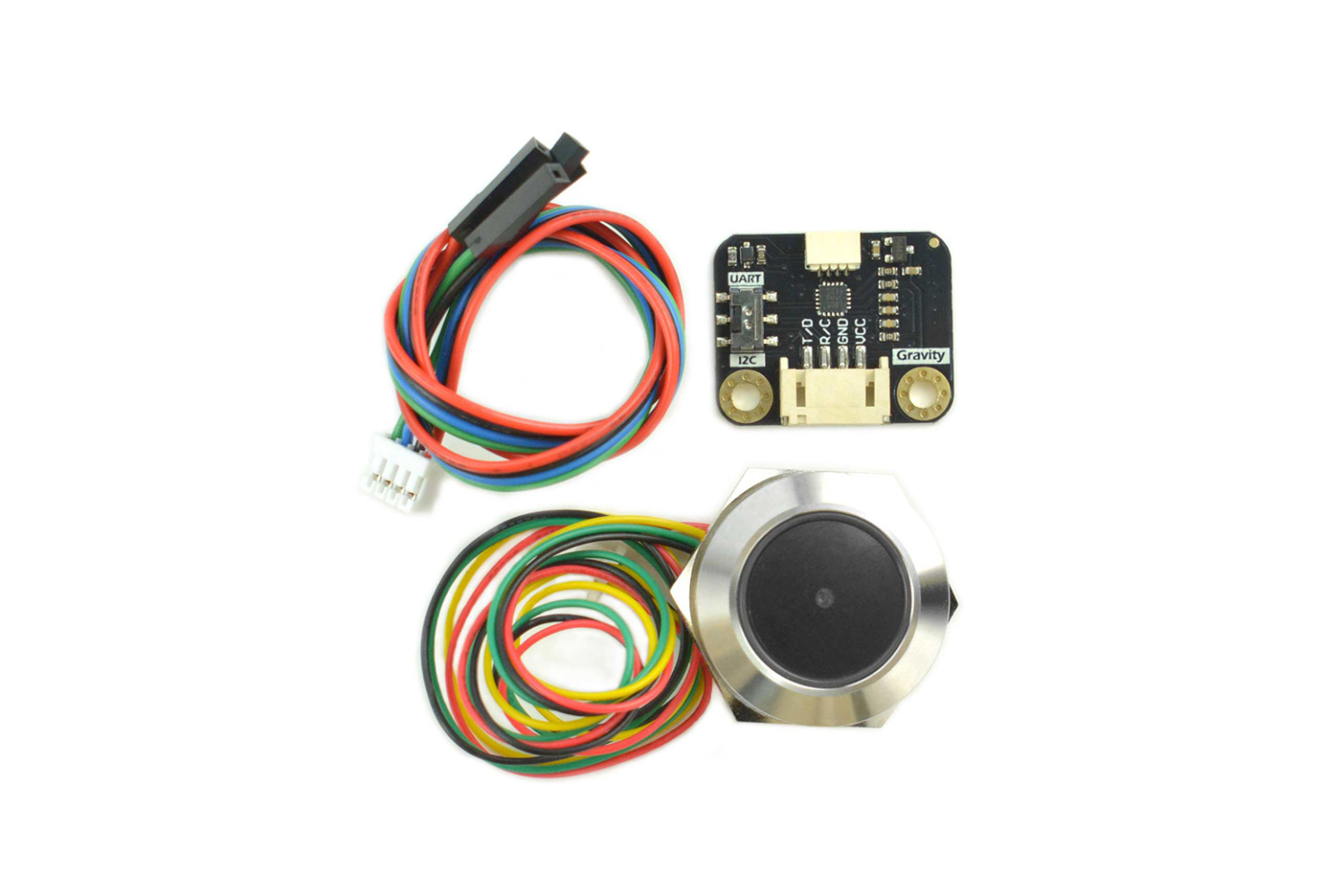

  • Shipping List

  • Ring 2D QR Code Scanner x1

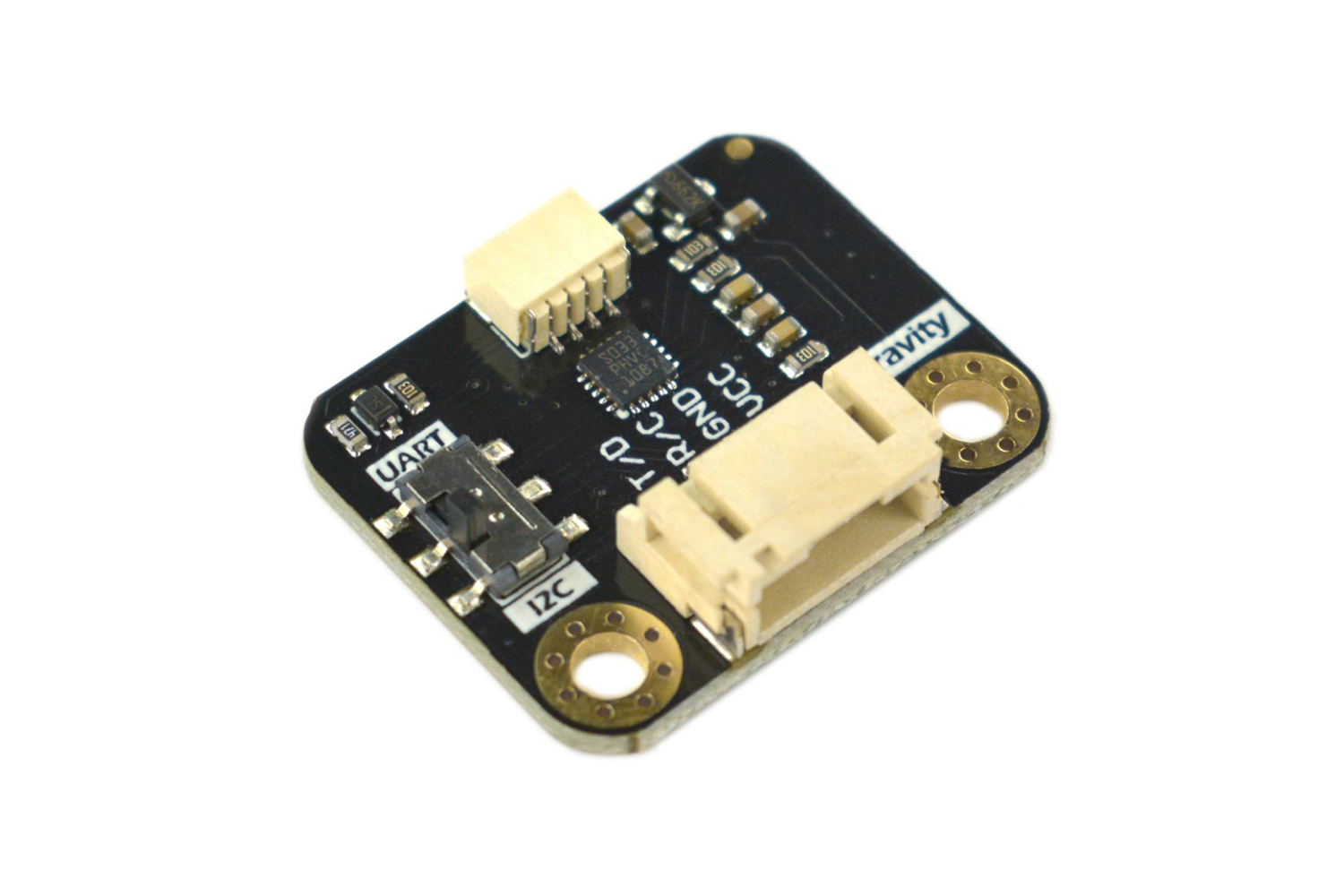

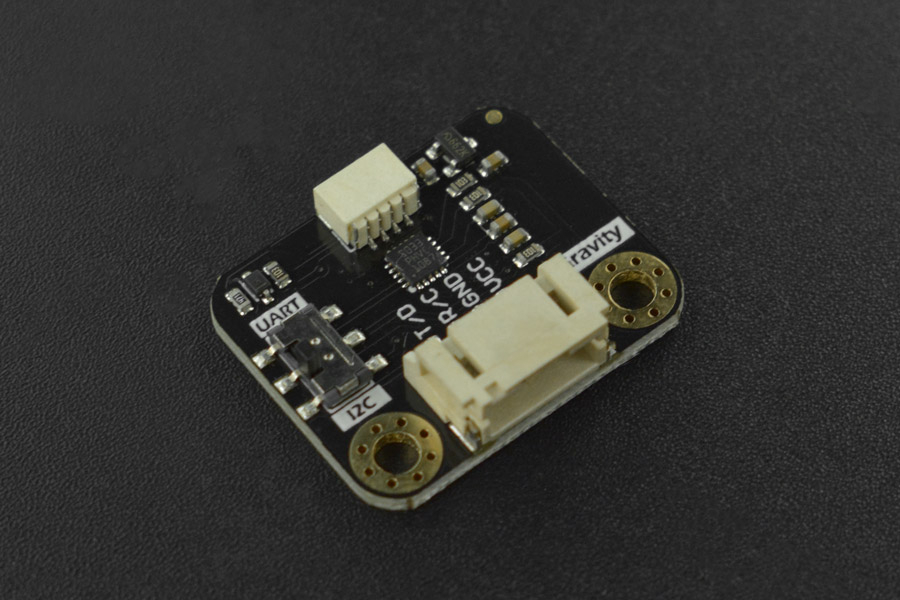

  • Adapter Board x1
  • PH2.0-4P Dupont Wire 30cm(Red Black Blue Green) x1
