Varenr. TEL0147

Gravity: Serial Data Logger for Arduino

158,75
DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

158,75 DKK pr. stk. -
141,00 DKK pr. stk.
Spar 11%
124,00 DKK pr. stk.
Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    Compared to the old MicroSD Card Module, this Gravity: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes.

    The Serial Data Logger provides onboard 128MB Flash memory, no more TF card required. It comes with a USB function, which means you can directly connect it to a PC computer to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE key makes it easier to store data into separate files.

    Gravity: Serial Data Logger

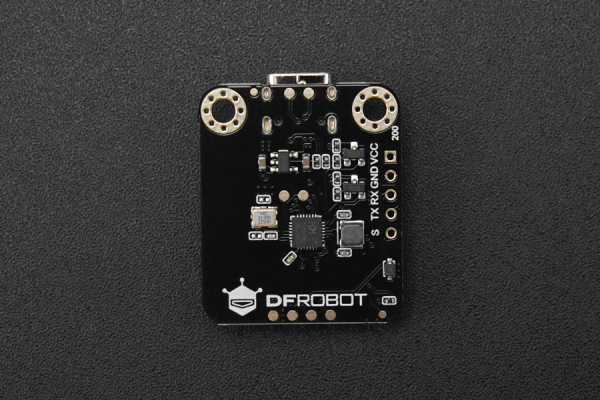

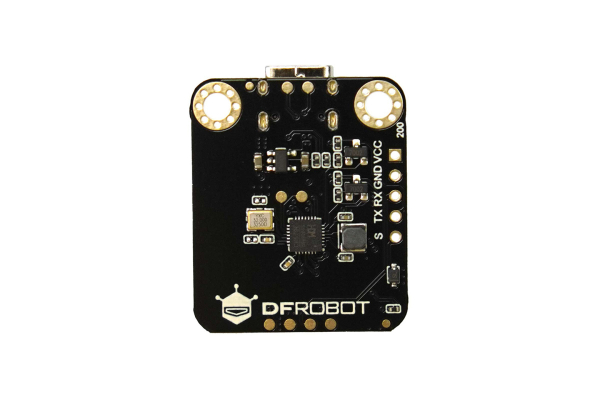

    Board Overview

    Gravity: Serial Data Logger

    Connect Diagram

    Features

  • With USB function, no card reader required

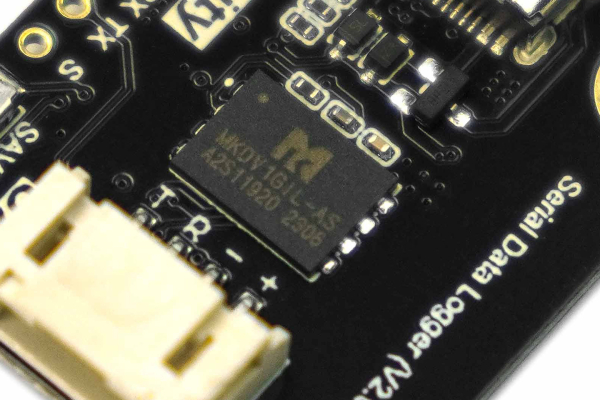

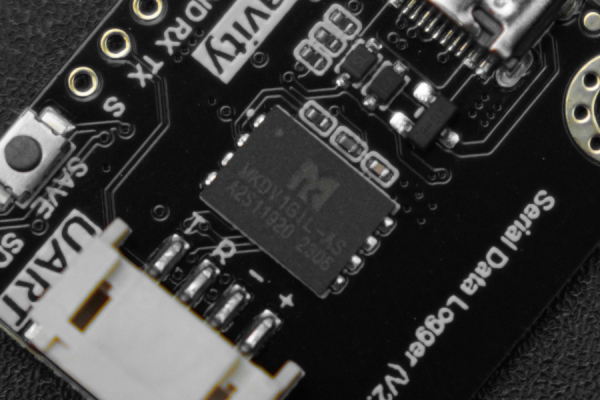

  • Onboard 128MB Flash memory, no TF card required
  • Support multiple baud rates, good compatibility
  • LED indicator for viewing data writing status visually
  • Specification

  • Supply Voltage: 3.3V~5V
  • Operating Current: 32mA
  • USB Protocol: USB2.0
  • Operating Temperature Range: -30℃~85℃
  • Operating Humidity Range: 5%RH~85%RH

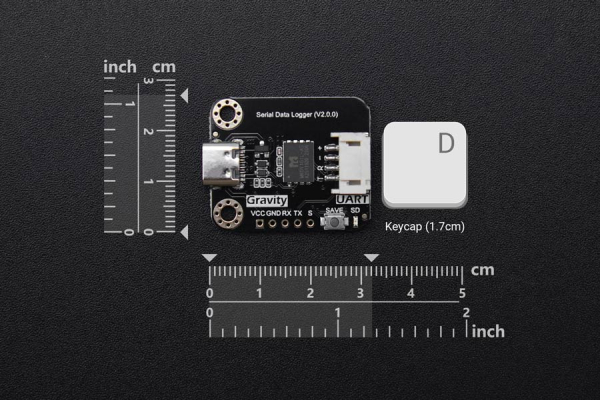

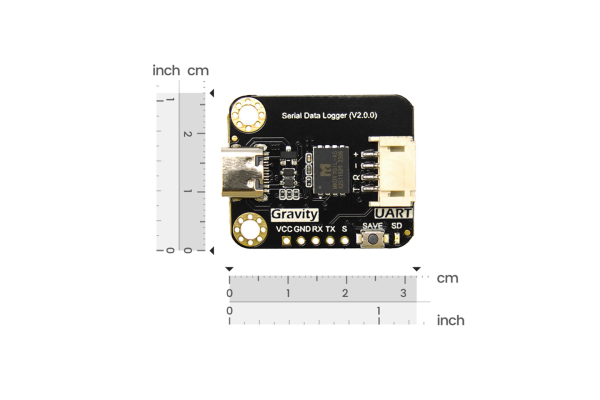

  • Dimension: 32*27mm/1.26*1.06”

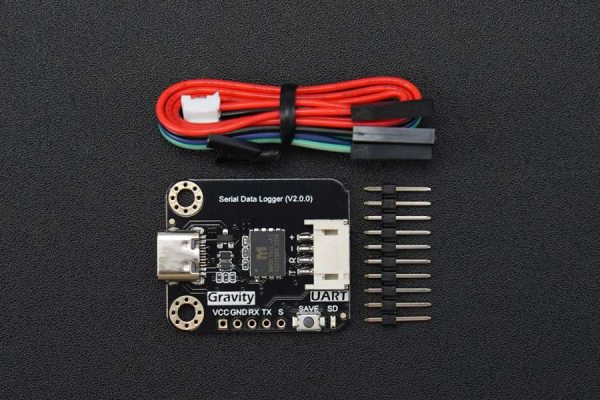

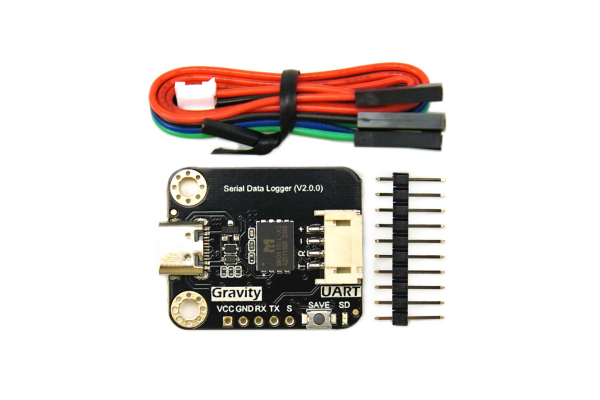

  • Shipping List

  • Gravity: Serial Data Logger x1
  • 2.54-5P Black Single-row Connector x2
  • Gravity-4P I2C/UART Sensor Cable x1
