DFRobot

Varenr. SEN0220

Gravity: UART Infrared Carbon Dioxide Sensor (0-50000 ppm)

1.090,00
DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1.090,00 DKK pr. stk. -
1.050,00 DKK pr. stk.
Spar 4%
1.011,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået

  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

Project: Accurate soil health assessment using calibrated ammonia gas sensors

Introduction: In this project, we will test the performance of the Ammonia Sensor NH3 Sensor (Calibrated) for the determination of soil fertility using a simple configuration.

TUTORIAL

TUTORIAL

Documents

  • Product wiki

    • Introduction

    DFRobot released its latest wide range Arduino infrared CO2 sensor, which effective range is up to 0~50000ppm. This sensor is based on non-dispersive infrared (NDIR) technology and has good selectivity and oxygen-free dependency. It integrates temperature compensation and support UART communication mode. Most importantly, the product is easy to use; it is compatible with all types of microcontrollers with UART port, like Arduino, Raspberry Pi and other microcontrollers. Besides, it has a long service life, up to 5 years!

    In addition, this UART Infrared CO2 Sensor is a high-performance sensor that combines technology of mature infrared absorption gas detection with precision optical circuit design as well as sophisticated circuit design. It has characteristics such as wide range detection, high sensitivity, high resolution, low power consumption, fast response, anti-water vapor interference, no poisoning, high stability and long life.

    It can be widely used in HVAC refrigeration and indoor air quality monitoring, industrial process and safety monitoring, agricultural and animal husbandry production process monitoring, etc..

    DFRobot LCD Keypad Shield with UART Infrared CO2 Sensor

    This is a 0~50000ppm wide range CO2 sensor with UART communication port. It supports Arduino, Raspberry Pi and other microcontrollers. In addition, we also have a 0~5000 ppm high precision infrared sensor with Gravity Analog interface, more easy to use: Gravity Analog Infrared CO2 Sensor (0~5000ppm).


    Gravity CO2 Sensor Selection Guide
    Product Name Gravity：Analog Electrochemistry CO2 Sensor Gravity：Analog IR CO2 Sensor Gravity：UART IR CO2 Sensor
    SKU SEN0159 SEN0219 SEN0220
    Operation Voltage 3.7～5V 4.5～5.5V 4.5～5.5V
    Output
    Gravity: Analog
    (Analog2.7～4.1V)
    +
    3P Header Digital Output(Alarm):0～VCC Level
    Gravity: Analog
    (Analog Output 0.4～2V)
    Gravity: UART
    (0～3.3V Level)
    Measurement Principle
    Electrochemistry
    （Solid electrolyte battery principle）
    		NDIR(non-dispersive infrared) NDIR(non-dispersive infrared)
    Measurement Range 0～10000 ppm 0～5000 ppm 0～50000 ppm
    Accuracy ±100ppm@400ppm ±(100ppm + 6% readings) ±(100ppm + 6% readings)
    Response Time <20s <90s <30s
    Average Power <1W <430mW@5V <430mW@5V
    Operation Temperature -20℃～50℃ 0℃～50℃ 0℃～50℃
    Operation Humidity 0～95% RH (No condensation) 0～95% RH (No condensation) 0～95% RH (No condensation)
    Lifespan >1 years >5 years >5 years
    Dimension
    (PCB)
    		32*42 mm 37*69 mm 21*27.1 mm
    Features
    1.Large Range
    2.Adjustable Alarm Threshold
    3.Fast Response
    4.Analog Output
    1.High Accuracy
    2.Long Lifespan
    3.Auto Temperature Compensation
    4.Water Vapor Interference Resistance
    5.Ananglog Output
    1.High Accuracy
    2.Large Range
    3.Long Lifespan
    4.Auto Temperature Compensation
    5.Water Vapor Interference Resistance
    6.3.3V UART Output

    Features

  • High sensitivity High resolution
  • Low power consumption
  • Excellent stability
  • Temperature compensation
  • Excellent linear output
  • High cycle life
  • Anti-water vapor interference
  • No poisoning
  • Need 5V power supply, even you are using a 3.3V microcontroller, like Genuino 101/ Raspberry Pi .etc.

    • Specification

  • Gas Detection: Carbon Dioxide (CO2)
  • Operating Voltage: 4.5 ~ 5.5V DC
  • Average Current: <85mA
  • UART output
  • Measuring Range: 0 ~ 50000ppm
  • Accuracy: ± (50ppm + 5% reading)
  • Preheating Time: 3min
  • Response Time: T90 < 30s
  • Operating Temperature: 0 ~ 50 ℃
  • Operating Humidity: 0 ~ 95% RH (no condensation)
  • Service Life: >5 years
  • Board Dimension : 21 * 27.11 mm/ 0.83 * 1.06 inches
  • Weight: 42g

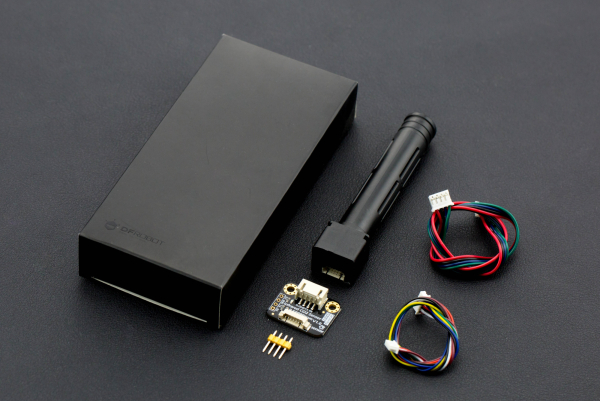

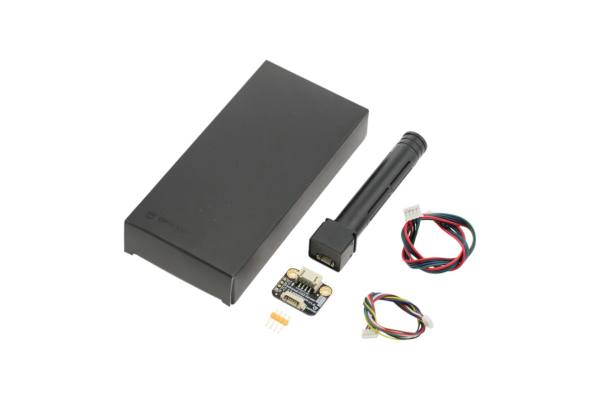

    • Shipping List

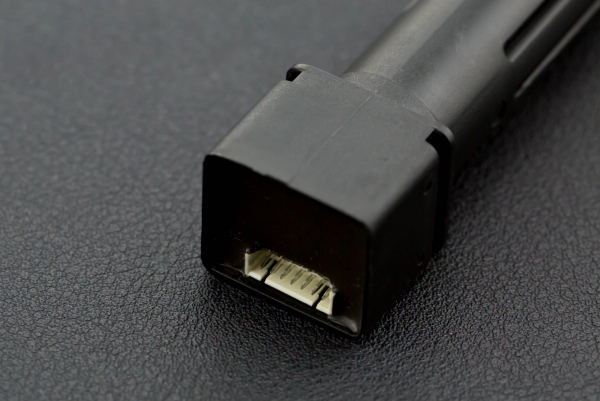

  • UART Infrared CO2 Sensor Probe (0-50000ppm) x1

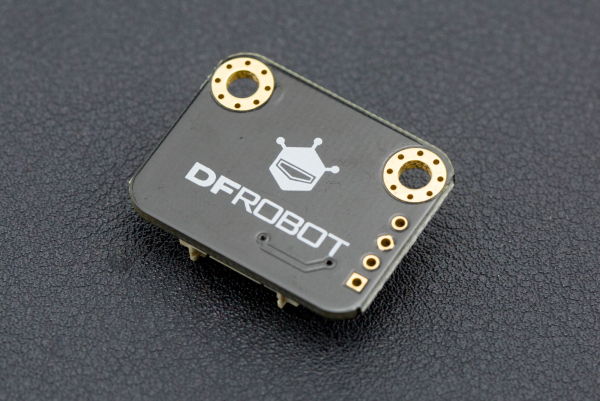

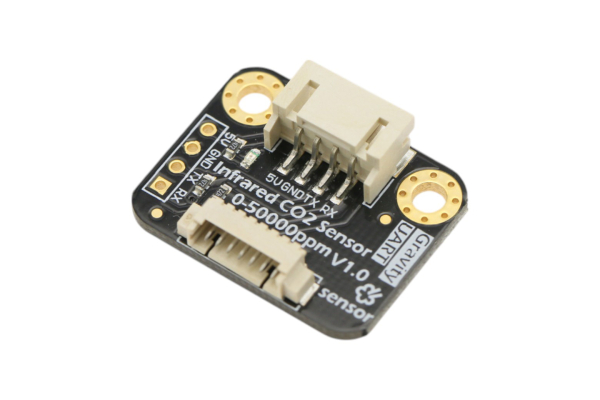

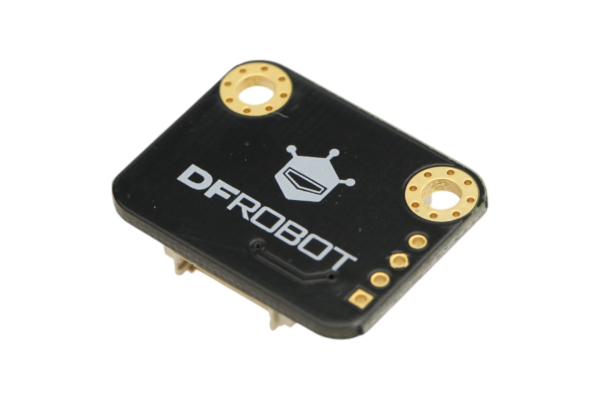

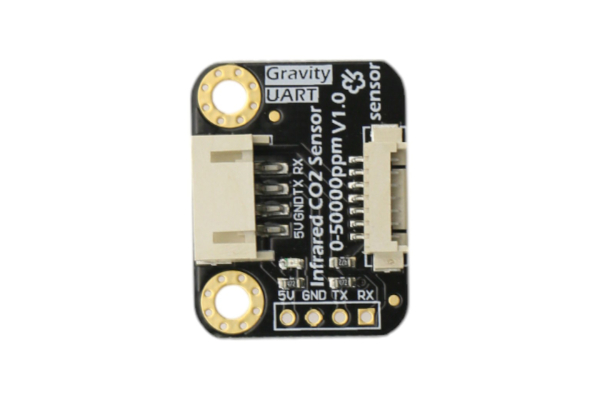

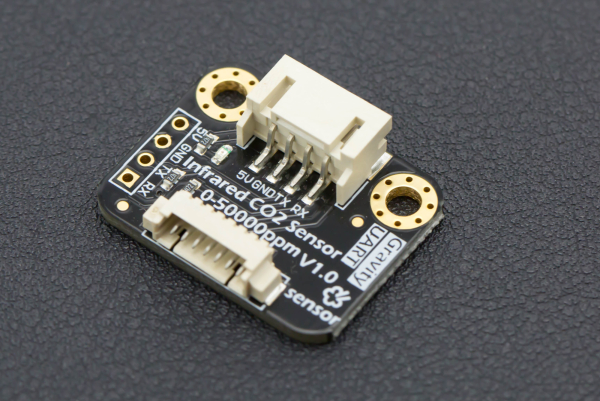

  • Sensor Converter Board x1
  • 6-Pin Sensor Cable x1
  • PH2.0 Gravity UART Cable x1

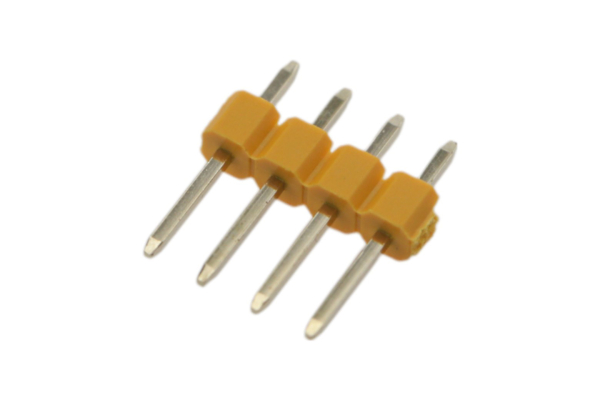

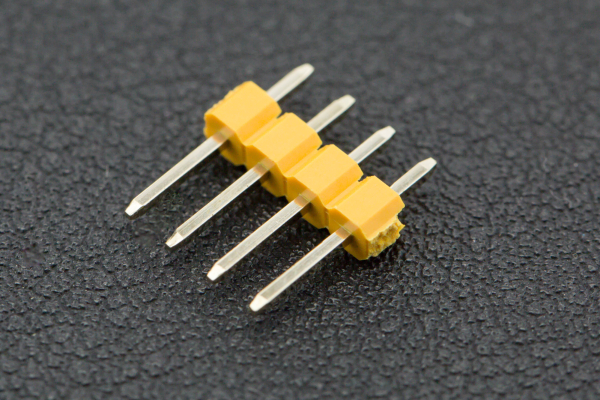

  • XH2.54 4-Pin header x1
