DFRobot

Varenr. SEN0307

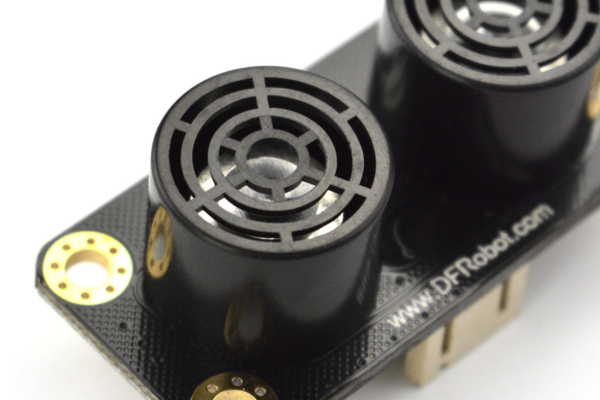

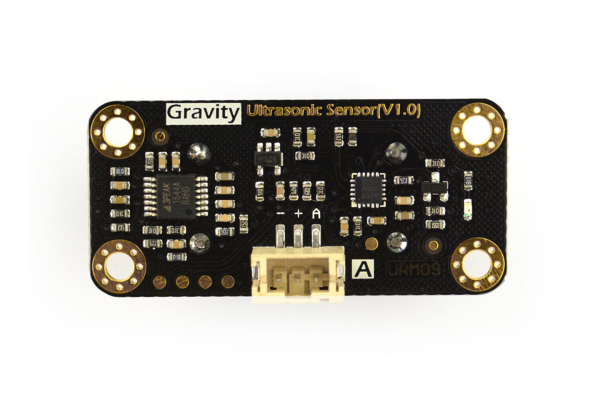

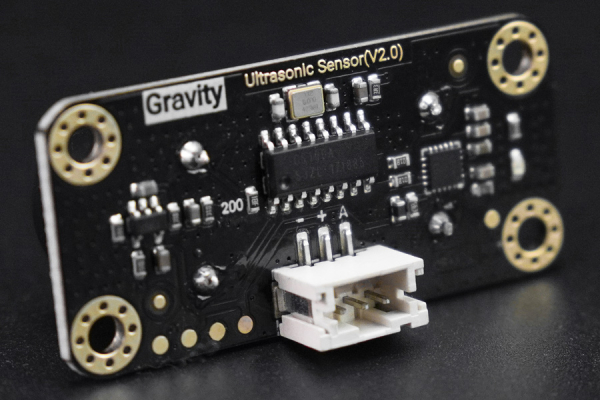

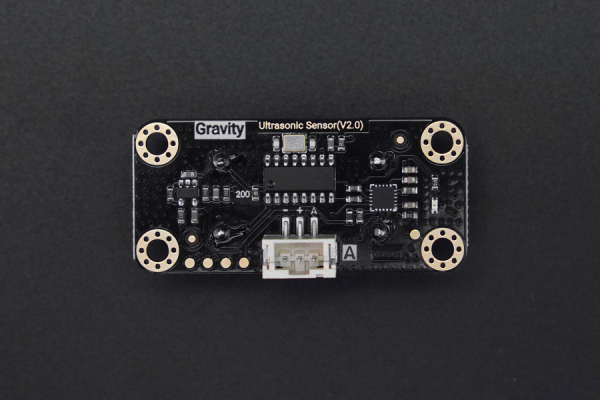

Gravity: URM09 Analog Ultrasonic Sensor

128,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

128,75 DKK pr. stk. -
113,00 DKK pr. stk.
Spar 12%
99,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

Project 1.Terminator HK ~ Arduino & Raspberry Pi Robotics Project | 314Reactor
I decided to chuck some extra hardware at it alongside some cool machine learning stuff and really make a cool representation of the HK in Arduino/Raspberry Pi form.
Main Components:
Black Gladiator - Tracked Robot Chassis
Gravity: IO Expansion & Motor Driver Shield
Gravity: URM09 Analog Ultrasonic Sensor


Project 2. Mini Apple II-“Surprise” Machine for Halloween

Documents

  • Product wiki
  • Introduction

    What is an Ultrasonic Sensor?
    An Ultrasonic sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back.

    Diagram of the basic ultrasonic sensor operation

    Since it is known that sound travels through air at about 344 m/s (1129 ft/s), you can take the time for the sound wave to return and multiply it by 344 meters (or 1129 feet) to find the total round-trip distance of the sound wave. Round-trip means that the sound wave traveled 2 times the distance to the object before it was detected by the sensor; it includes the 'trip' from the sonar sensor to the object AND the 'trip' from the object to the Ultrasonic sensor (after the sound wave bounced off the object). To find the distance to the object, simply divide the round-trip distance in half.

    DFRobot URM09 is an ultrasonic sensor specially designed for fast ranging and obstacle avoidance applications. Its measuring frequency can reach up to 30Hz. The sensor adopts built-in temperature compensation and analog output. Meanwhile, it can provide accurate distance measurement within 500cm. The sensor is compatible with Arduino, Raspberry Pi or other main-control boards with 3.3V or 5V logic level.

    Specification

    • Power Supply: 3.3~5.5V DC
    • Operating Current: 20mA
    • Operating Temperature: -10℃~+70℃
    • Measurement Range: 2cm~500cm
    • Resolution: 1cm
    • Accuracy: 1%
    • Frequency: 30Hz Max

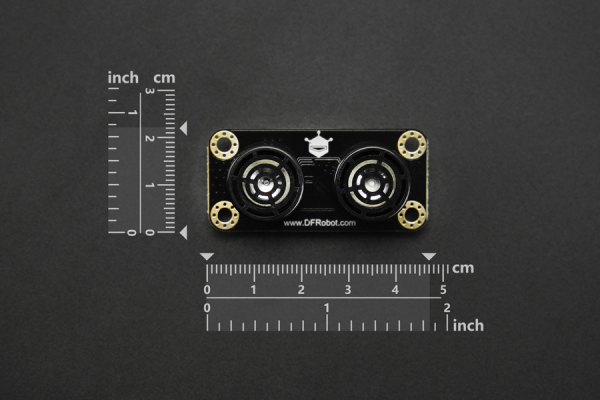

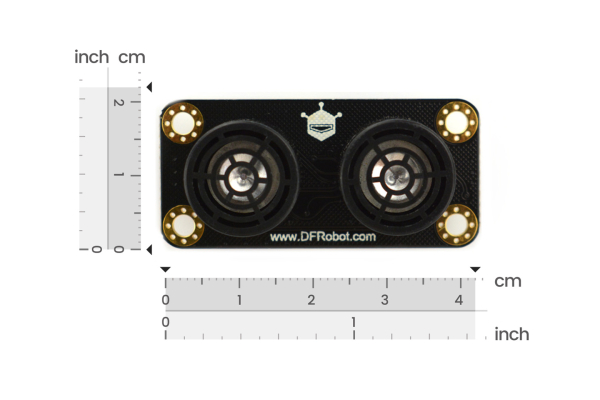

    • Dimension: 47mm × 22 mm/1.85× 0.87”

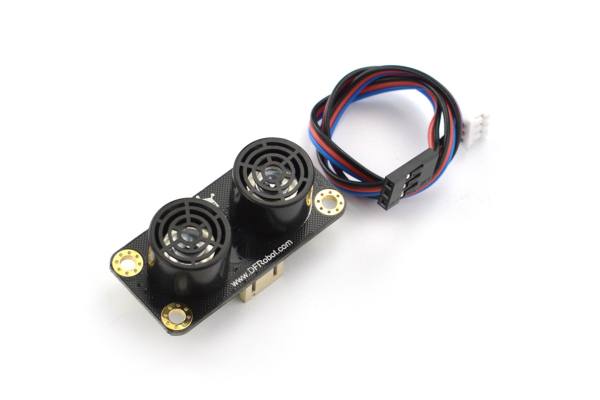

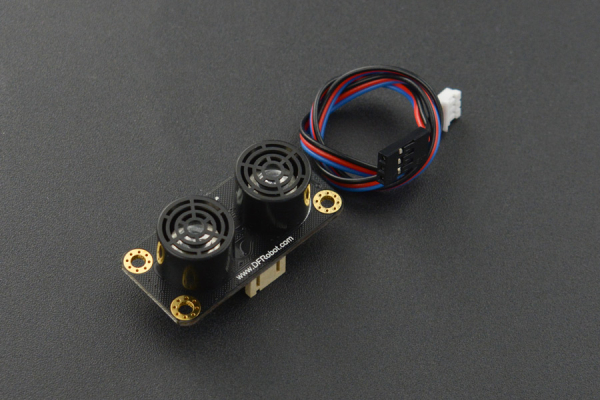

    Shipping List

    • URM09 Ultrasonic Sensor (Gravity Analog) x1
    • PH2.0-3P Connector x1
