Varenr. FIT0778

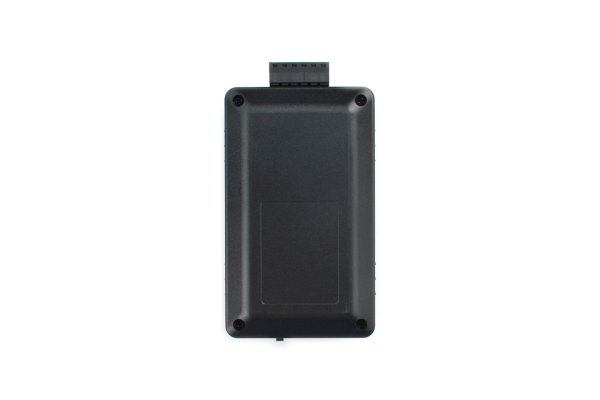

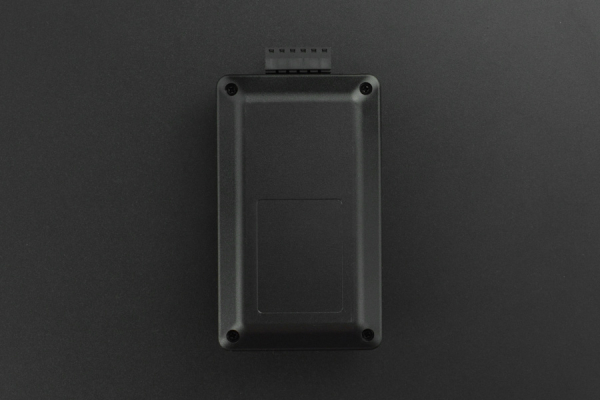

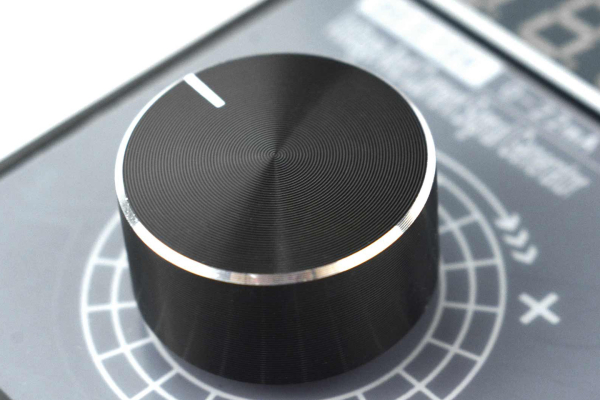

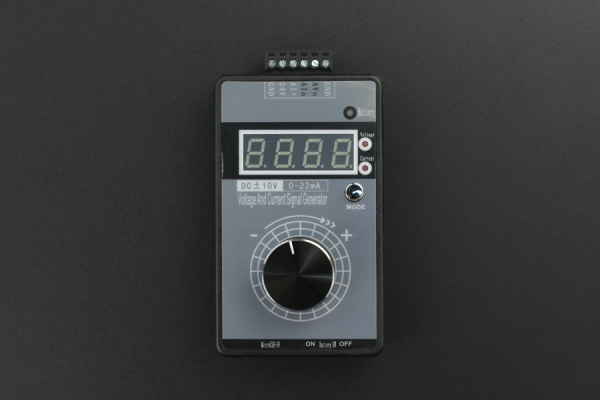

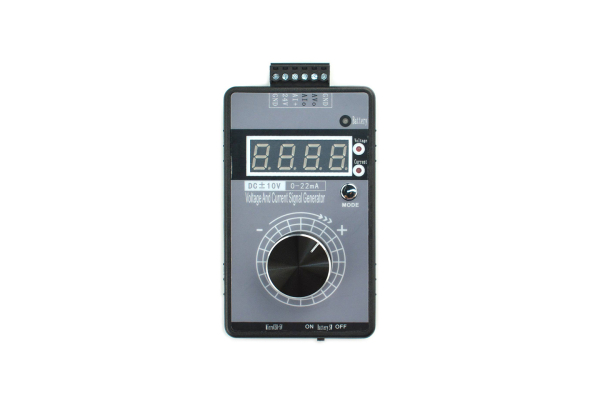

High Precision Handheld Signal Generator

377,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

377,50 DKK pr. stk. -
350,00 DKK pr. stk.
Spar 7%
322,00 DKK pr. stk.
Spar 15%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Manual
  • Introduction

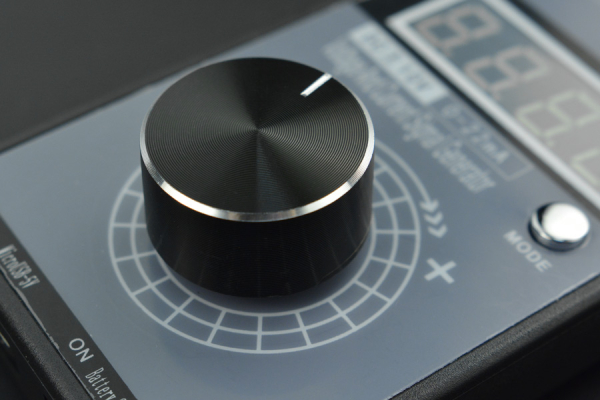

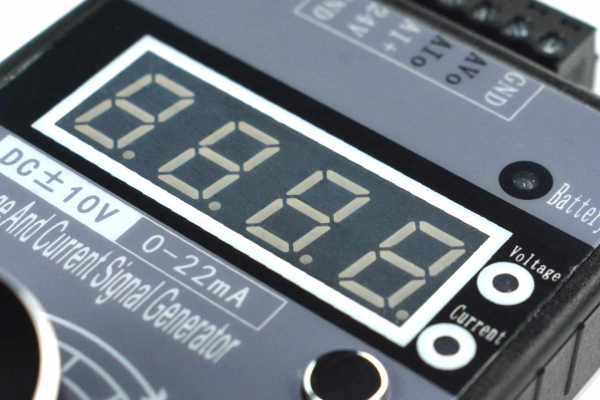

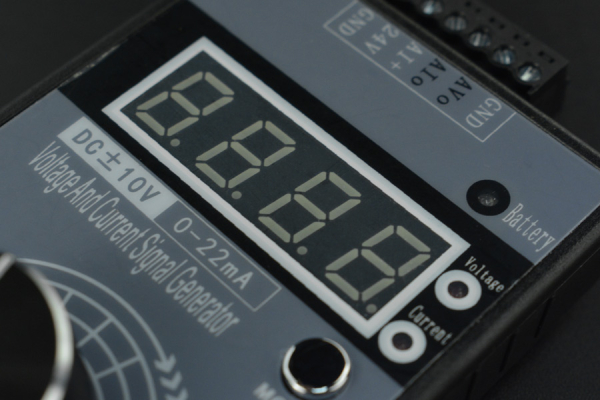

    Light brightness cannot be adjusted to be totally extinguished? Motors cannot be controlled to be stationary? Or the adjustable voltage cannot output 0V? Now for helping you better cope with these situations, DFRobot brings you a high-precision handheld signal generator, it has 2 power supply methods (micro USB/external power supply), 3 adjustment modes (coarse adjustment/fine adjustment/custom quick adjustment), 4-digit highlight digital tube for displaying data. Besides, it also offers current output, positive and negative voltage output, 0.05V accuracy, and linear output(accuracy can be calibrated). The module supports both passive and active current outputs, fully compatible with 2, 3, and 4-wire systems. The device comes with output short-circuit protection and power reverse connection protection mechanisms.

    It can be used to debug motor forward and reverse rotation, control light brightness, test external modulation signal source hardware or factory product voltage and current, etc.

    High Precision Handheld Signal Generator

    Specification

  • Power Supply: Micro USB-5V, external DC15-30V
  • Output Voltage: -10~+10V
  • Output Current: 0~22mA
  • Voltage Accuracy: 0.05V
  • Current Accuracy: 0.05mA
  • Protection Mechanism: output short circuit protection, power supply reverse connection protection
  • Size: 100*60*20mm / 3.94*2.36*0.79inches

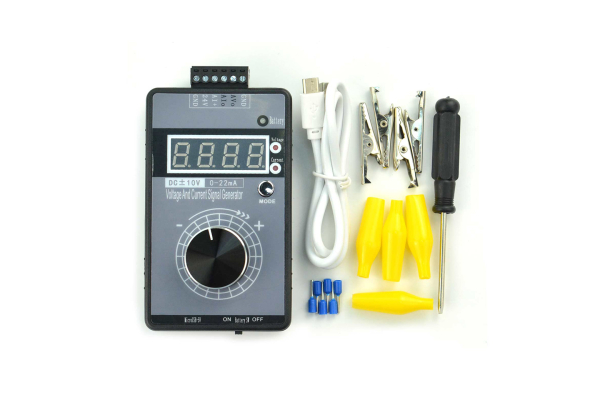

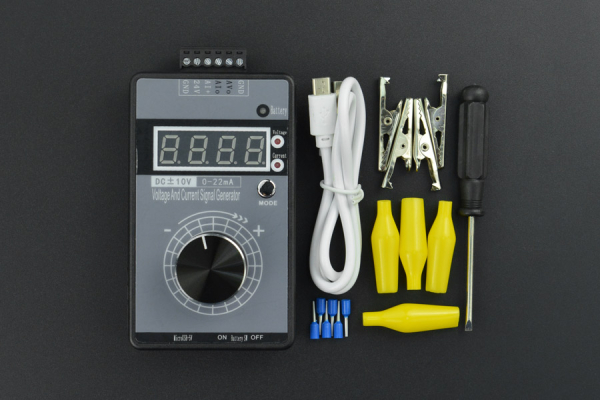

  • Shipping List

  • High Precision Handheld Signal Generator x1
  • Micro USB Cable x1
  • Screwdriver x1
  • User Manual x1
  • Accessories Pack (Alligator clip, connector, etc) x1
