DFRobot

Varenr. DFR0175

I2C LCD Backpack

106,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

106,25 DKK pr. stk. -
94,00 DKK pr. stk.
Spar 12%
81,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

This is a new I2C LCD backpack which supports Gadgeteer interface (IDC10).  It allows gadgeteer user to play with LCD160X.

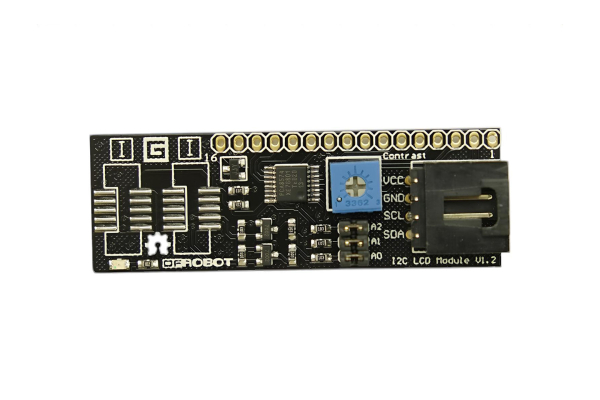

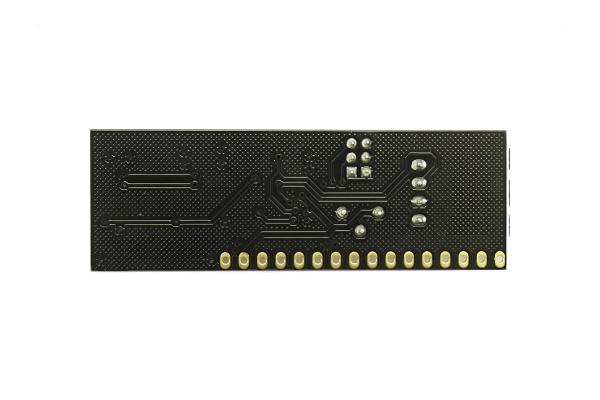

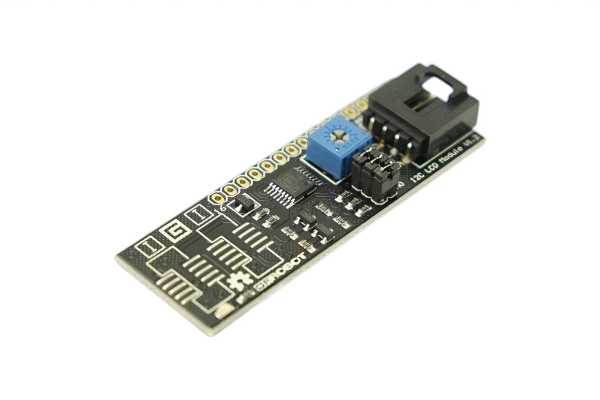

The I2C LCD Backpack is a small PCB that can be soldered to the back of an LCD so that you may control it over an I2C bus.The I2C Backpack is based on the PCA8574.By using this product you could reduced the number of pins (only 2 pins are needed for i2c) while still making it easy to interface with the LCDs. It's compatible with several kinds of LCDs, such as LCD1601,LCD1602,LCD1604 and LCD2004.

For advanced users, this backpack can also be used for general purpose I/O expansion.The devices consist of an 8-bit quasi-bidirectional port and an I2C-bus interface.

I2C LCD Backpack
I2C LCD Backpack
Last update: V1.2:

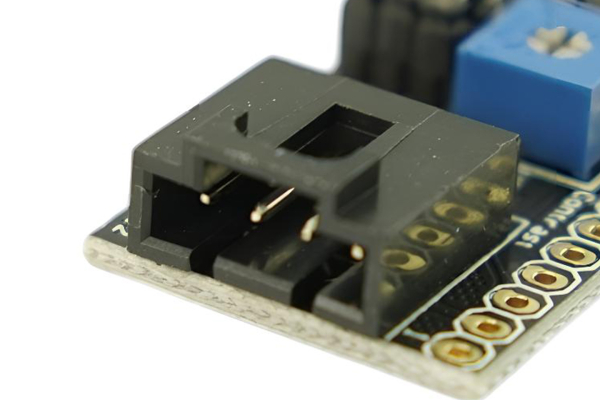

  • I2C connector:  VCC, GND, SCL, SDA

Specification

  • I2C Address: 0x20-0x27(0x20 default)

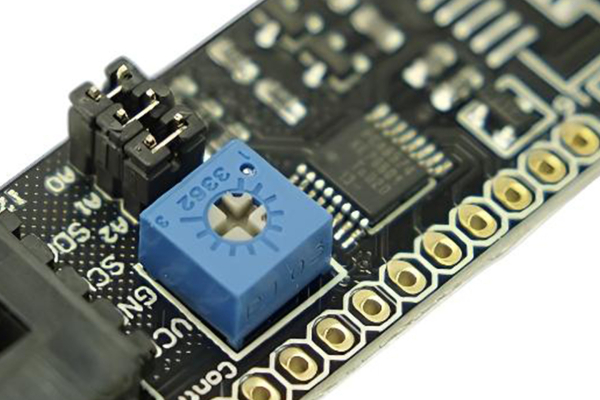

  • Adjustable contrast
  • Supply voltage: 5V
  • Interface: I2C/TWIx1,Gadgeteer interface x2
  • 8-bit quasi-bidirectional port
  • LCDs supported: LCD1601,LCD1602,LCD1604,LCD2004
  • Size:40x20x10mm, 58x20x10mm(2.28x1.18x0.39")

Shipping List

  • I2C LCD Backpack x1
