Name: Input Shield for Arduino
Brand: DFRobot
SKU: DFR0008
Price: 158.75 DKK
Availability: OutOfStock

Mængderabat

DFRobot

Varenr. DFR0008

Input Shield for Arduino

158,75

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	158,75 DKK pr. stk.	-
5 stk.	141,00 DKK pr. stk.	Spar 11%
10 stk.	124,00 DKK pr. stk.	Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Projects

Project 1 Arduino Projects: Zelda Song Player
Things you may need in this project: Hardware components

Documents

Introduction

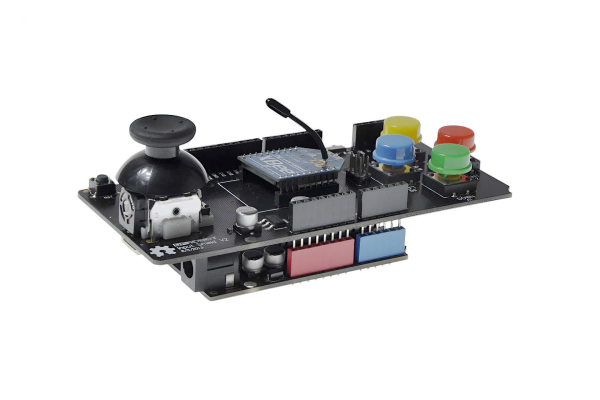

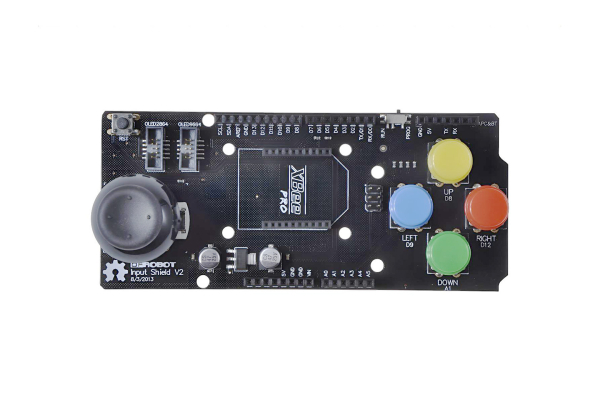

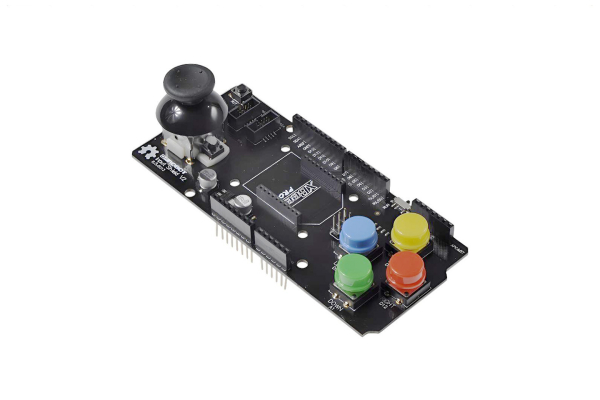

The upgraded Arduino Input Shield includes a two axis mini joystick (with moment switch) as well as four colored push buttons(Red,Yellow,Blue,Green). The reserved APC220 Radio Data Module(SKU:TEL0005) interface and the Xbee interface is deisgned to facilitate the realization of wireless rocker button controller. The shield can be easily stacked on top of your Arduino boards. It can also connect with OLED2864 & OLED9664.

Features

Dual axis mini joystick
Connects to your Arduino using male to male pin headers
Comes with 2 colored push buttons
The use of imported high-quality potentiometers and the PS button rocker. The rocker output an analog signal is to achieve vertical and horizontal control, which is attached to four keys at the same time. It also has two great circle button caps (cap color random round keys), a rocker button and a reset button.
The use of stack design is so that the plug can easily on Arduino Duemilanove or DFRduino Romeo.

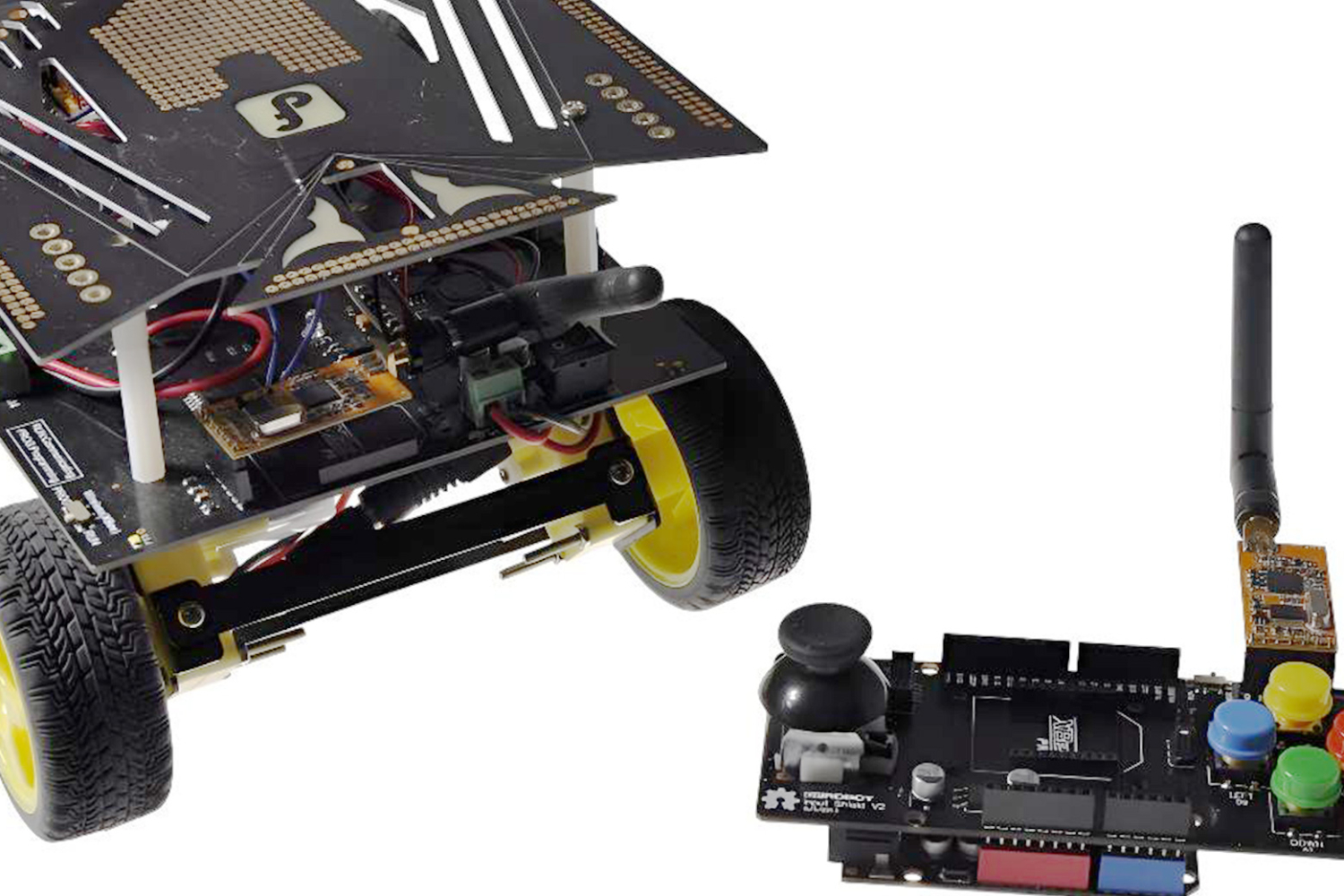

The reserved APC220/Bluetooth module interface is to facilitate the realization of wireless rocker button controller.
The remaining unused ports are extended out of standby.

Specification

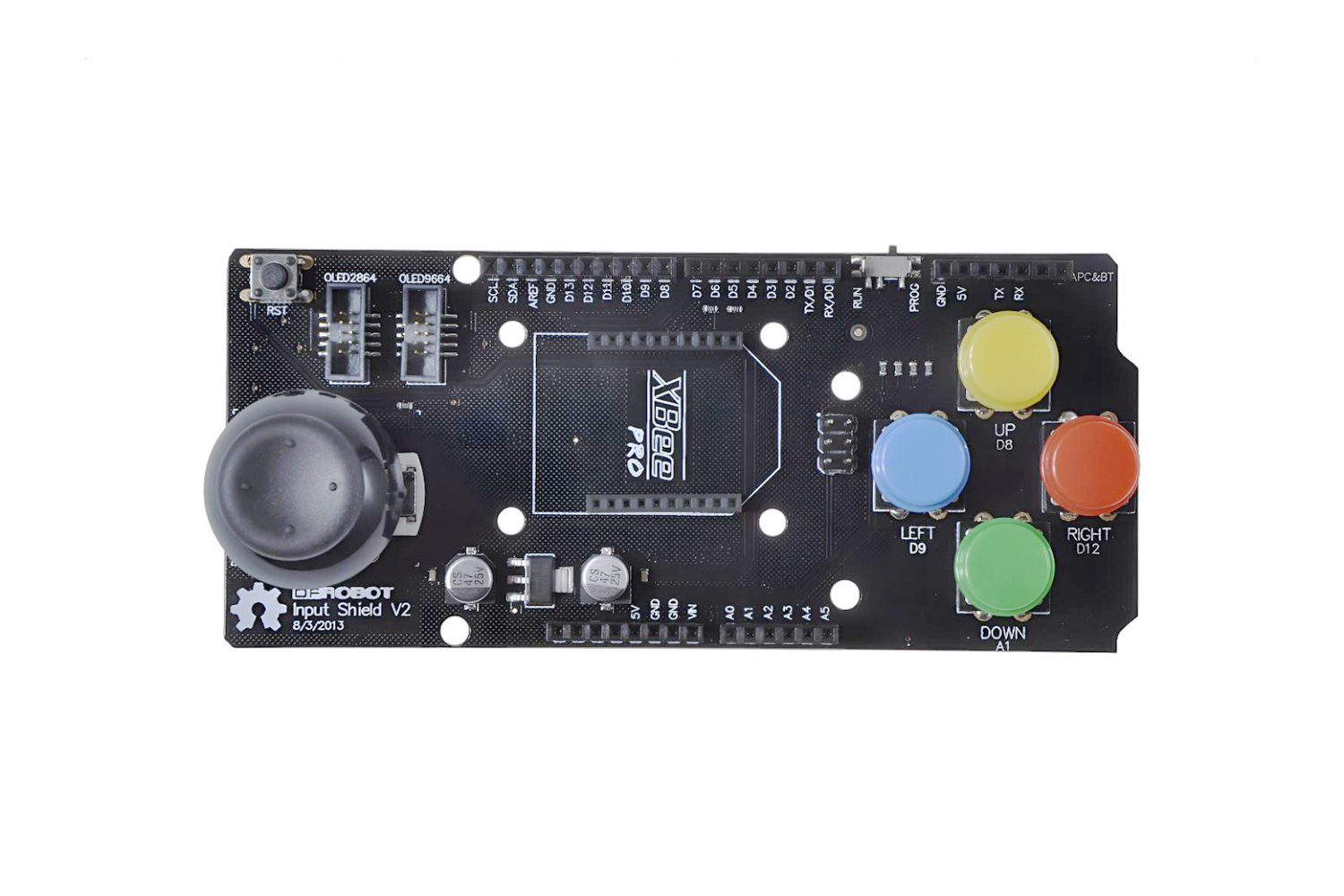

up D8
down A1
left D9
right D12
stick button A0
level_stick A3
vertical_stick A2

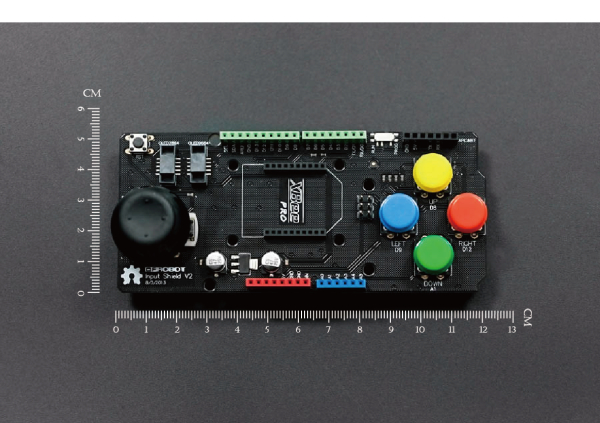

width 53.2 mm (2.09 in)
length 121.3 mm (4.78 in)
height 40.8 mm (1.61 in) (with pin); 31.2 mm (1.23 in) (without pin)

Shipping List

Input Shield For Arduino x1
