DFRobot

Varenr. DFR0244-R

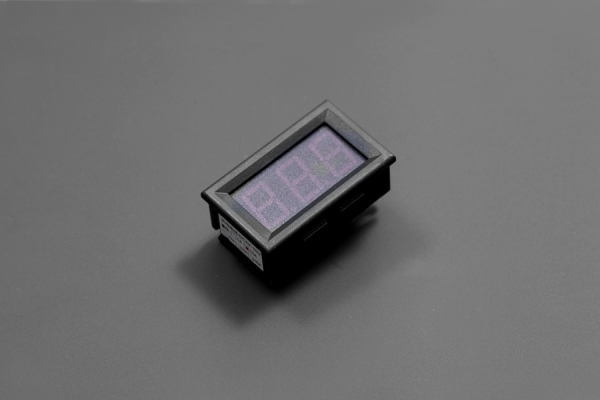

LED Current Meter 10A (Red)

111,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

111,25 DKK pr. stk. -
98,00 DKK pr. stk.
Spar 12%
85,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

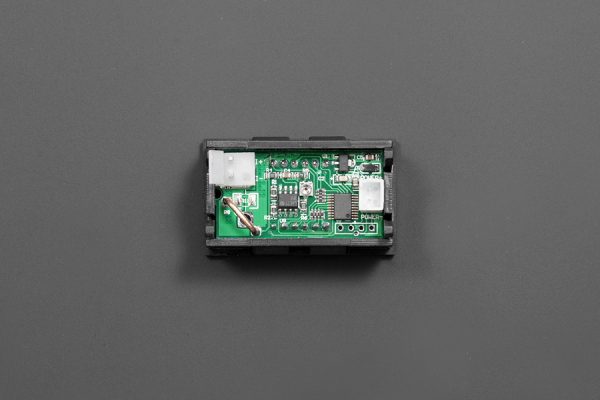

Note: The product has two kinds of chips (STM8S003F3P6 and STM8S003F3U6-QFN) and will be randomly selected to deliver to you.
This is a standard LED Current Meter 10A. It measures 0-9.99A with 2% accuracy. Best suitable for current display in the circuit.Just apply four wires without any extra circuit or components, it gives the reading straight away.  Easy to use, and good company with robot application.It has three color to select, green/blue/red.

Warnings:  Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter are used common-ground connection. So,the measurement terminal of current meter must be cascaded after loads. It's better that power supply of the current meter is isolated.

Specification

  • Measure Current: 0-9.99A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm (1.79"*1.04")
  • Dimension: 48mm*29mm*21mm (1.89"*1.14"*0.83")

Shipping List

  • LED Current Meter 10A (Red)    x1
