DFRobot

Varenr. DFR0245-G

LED Current Meter 50A (Green)

117,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

117,50 DKK pr. stk. -
104,00 DKK pr. stk.
Spar 11%
90,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

Note: The product has two kinds of chips (STM8S003F3P6 and STM8S003F3U6-QFN) and will be randomly selected to deliver to you.
This is a standard LED Current Meter 50A. The biggest feature is that the LED Current Meter have reversed connection protection to prevent from being burnted out. It measures 0-50A with 2% error. Best suitable for current display in the circuit. Just apply four wires without any extra circuit or components, you will get the readings displayed straight away.  Easy to use, and good company with robot applications. It has two color LED display to select, green/red.

Warnings: Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this Current Meter are using the same common-ground connect. So, the measurement terminal of current meter must be cascaded after load. The measurement terminal must be link to the ground side, Do NOT link it to positive side, it will damage the meter permently.

Specification

  • Measure Current: 0-50A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm (1.79"*1.04")
  • Dimension: 48mm*29mm*21mm (1.89"*1.14"*0.83")

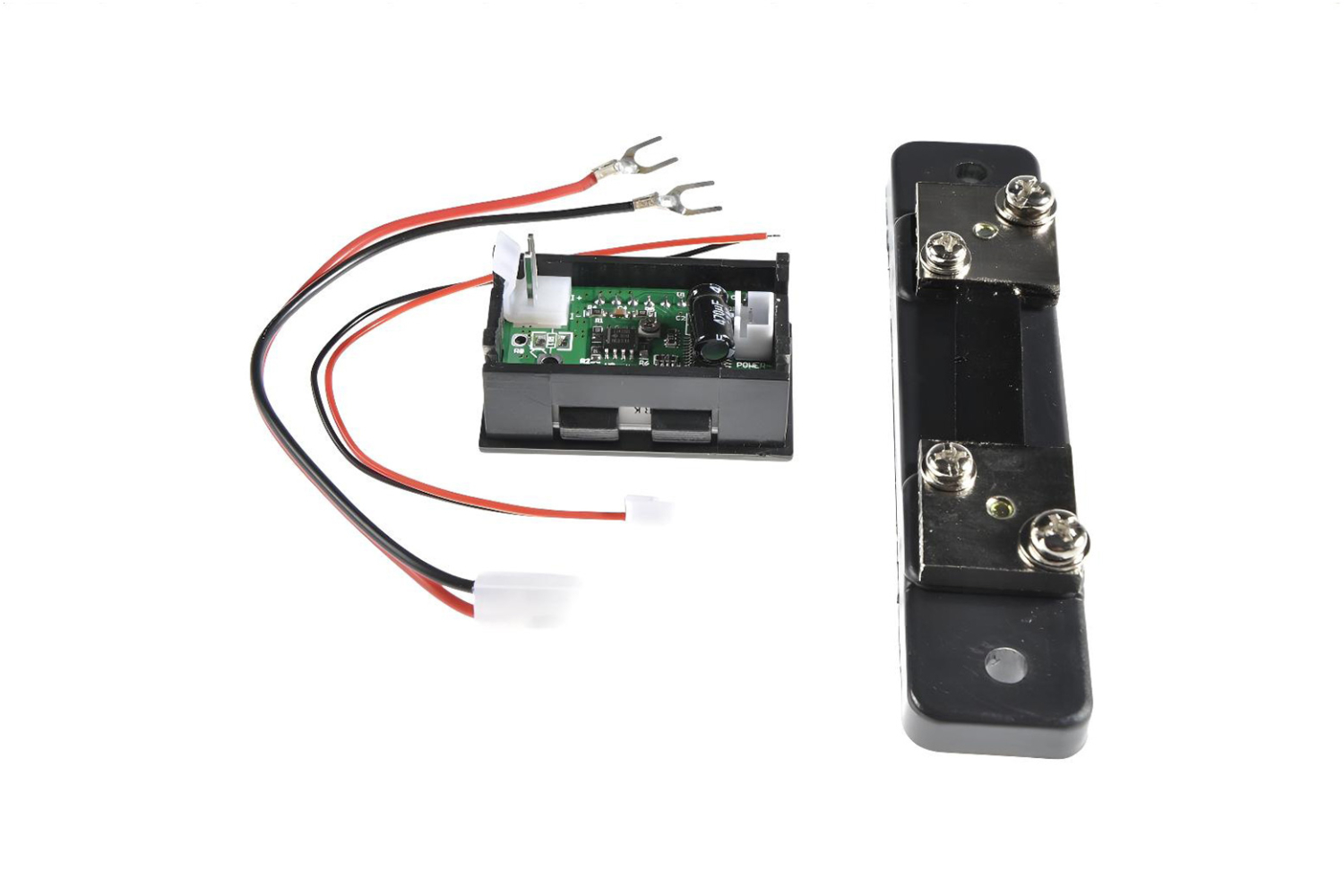

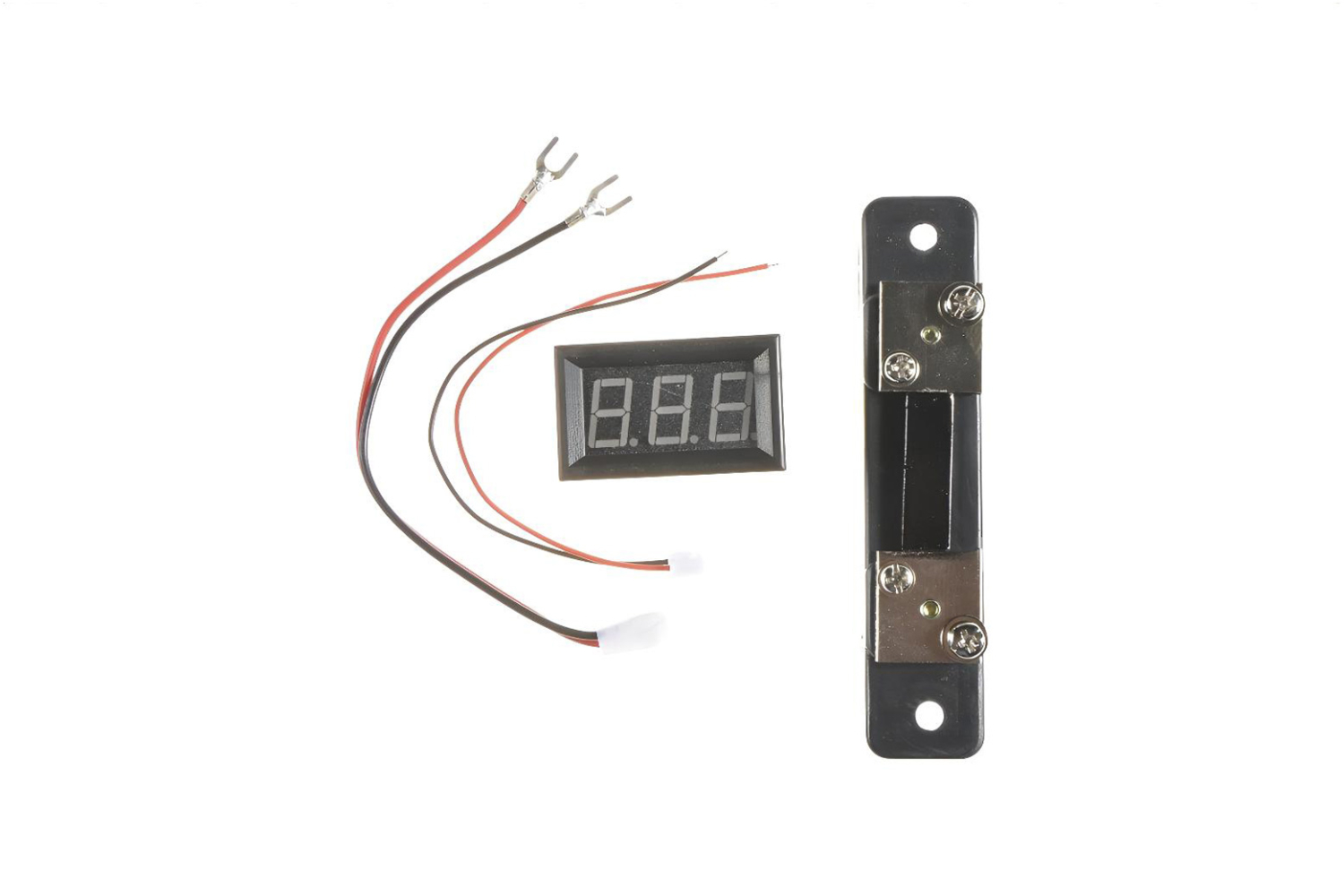

Shipping List

  • LED Current Meter 50A  x1
  • shunt  x1
