Varenr. FIT0319

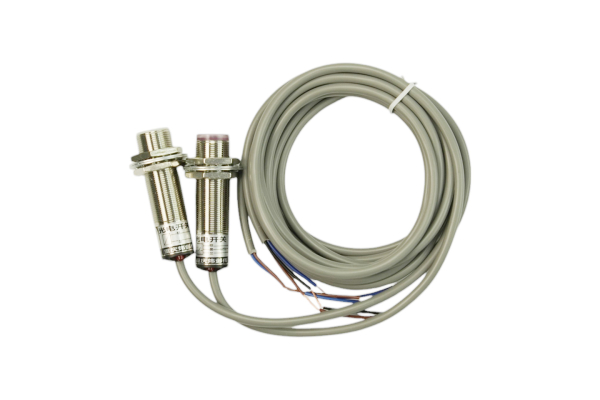

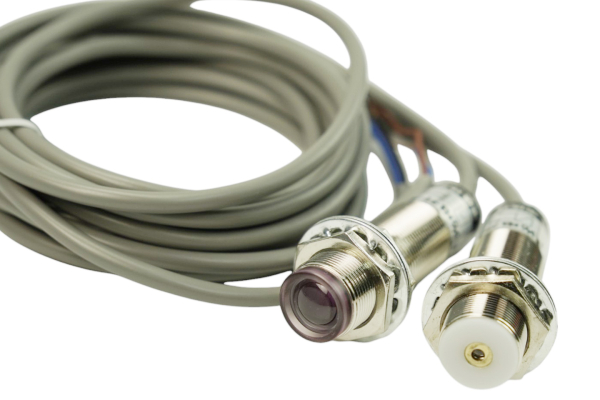

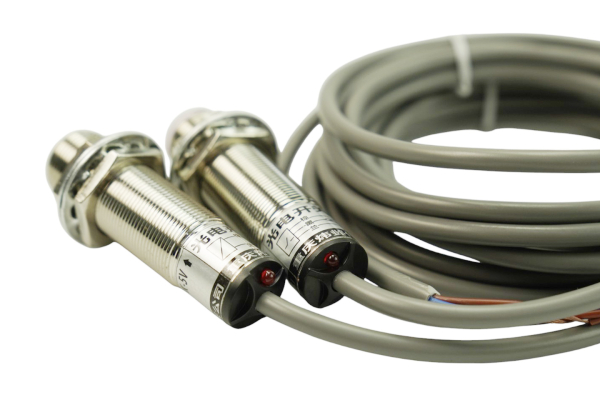

Laser Photoelectric Switch GAB100M-AK-5V

621,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

621,25 DKK pr. stk. -
621,00 DKK pr. stk.
Spar 0%
621,00 DKK pr. stk.
Spar 0%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents


Introduction

This is a photoelectric switch that is composed of emitter and receptor.The emitter consists of a laser diode,and the laser has the characteristics of high precision, good orientation etc.The receptor consists of a photoelectric element.When receiving the laser pulse, the built-in light conducting.The emitter and receptor can assemble a detector.  It can be directly compatible with Arduino to develop related products .Of course,it is also very suitable for photoelectric counting, security, ultra-high vehicle overrun detection etc.

Specification

  • Voltage: 5VDC
  • Power(Emitter): 30mW
  • Interface of the receiver: Digital
  • Directly support Arduino processor
  • Pointing Angle: 3℃
  • Corresponding Time: <5ms
  • Detection Range: 65M (2559")
  • Protection grade: IP66
  • Size: 65*M18 (mm)

Shipping List

  • Laser Emitter(With Wires) ×1
  • Laser Receptor(With Wires) ×1
