Project 1. 12volt 3S BMS Connection/3.7v 18650 Lithium battery/how to make 12 volt battery/Electronics verma

Project 2. Lithium cells in Series with BMS - Battery Pack Considerations (MEHS) Episode 61

Introduction

This battery charger allows you to easily gang three 18650 battery cells together to create a rechargeable battery pack.

Featuring sophisticated design, fine workmanship, and small size, the board supports overcharge, overdischarge, overcurrent, and short circuit protections.

When three 18650 batteries or polymer lithium batteries are combined in series, the maximum instantaneous current can reach 10A.

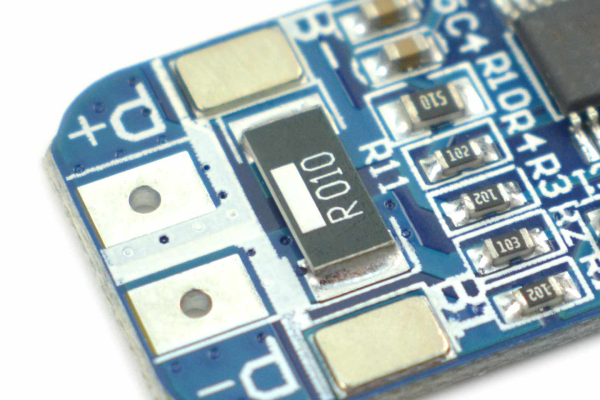

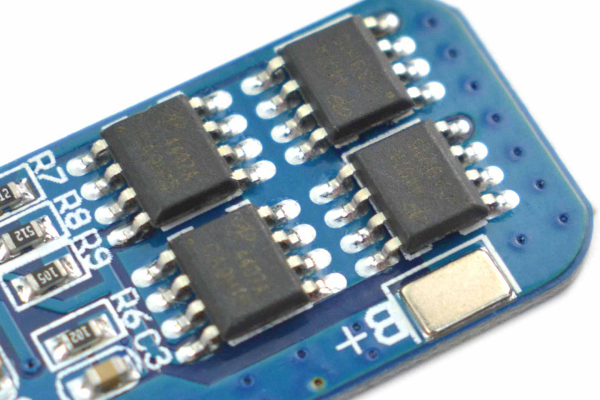

12V 10A 18650 Battery Protection Module

As a very important invention in history, the emergence of batteries has indeed solved many problems, and the 18650 battery is the oldest but commonly seen Type.

However, 18650 Battery burning or explosion happens when it’s charging and discharging. For the sake of safety, if you want to use 18650 lithium batteries for a long period, this battery protection module is highly recommended.

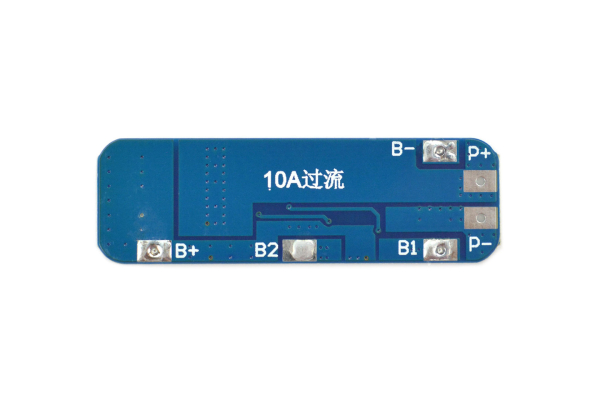

12V 10A 18650 Battery Protection Module

The module greatly enhances the service life and ensures the security of 18650 battery pack.

It is suitable for electronic engineers and makers to use in solar street lamp battery packs, monitoring backup power supplies and other electronic products.

Features

For three 18650 batteries or polymer lithium batteries combined in series

10.8V (Rated voltage of polymer battery)

11.1V (Rated voltage of 18650 or 3.7V lithium battery)

12.6V (Fully charged lithium battery)

Discharge 10A (Refer to the maximum discharge current limit)

Protection Mechanism: Overcharge, overdischarge, overcurrent, short-circuit protection

Specification

Model: HX-3S-01

Working Temperature: -40~+50°C

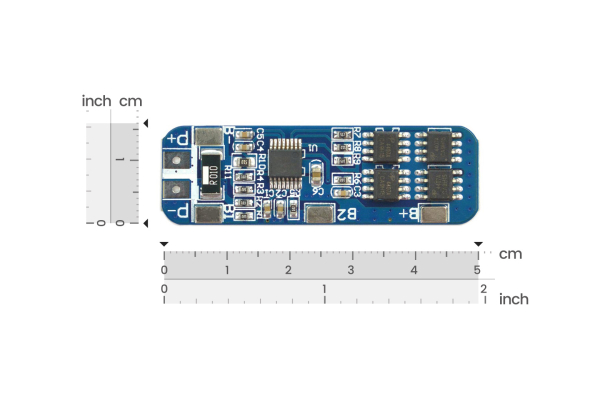

Size: 50*16* 1.0MM/1.97*0.63*0.04 inch

Storage Temperature: -40~+80°C

Max Working Current: 5-8A

Overcharge Voltage Range: 4.25~4.35V±0.05V (single 18650 lithium battery)

Transient Current: 9-10A

Short-circuit Protection: can protect, delay self-recovery

Quiescent Current: less than 6uA

Internal Resistance: less than 60mΩ

Over-discharge Voltage Range: 2.3~3.0V±0.05V
