Varenr. TEL0156

2mm SC-SC Single Mode Duplex Fiber Jumper (50m)

275,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

275,00 DKK pr. stk. -
250,00 DKK pr. stk.
Spar 9%
224,00 DKK pr. stk.
Spar 19%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

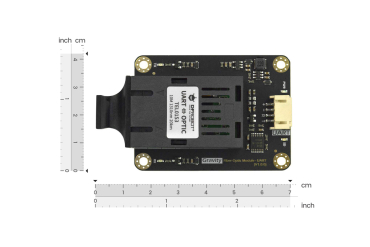

Project: How UART Protocol Works - Gravity: UART Fiber Optic Transceiver Module

Introduction:

In this video, we will talk about the UART protocol. We're using Gravity: UART Fiber Optic Transceiver Module, which runs at 2000000 baud at any time within a distance of up to 10km, to make a weather station.

Make a Weather Station Using Environmental Sensor

Introduction

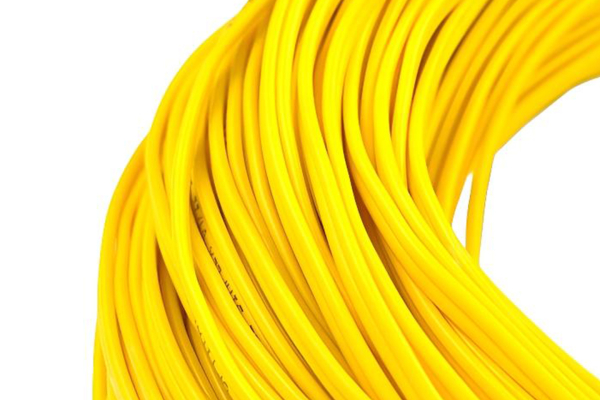

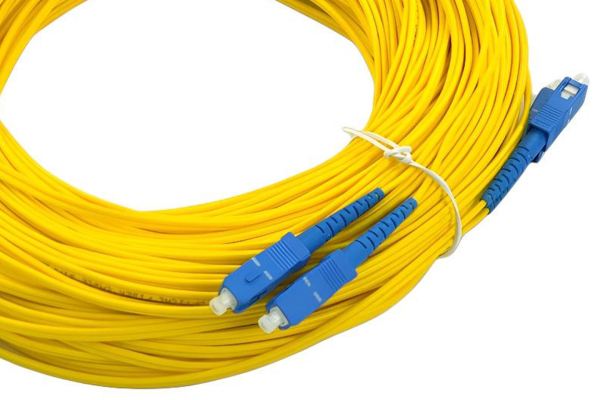

This is a single-mode dual-core fiber jumper with a wire diameter of 2mm and a wire length of 50m. Equipped with ceramic ferrule SC-type connectors and a protective shell, it features low insertion loss, good repeatability, good interchangeability, large return loss, tensile resistance, high performance, and durability. This fiber jumper is more suitable for long-distance optical fiber communication.

The fiber jumper is single-mode which means the fiber enables one type of light mode to be propagated at a time, so it is more suitable for long-distance data transmission. And for the dual-core, it means that there are two single-core fibers.

These optical fiber patch cords can be used in optical fiber communication systems, optical fiber access networks, optical fiber data transmission, and local area networks and other fields.

Features

  • Low insertion loss
  • Good repeatability
  • Good interchangeability
  • Large return loss
  • Tensile resistance, high performance, and durability
  • Specification

  • Specifications: single-mode dual-core 9/125 (G652D)

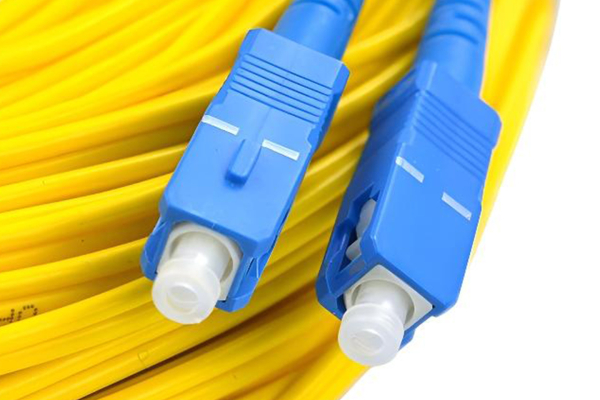

  • Connector: SC-SC (square)
  • Wire Diameter: 2.0mm (0.08 inch)
  • Length: 50m
  • Ferrule: Ceramic
  • Wavelength: 1310nm-1550nm
  • Interchangeability: ≤0.2dB
  • Shell Material: PBT
  • Insertion loss: ≤0.3dB
  • Return loss: ≥50dB
  • Times of Plugging and Unplugging: > 1000 times
  • Bending Radius: 30mm
  • Tensile Strength: 100N
  • Connector Pull Force: 10-20N
  • Working Temperature: -40℃~+80℃
  • Industry Standard: Carrier-Grade
  • Shipping List

  • 2mm SC-SC Single Mode Duplex Fiber Jumper (50m) x1
