Varenr. DFR0471

32x16 RGB LED Matrix Panel (6mm pitch)

301,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

301,25 DKK pr. stk. -
274,00 DKK pr. stk.
Spar 9%
248,00 DKK pr. stk.
Spar 18%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået

  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

TUTORIAL

TUTORIAL

Documents

Product wiki

Introduction

City night is always beautiful. She is just like a charming girl, showing her beauty every time. The colorful light is jewelry, dotted on her dress.

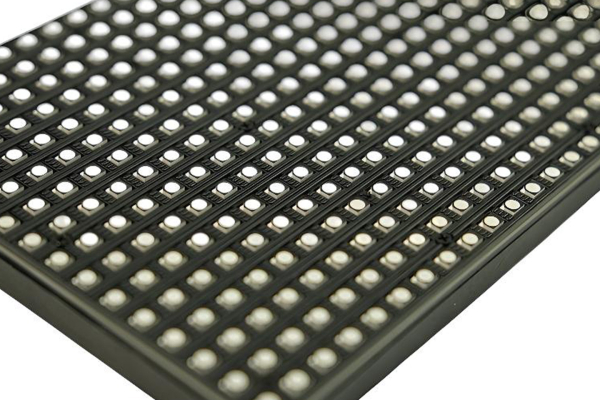

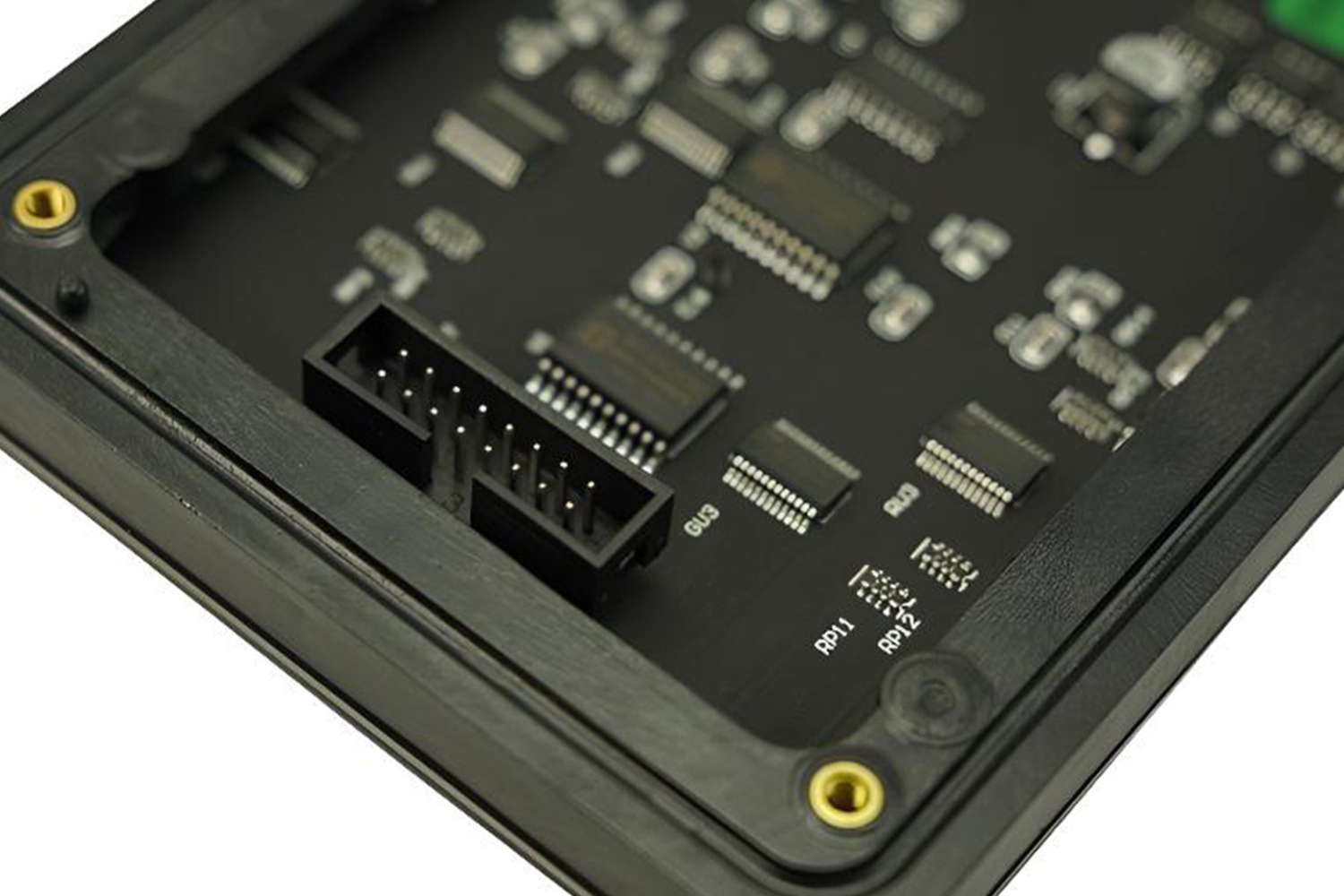

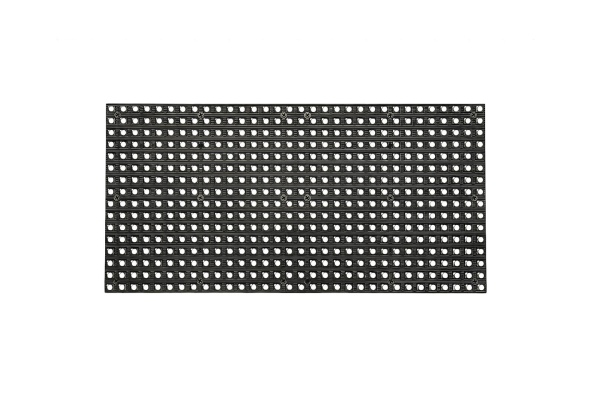

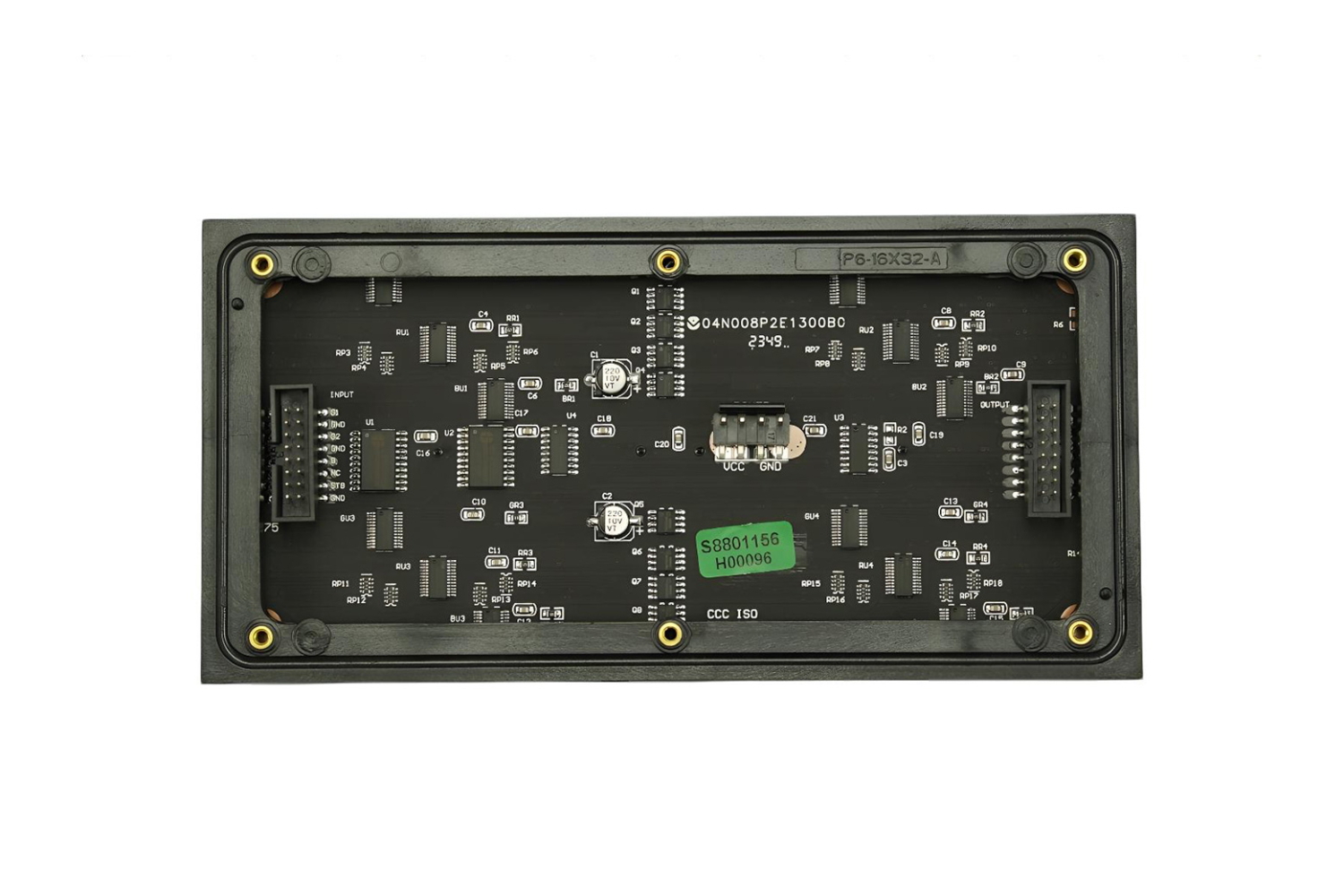

This is a 32x16 RGB LED Matrix Panel, it has 512 full-color RGB LEDs in all. Each LED can be independently addressed and controlled. It requires at least 13 digital GPIOs to control the LED matrix. The led matrix has 2 IDC connectors (DATA_IN, DATA_OUT) on the back, you can cascade multiple panels and make a huge screen together. BUT Arduino doesn’t support this function, its speed is not enough to multiple panel.
What's more, it is a high brightness, long life, no pollution, pure color LED display module. It can be used both indoor and outdoor, safety and stability, the module can not be mutually extrusion deformation, also can be used normally in harsh environment.

Note: This panel needs a 5V@2A power supply. And if you connect 4 or more screen, it needs a high performance controller, such as Mega 2560, Raspberry. .etc.

Specification

  • Operating voltage: DC 5V
  • Average power consumption: <500W/㎡
  • Maxim Power Consumption: <1000w/㎡
  • Pixel: 32x16=512
  • Level of viewing Angle: ≧160°
  • Control mode: Synchronous control
  • Drive mode: 1/8 scan rate
  • Repetition frequency: ≧60Hz
  • White Balance Brightness: ≧1200cd/㎡
  • Refresh frequency : ≧300Hz
  • MTTF: ≧5000 hours
  • Service Life: 75000~100000 hours
  • Pixel pitch: 6mm
  • Dimension: 192mm*96mm/7.56*3.78 inches
  • Thickness: 11mm

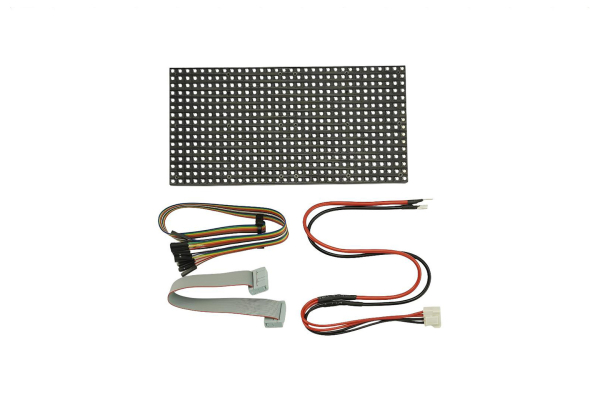

    • Shipping List

  • 32x16 RGB LED Matrix Panel (6mm pitch)x1
  • IDC to XH2.54 cable x1
  • IDC to IDC cable x1
  • Power supply cable x1
