Varenr. DFR0852

4-way Fast Charge Buck Module (Compatible with Raspberry Pi 4B & Jetson Nano)

128,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

128,75 DKK pr. stk. -
113,00 DKK pr. stk.
Spar 12%
99,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Introduction

This 4 USB buck fast-charging module integrates the common 5V charging recognition function, which is compatible with 99% of the mobile phones on the market. Compared with products without charging recognition function, this module can save a lot of charging time by triggering the peak current via fast charging protocol. It features 6~32V input and 3~12V output(default 5V). The voltage can be changed through fast-charging decoy. Multiple fast-charging protocols are supported and all 4 channels work independently.

With steady output, this Fast Charge Module is able to work for a long time without voltage shift. It can be suitable for projects like mobile phone fast charging, Car charging retrofit, solar charger, DIY power source, etc.

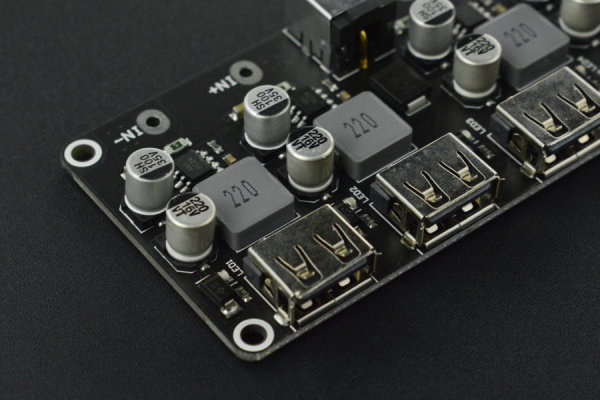

4-way Fast Charge Buck Module

Features

  • 4 USB output
  • Support multiple fast-charging protocols
  • Can be used as charger and power supply
  • Specification

  • Input Voltage Range: 6V-32V
  • Output Voltage: 3-12V, automatically adjust according to the fast-charge protocol (the default output is 5V, input should be 2V higher than output)
  • Output Current: 0-3A
  • Output power: ≤24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
  • Chip Protection: input over-voltage, under-voltage protection, input over-current protection, output over-current, short-circuit protection, over-temperature of the whole machine protection
  • Fast-charging Protocol:

        Support DCP protocol, BC1.2, Apple, Samsung protocol

        Support Huawei fast-charging protocol FCP/SCP, AFC

        Support Spreadtrum fast-charging protocol SFCP

        Support Qualcomm QC2.0 and 3.0

        Support MTKPE1.1/PE2.0

  • Shipping List

  • 4-way Fast Charge Buck Module x1
