Varenr. SEN0170

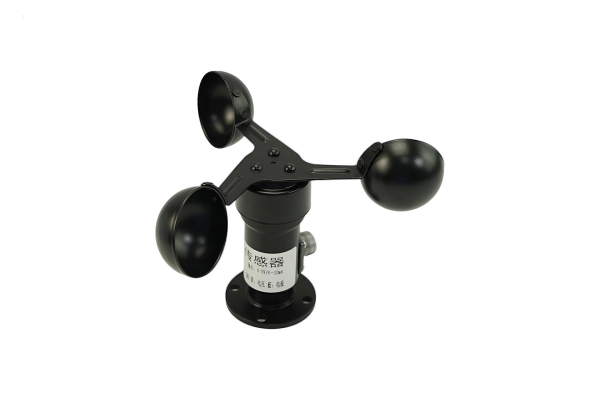

Anemometer Kit 0-5V (IP65 grade)

605,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

605,00 DKK pr. stk. -
601,00 DKK pr. stk.
Spar 1%
597,00 DKK pr. stk.
Spar 1%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

  • Sistema de detección viento fuerte con anemómetro JL-FS2 y arduino de DFRobot

  •

    Documents

    Introduction

    Ever want to build your own weather station? This anemometer is made of shell, wind cups and circuit module. It has built-in photovoltaic module, industrial microcomputer processor, and standard current generator. Made with aluminium alloy, the anemomter is of high strength, weather resistance and corrosion resistance. The millitary quality interface ensures long life of this anemometer, at the same time enhancing the accuracy of wind speed acquisition.

    Together with other components, this anemometer can be widely used in measureing wind in areas such as engineering, railways, docks, power plants, meteorological, cableway, environment study, agriculture, energy monitoring, health study with corresponding signal output.
    With the instructions and sample code, users can easily get wind speed level through voltage signal output (0 to 5v).

    Specification

    • Model:JL-FS2
    • Type:three cups
    • Output signal range:0-5V (Voltage signal)
    • Supply voltage:  DC12-24V
    • Power consumption:Voltage MAX≤0.3W
    • Start wind speed:0.4-0.8m/s
    • Resolution:0.1m/s
    • Effective measurement range:0-30m/s
    • System error:±3%
    • Transmission distance: No more than 8 meters
    • Transmission medium: Cable transmission
    • Connection mode:Three wires
    • Working temperature:-40℃~80℃
    • Wiring map:VCC (Red), GND (Black),Voltage (Yellow), Current (Blue)
    • Weight:1Kg

    Shipping List

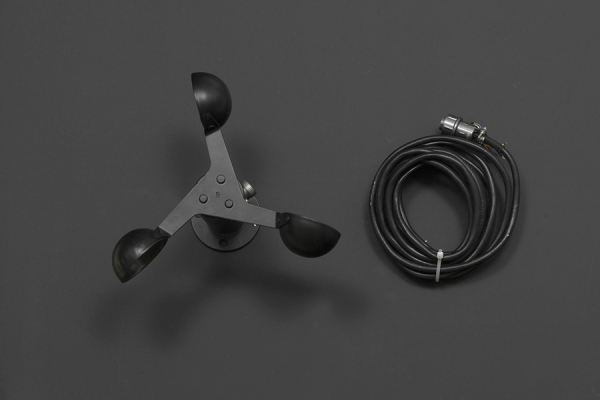

    • Anemometer  x1

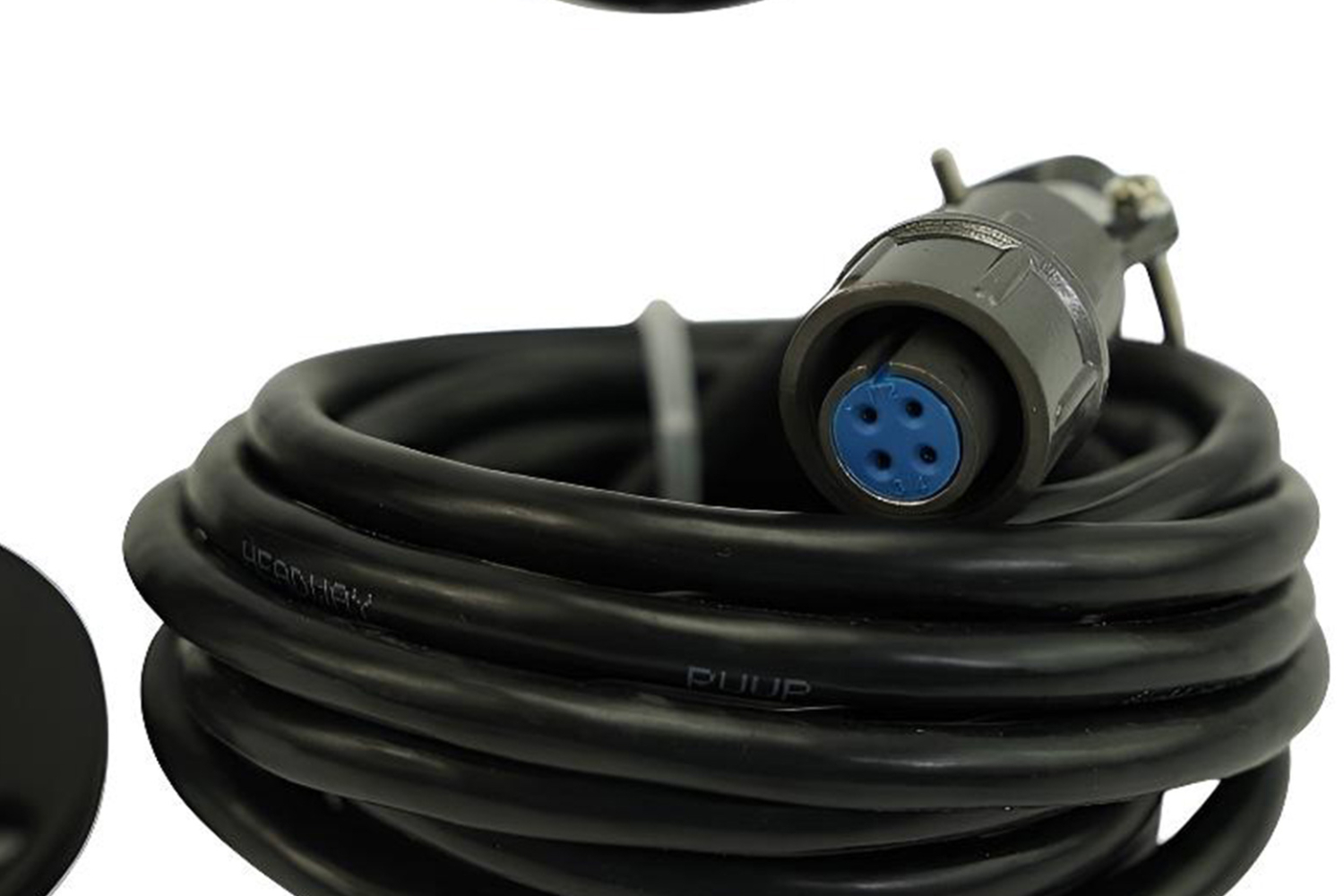

    • Waterproof connector and 3m standard cable x1
    • Screw Kit x1
