Mængderabat

DFRobot

Varenr. DFR0108

Arduino Mega 2560 Rev3

Name: Arduino Mega 2560 Rev3
Brand: DFRobot
SKU: DFR0108
Price: 605.00 DKK
Availability: OutOfStock

605,00

DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	605,00 DKK pr. stk.	-
5 stk.	601,00 DKK pr. stk.	Spar 1%
10 stk.	597,00 DKK pr. stk.	Spar 1%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

Documents

Introduction

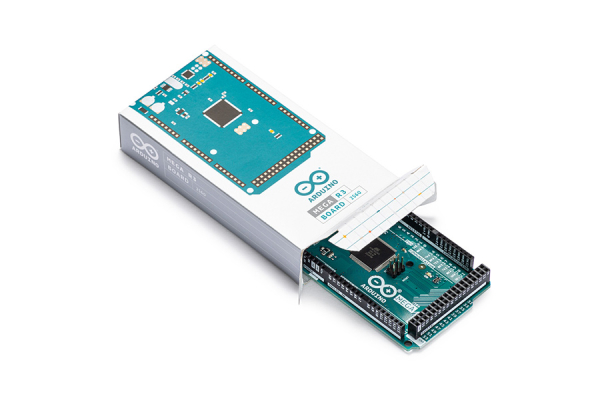

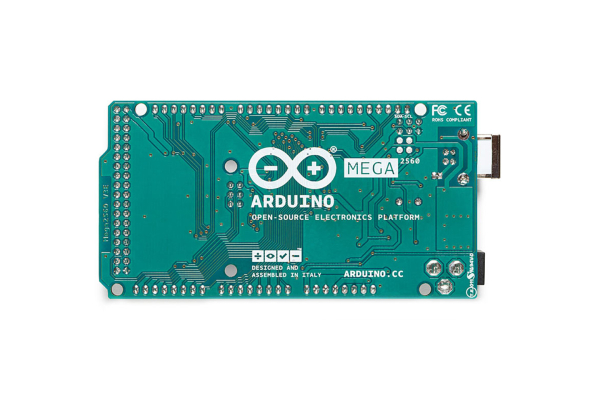

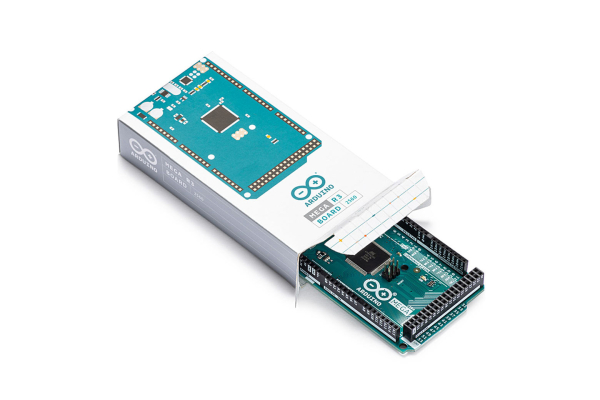

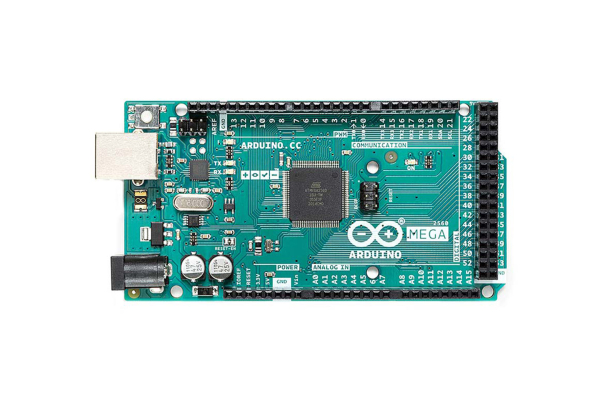

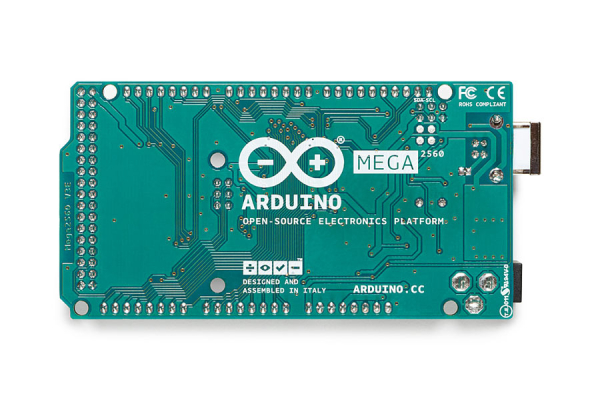

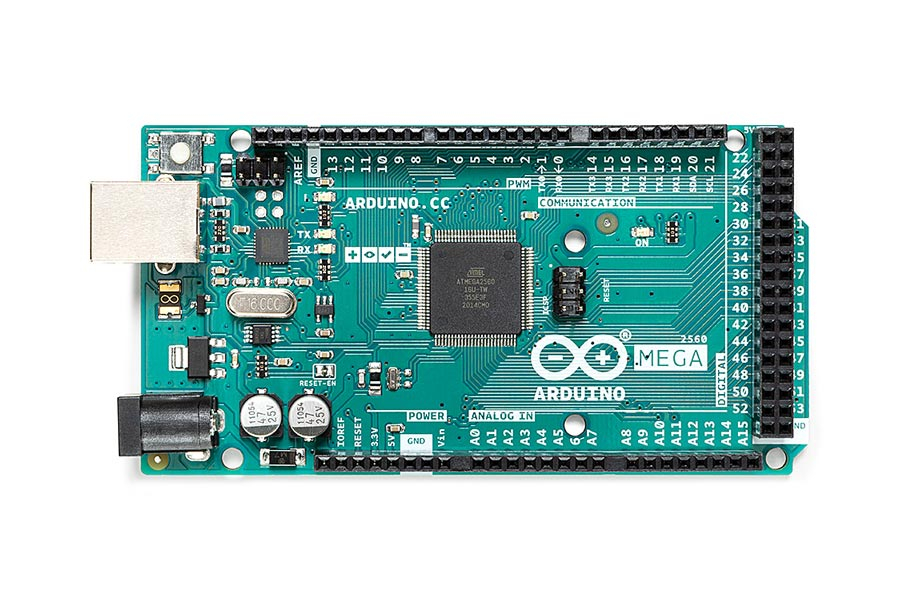

The Arduino Mega 2560 is an arduino microcontroller board based on the ATmega2560 (datasheet). It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.

The arduino Mega 2560 is an update to the Arduino Mega, which it replaces.

Additional features coming with the R3 version are:

ATmega16U2 instead 8U2 as USB-to-Serial converter
1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes
stronger RESET circuit

Arduino Mega 2560 Project 1: IoT Based Fingerprint Attendance System Using Evive

This arduino project will show you how to make a DIY fingerprint attendance system.

Hardware components

Specification

Microcontroller: ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 14 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz

Shipping List

Arduino Mega2560 Rev3 x1
