Name: Beetle ESP32 Microcontroller
Brand: DFRobot
SKU: DFR0575
Price: 158.75 DKK
Availability: OutOfStock

Mængderabat

DFRobot

Varenr. DFR0575

Beetle ESP32 Microcontroller

158,75

DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

1 stk.	158,75 DKK pr. stk.	-
5 stk.	141,00 DKK pr. stk.	Spar 11%
10 stk.	124,00 DKK pr. stk.	Spar 22%

This item is only sold in badges of .

eller

Du skal vælge en variant.

Minimumsmængde nået.

Maksimal mængde nået

Fri fragt ved køb over 999 kr

Til pakkeshop i DK Læs mere.
60 dages returret

Se venligst Handelsbetingelser Læs mere.
Danmarks største udvalg

Over 4000 produktnumre Læs mere.

TUTORIAL

ESP32 MicroPython Tutorials Menu

ESP32 MicroPython DFRobot English

2021-04-01 08:31:08
ESP32 Arduino Tutorials Menu

ESP32 Arduino DFRobot English

2021-04-20 10:10:29
ESP32 cpplinq Tutorials Menu

ESP32 DFRobot English

2021-04-25 02:39:56
ESP32 HTTP server Tutorials Menu

Arduino DFRobot English

2021-04-25 03:48:25
ESP32 Soft AP Tutorials Menu

ESP32 DFRobot English

2021-04-25 05:37:48
ESP32 PS3 and PS4 Tutorials Menu

ESP32 DFRobot English

2021-04-25 05:53:20
ESP32 Espruino Tutorials Menu

ESP32 DFRobot English

2021-04-25 06:07:15
ESP32 Tutorials Menu

ESP32 DFRobot English

2021-04-29 10:18:07
Beetle Controller Selection Guide

DFRobot English

2022-03-30 15:50:04

Documents

Product wiki

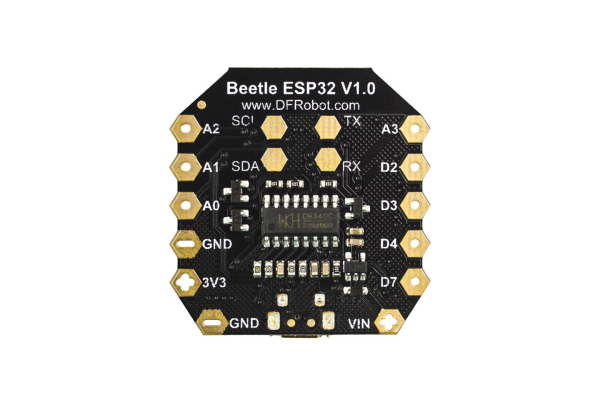

Introduction

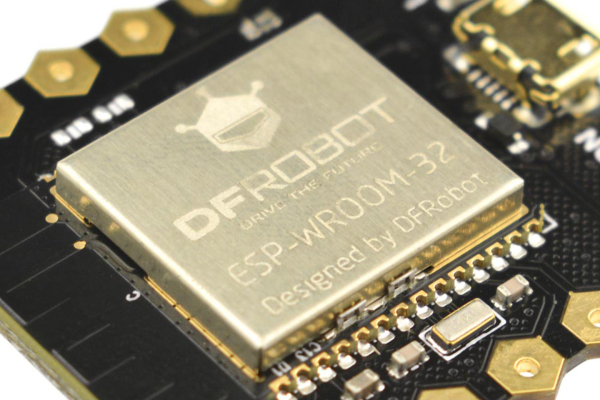

Is FireBeetle-ESP32 too big for your projects? Why not try our newly launched Beetle-ESP32. This Beetle-ESP32 Microcontroller of 1.38”×1.34”small size is a simplified version of FireBeetle-ESP32 and specially designed for electronic engineering fans and DIY lovers. It is equipped with 4 analog ports, 4 digital ports, UART and I2C interfaces, which would be a perfect replacement of FireBeetle-ESP32.

JavaScript display


Name	WiDo	Beetle ESP32	FireBeetle ESP8266	FireBeetle ESP32
SKU	DFR0321	DFR0575	DFR0489	DFR0478
Microcontroller	CC3000	ESP32	ESP8266	ESP32
Power supply interface	USB or DC2.1	USB	USB or 3.7V Lipo	USB or 3.7V Lipo
USB Powered or External (V)	7 - 12	3.5 - 6.5	3.3 - 5.0	3.3 - 5.0
Operating Voltage (V)	5V	3.3V	3.3V	3.3V
CPU Frequency (MHz)	16	240	160	240
Flash(M)	-	16	16	16
SRAM(KB)	-	520	50	520
Analog pins	6	4	1	5
Digital pins	14	4	10	10
Wi-Fi protocol	802.11b/g	802.11b/g/n	802.11b/g/n	802.11b/g/n
Frequency range	2.4 GHz	2.4 - 2.5 GHz	2.4 - 2.5 GHz	2.4 - 2.5 GHz
UART	1	1	1	1
I2C	1	1	1	1
I2S	1	1	1	1
SPI	1	1	1	1
Compatible IDE	Arduino IDE 1.6+	Arduino IDE 1.6+	Arduino IDE 1.6+	Arduino IDE 1.6+
Download Mode	Micro USB	Micro USB	Micro USB	Micro USB
Arduino UNO Compatible	√	×	×	×
Lipo Charger Support	×	×	√	√
Dimension(mm)	75*54	35*34	58*29	58*29
Weight (g)	30 g	12 g	24 g	24 g
Key Features	On board 2.4G PCB Antenna and SD card slot.	Integrate a Dual-Core ESP-WROOM-32 module. Support MCU and Wi-Fi &Bluetooth dual-mode communication. V shaped gilded I/O interface, can be sewn on clothes directly.	Arduino、RTOS、microPython Programming Support. Built-in 32-bit Tensilica L106 MCU and 10-bit ADC.	Mobile BLE APP Connection Support. Two way H-bridged Motor Driver with 2A maximum current and wireless socket.

You may also check Bluetooth microcontrollor selection guide to get more information.

This microcontroller enables users to directly burn programs via the on-board USB interface. Meanwhile, Bluetooth and WIFI are integrated in the microcontroller for supporting more applications. With this Beetle-ESP32, you can easily build up your dreaming project.

Installing the ESP32 Board in Arduino IDE - DFRobot

Features

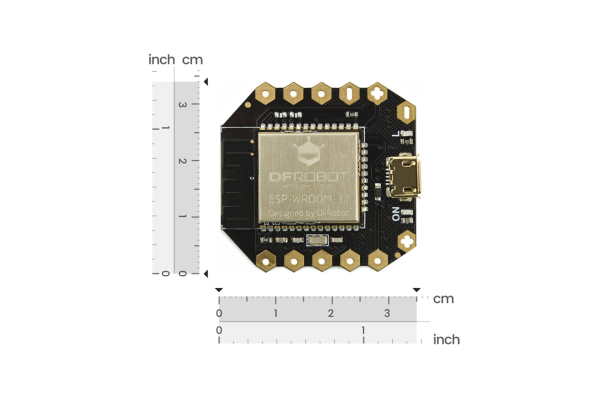

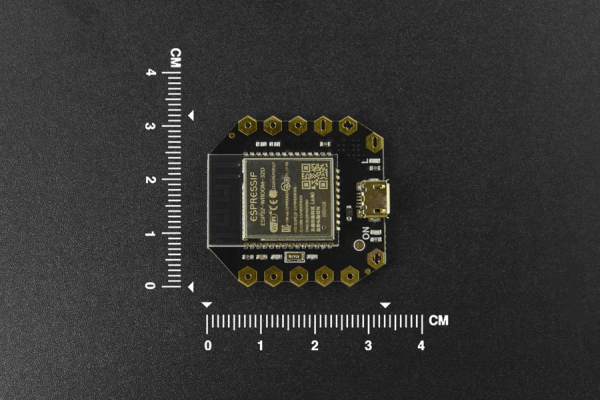

A small size of 35mm×34mm

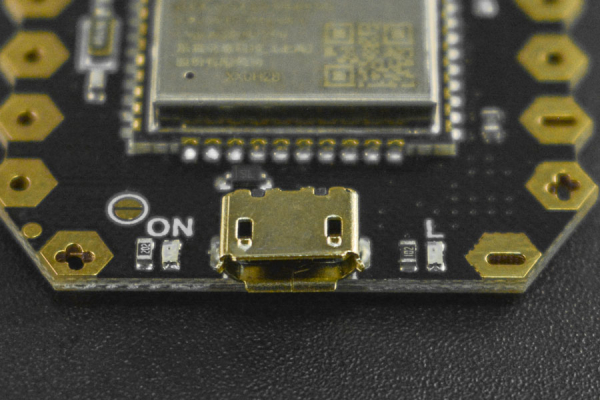

Enable users to directly download and debug programs through Micro USB, free from programmer.

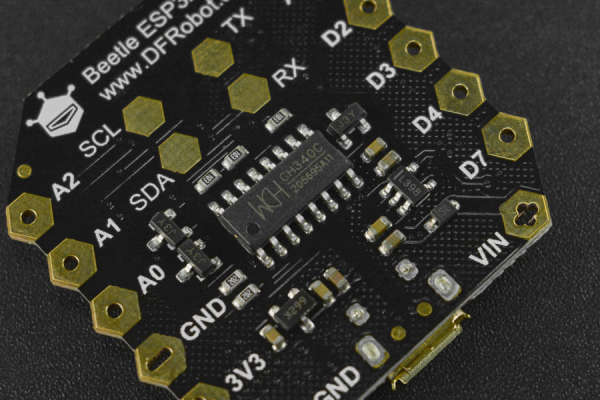

Large-scale I/O ports with gold plating, easy to screw wire on it or to sew the board on the clothes with wires, no need to solder.
A group of gold plating power interfaces of honeycomb type, convenient to use.
Integrate WIFI and Bluetooth

Specification

USB Supply Voltage: 5.0V
VIN Supply Voltage: DC 3.5-6.5V
Processor: Tensilica LX6 dual-core processor (One for high speed connection; one for independent programing)
Frequency: 240MHz
SRAM: 520KB
Flash: 16Mbit
Wi-Fi Standard: FCC/CE/TELEC/KCC
Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r（802.11n, high speed can reach to 150 Mbps), converge A-MPDU and A-MSDU, supporting 0.4us protecting interval.
Frequency Range: 2.4~2.5GHz
Bluetooth Protocol: comply with BR/EDR/BLE standard of Bluetooth v4.2.
On-chip Clock: 40MHz crystal and 32.768 KHz crystal

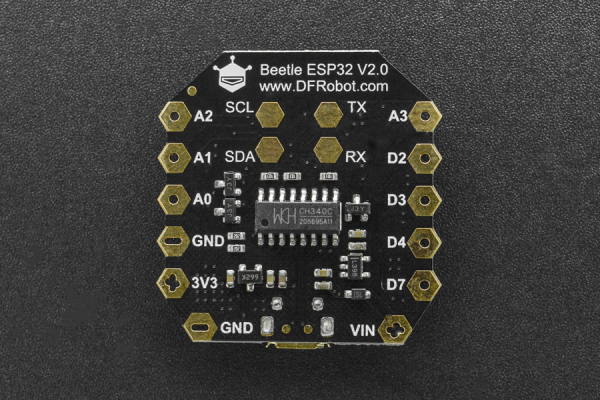

Digital Interface: D2, D3, D4, D7
Analog Interface: A0, A1, A2, A3
I2C: 1
Serial Port: 1
Dimension: 35×34mm/1.38×1.34"

Shipping List

Beetle ESP32 Microcontroller x1
