1. Project: Make a Home-made Network Clock with ESP32-E
Introduction: This production will be very simple, getting the time from the internet via the wifi of the ESP32, and then you need to find a screen that displays the time. There are many options for the screen, LCD1602 or LED monochrome dot matrix for splicing. I accidentally saw a VFD fluorescent screen before, it was green-blue when it was lit, and it glowed with white light, which makes the whole screen a mottled beauty. So, I am going to use it here.
2. Project: DIY 3D Printed IoT Weather Station Using an ESP32
Introduction: Today we’re going to be building a wireless outdoor weather station that takes temperature, humidity, barometric pressure, light and wind speed readings, and uses WiFi to post the data to the cloud which can then be accessed through a Thingspeak dashboard.

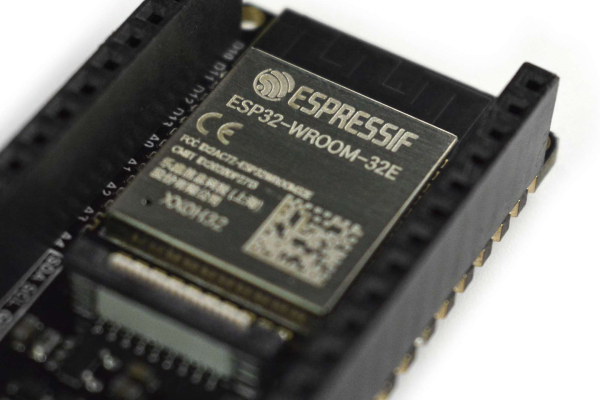

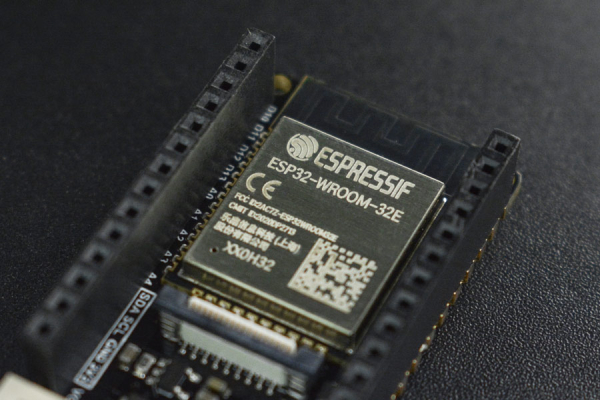

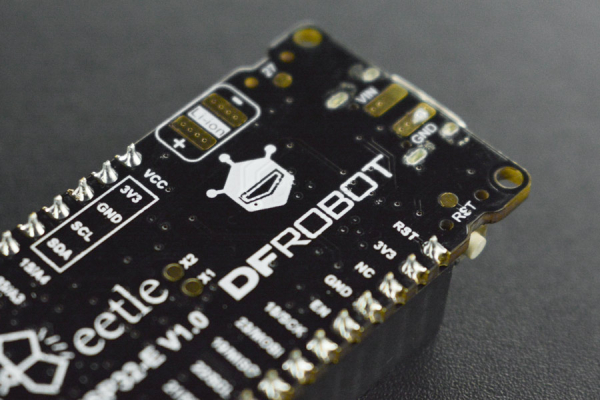

FireBeetle 2 ESP32-E, specially designed for IoT, is an ESP-WROOM-32E-based main controller board with dual-core chips.
DFR0654-F supports WiFi and Bluetooth dual-mode communication and features a small size, ultra-low power consumption, onboard charging circuit, and easy-to-use interface, which can be conveniently used for smart home IoT, industrial IoT applications, wearable devices, and so on. You can easily create your own IoT smart home system when connecting it with an IoT platform like IFTTT.
FireBeetle 2 ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming very soon. We provide you with detailed online tutorials and application cases, and there are thousands of sensors with welding-free Gravity interfaces and actuators to help you get started easily. Besides, the stamp hole design makes it able to be easily embedded in your PCB, greatly saving your costs and time to build and test a prototype.

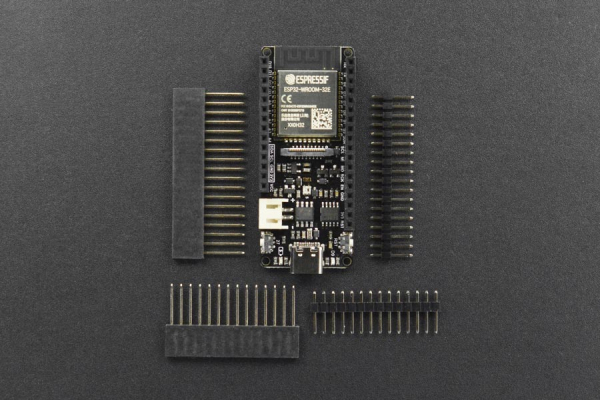

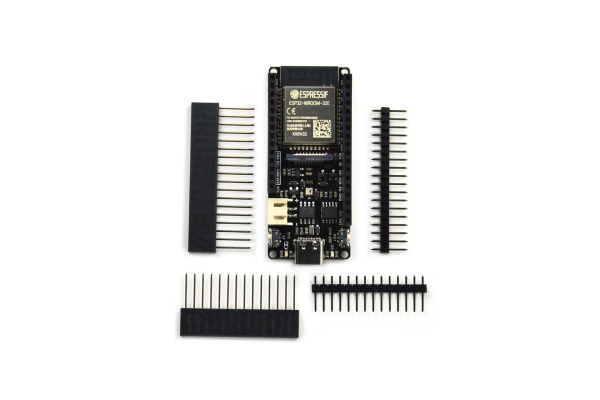

We sell two versions of Firebeetle 2 ESP32-E, unsoldered version and with header version. If you want to plug the Firebeetle shield into your Firebeetle mainboard, the Firebeetle 2 Board ESP32-E(Pre-soldered) is better for you.
Note: FireBeetle 2 and FireBeetle pins and sizes are not compatible, and neither are the expansion boards.

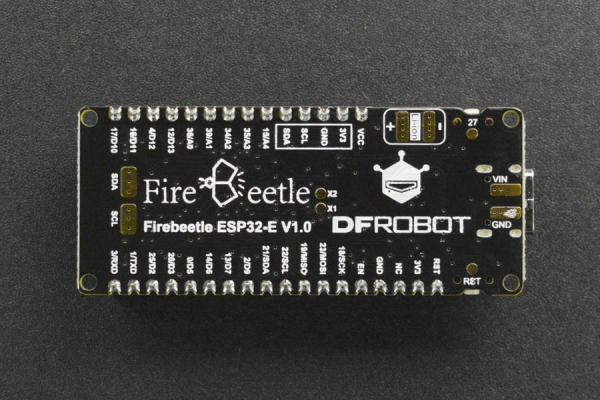

Figure 1. Board Overview

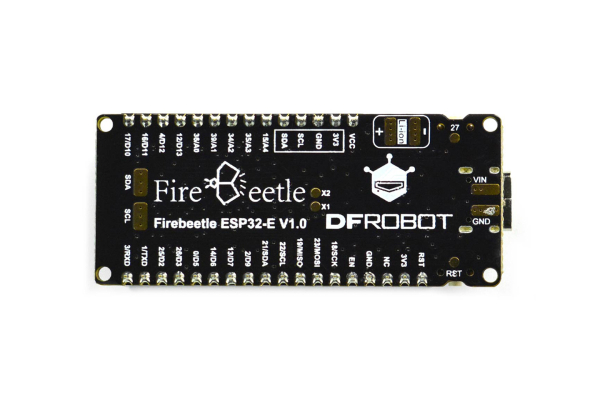

Figure 2.Pinout
What's the difference between FireBeetle ESP32 and FireBeetle 2 ESP32-E
|
|
|
|
|
Name |
||
|
SKU |
DFR0478 |
DFR0654 |
|
Microcontroller |
ECO |
ECO V3 |
|
Power supply interface |
Micro USB |
USB-C |
|
USB to UART |
CH340C |
CH340K |
|
Operating Voltage (V) |
3.3V |
3.3V |
|
Flash(KB) |
16MB |
4MB |
|
SRAM(KB) |
520k |
520k |
|
Analog pins |
5 |
5 |
|
Digital pins |
10 |
10 |
|
UART |
1 |
1 |
|
I2C |
1 |
1 |
|
SPI |
1 |
1 |
|
side key |
× |
√ |
|
RGB_LED |
× |
√ |
|
DisplayPort（GDI） |
× |
√ |
|
stamp holes |
× |
√ |
|
fool-proof |
× |
√ |
|
Silkscreen |
underside |
two-sided |
|
Mount Hole Size（mm） |
3.5 |
2 |
|

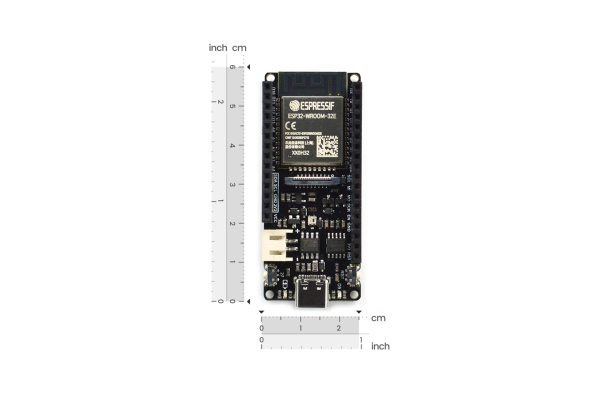

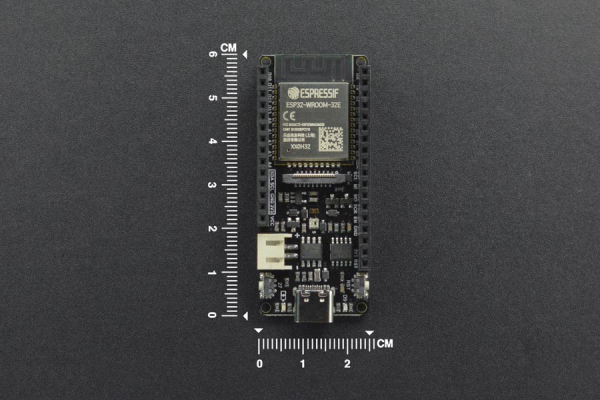

Dimension(mm) |
29*58 |
25.4 × 60 |
|
Weight (g) |
24 g |
23g |
Espressif has recently released one wafer-level change on ESP32 Series of products (ECO V3). Below are the main design changes in ECO V3 Series of chips:
1. PSRAM Cache Bug Fix: Fixed “When the CPU accesses the external SRAM in a certain sequence, read & write errors can occur”.
2. Fixed “When each CPU reads certain different address spaces simultaneously, a read error can occur.”
3. Optimized 32.768 KHz crystal oscillator stability, the issue was reported by the client that there is a low probability that under ECO V1 hardware, the 32.768 KHz crystal oscillator couldn’t start properly.
4. Fixed Fault injection issues regarding secure boot and flash encryption are fixed.
5. Improvement: Changed the minimum baud rate supported by the CAN module from 25 kHz to 12.5 kHz.
